(B01-50) - HYDRAULIC CYLINDER (ELEVATOR LIFT), UP TO AND INCLUDING

Запчасти Case IH 7700 (B01-50) - HYDRAULIC CYLINDER (ELEVATOR LIFT), UP TO AND INCLUDING Hydraulic Components & Circuits

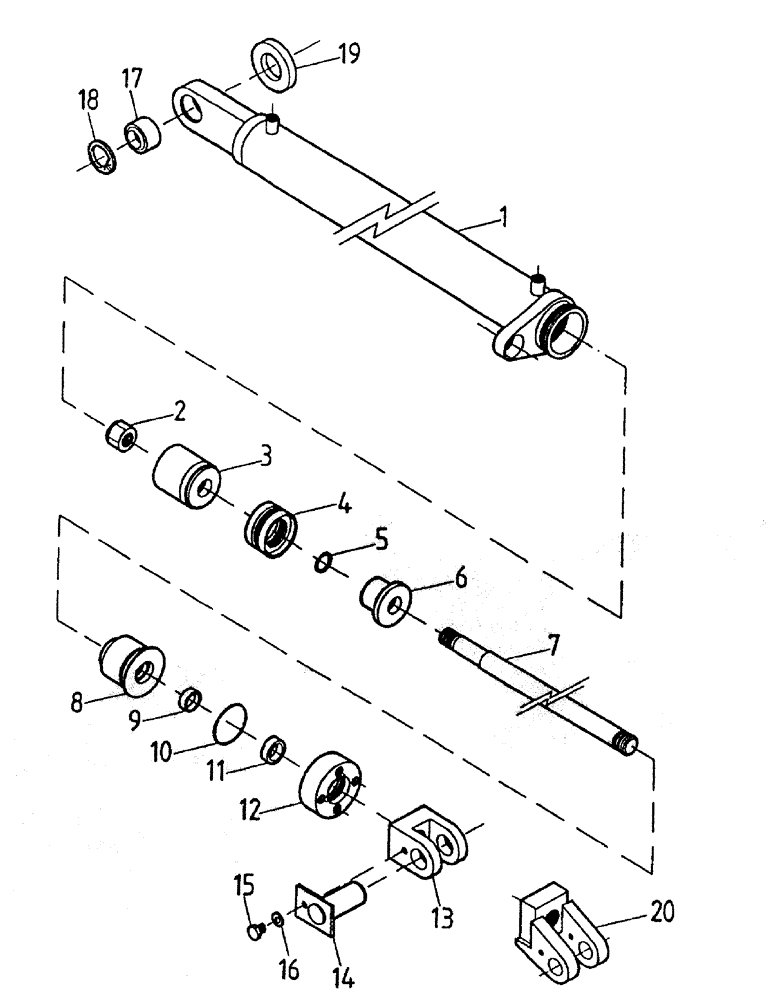

Схема запчастей Case IH 7700 - (B01-50) - HYDRAULIC CYLINDER (ELEVATOR LIFT), UP TO AND INCLUDING Hydraulic Components & Circuits
3
18
19
17
1
13
7
14
12
20
11
9
2
8
6
16
15
10
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87220021

CYLINDER,63.5mm Bore Dia

BARREL (LH)

1шт.

1

87220022

CYLINDER,63.5mm Bore Dia

BARREL (RH)

1шт.

2

00607933

LOCK NUT

1шт.

3

87233363

RETAINER

RETAINER

1шт.

4

00100716

OIL SEAL

1шт.

5

00100019

O-RING

1шт.

6

86787800

PISTON

1шт.

7

87233151

CYLINDER,31.75mm OD x 1245mm L

ROD

1шт.

8

87214803

CYLINDER HEAD

1шт.

9

00100758

OIL SEAL

1шт.

10

00100106

O-RING

1шт.

11

00100675

SEAL

WIPER

1шт.

12

86930200

NUT

1шт.

13

86786800

CLEVIS

(rotary chopper)

1шт.

14

86788000

PIN,25.4mm OD x 75mm L

1шт.

15

00601495

BOLT

1шт.

16

00605827

WASHER

1шт.

17

00141400

BEARING

1шт.

18

CI047000

CIRCLIP

1шт.

19

87231581

SPACER

1шт.

20

87234677

CLEVIS

(swinging knife)

1шт.

21

87214805

SEAL KIT

1шт.

22

87220019

CYLINDER ASSY.

(LH) (rotary chopper)

1шт.

23

87220020

CYLINDER,Double Acting, 31.75mm Rod

ASSEMBLY (RH) (rotary chopper)

1шт.

24

87234680

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 845mm Stroke

ASSEMBLY (LH) (swinging knife)

1шт.

25

87234681

CYLINDER ASSY.

ASSEMBLY (RH) (swinging knife)

1шт.
