(B06-25) - HYDRAULIC CIRCUIT (TOPPER AND CROPDIVIDER 7700), UP TO AND

Запчасти Case IH 7700 (B06-25) - HYDRAULIC CIRCUIT (TOPPER AND CROPDIVIDER 7700), UP TO AND Hydraulic Components & Circuits

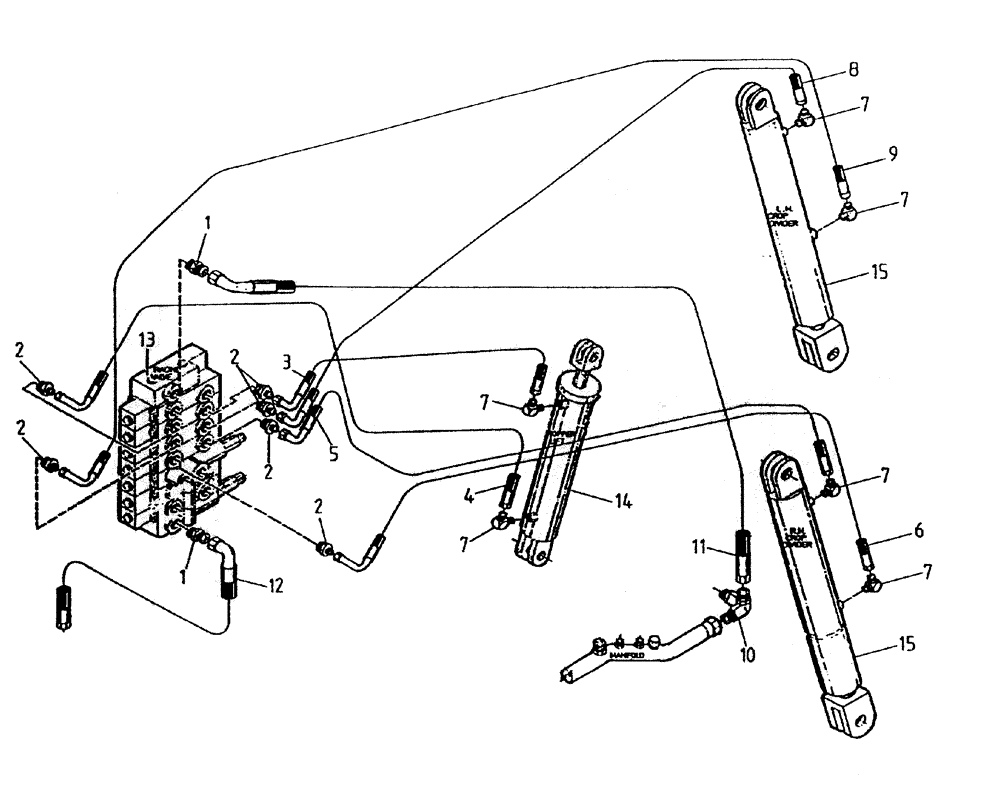

Схема запчастей Case IH 7700 - (B06-25) - HYDRAULIC CIRCUIT (TOPPER AND CROPDIVIDER 7700), UP TO AND Hydraulic Components & Circuits
1
13
9
6
7
11
4
7
2
12
8
14
3
7
2
7
5
2
2
15
7
10
1
7
15
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

00400228

HYD CONNECTOR

NIPPLE

2шт.

2

00400074

HYD CONNECTOR

NIPPLE

6шт.

3

87216749

HOSE ASSY.

1шт.

4

87234083

HOSE

1шт.

5

87222416

HYDRAULIC HOSE

1шт.

6

87216961

HOSE

HOSE

1шт.

7

00400189

HYD CONNECTOR

ELBOW

6шт.

8

82725000

HOSE ASSY.,6.35mm ID x 2720mm L, SAE 100R17

1шт.

9

87038600

HOSE,6.35mm ID x 2420mm L, SAE 100R17

HOSE

1шт.

10

86310816

HYD CONNECTOR

ADAPTOR

1шт.

11

86300987

HOSE ASSY.

1шт.

12

83129700

HOSE

HOSE

1шт.

13

HYDRAULIC RACINE VALVE (Refer Figure B04-20)

1шт.

14

HYDRAULIC CYLINDER (Refer Figure B01-00)

1шт.

15

HYDRAULIC CYLINDER (Refer Figure B01-05)

1шт.
