(C02-35) - EXHAUST (KOMATSU 108/6CT/L10), UP TO AND INCLUDING SERIAL #7907

Запчасти Case IH 7700 (C02-35) - EXHAUST (KOMATSU 108/6CT/L10), UP TO AND INCLUDING SERIAL #7907 Engine & Engine Attachments

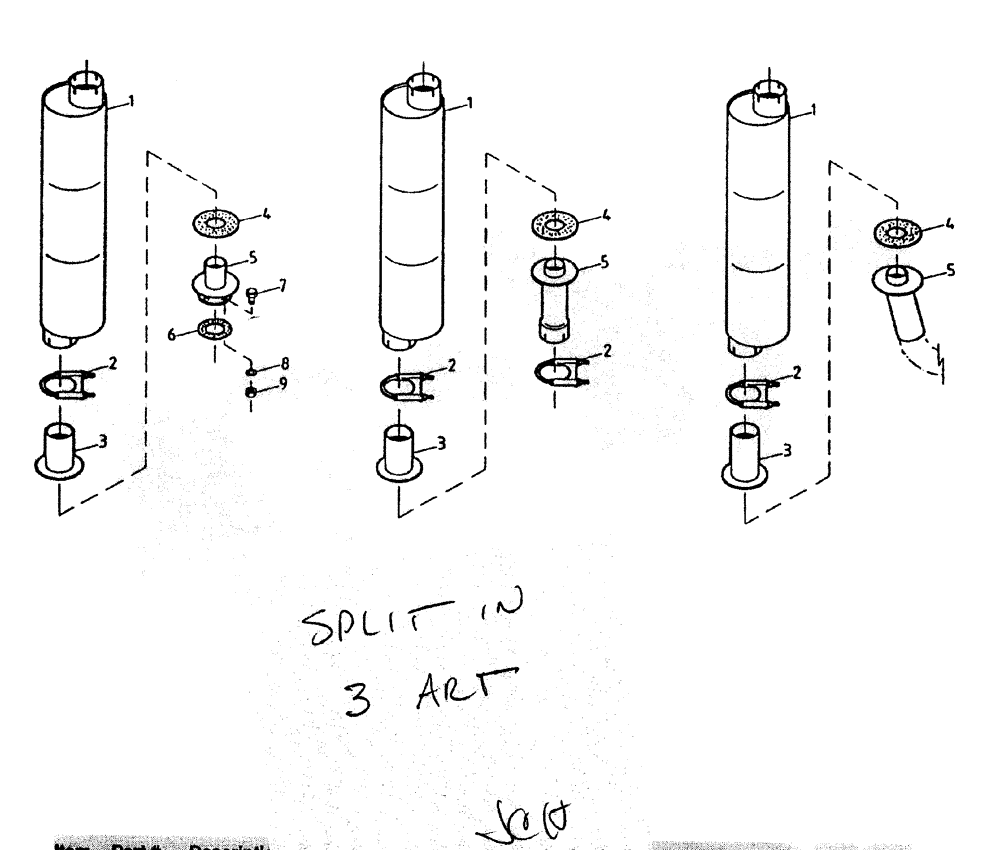

Схема запчастей Case IH 7700 - (C02-35) - EXHAUST (KOMATSU 108/6CT/L10), UP TO AND INCLUDING SERIAL #7907 Engine & Engine Attachments
6
3
2
4
2
1
2
4
5
2
9
3
4
5
8
1
5
1
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

00136929

MUFFLER

Komatsu 108

1шт.

2

00131539

CLAMP

Komatsu 108

1шт.

3

86976800

SEAL

flange, Komatsu 108

1шт.

4

87213334

GASKET

Komatsu 108

1шт.

5

86979400

EXHAUST SYSTEM PIPE

ADAPTOR, Komatsu 108

1шт.

6

87213333

GASKET

Komatsu 108

1шт.

7

FM110020

BOLT

Komatsu 108

4шт.

8

WB100000

WASHER

Komatsu 108

4шт.

9

NA110000

NUT

Komatsu 108

4шт.

1

00136929

MUFFLER

6CT Cummins

1шт.

2

00131539

CLAMP

6CT Cummins

2шт.

3

86976800

SEAL

flange, 6CT Cummins

1шт.

4

87235671

GASKET,2mm Thk

6CT Cummins

1шт.

5

87233539

EXTENSION

ADAPTOR, 6CT Cummins

1шт.

1

00136929

MUFFLER

L10 Cummins

1шт.

2

00131539

CLAMP

L10 Cummins

1шт.

3

87234674

PIPE FITTING

SEALING FLANGE, L10 Cummins

1шт.

4

87235671

GASKET,2mm Thk

L10 Cummins

1шт.

5

87230218

ASSEMBLY

ADAPTOR, L10 Cummins

1шт.
