(B08[02]) - HYDRAULIC CIRCUIT {Adjustable PKD/Finned/1st & 2nd Floating Rollers}

Запчасти Case IH 7700 (B08[02]) - HYDRAULIC CIRCUIT {Adjustable PKD/Finned/1st & 2nd Floating Rollers} Hydraulic Components & Circuits

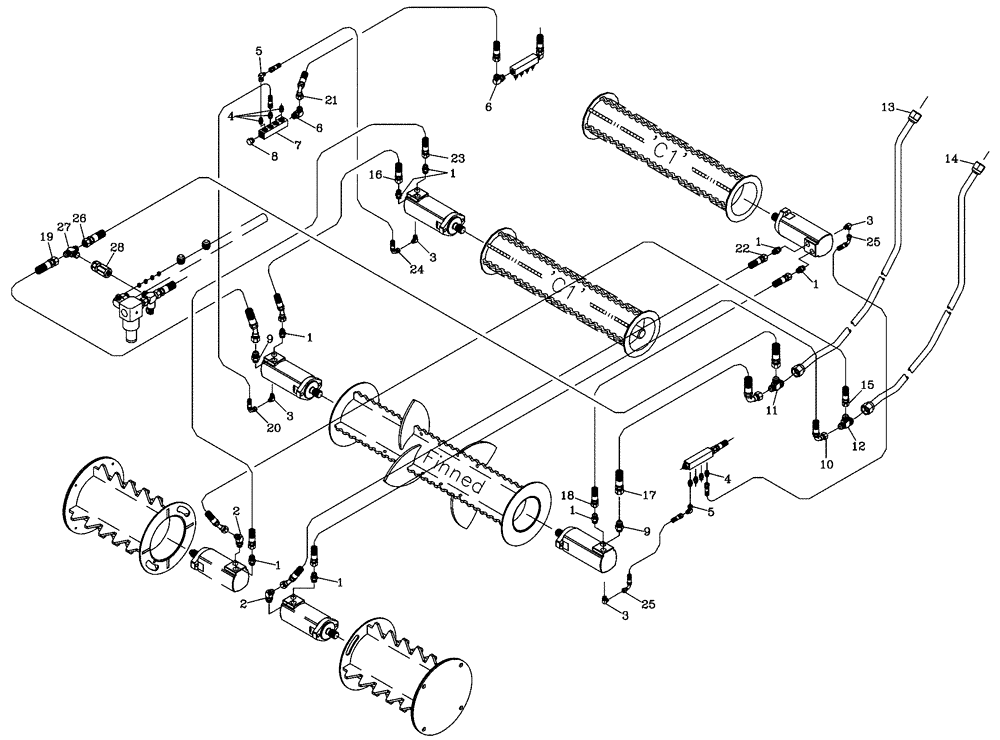

Схема запчастей Case IH 7700 - (B08[02]) - HYDRAULIC CIRCUIT {Adjustable PKD/Finned/1st & 2nd Floating Rollers} Hydraulic Components & Circuits
1
8
6
27
28
23
3
1
5
21
4
6
26
5
9
3
1
14
1
13
19
7
17
4
3
9
2
1
1
12
11
24
16
25
1
15
18
25
10
22
2
3
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

00400228

HYD CONNECTOR

Nipple

8шт.

2

00400242

HYD CONNECTOR

Nipple

2шт.

3

00405242

HYD CONNECTOR

Elbow

4шт.

4

00400223

HYD CONNECTOR

Nipple

5шт.

5

00402879

HYD CONNECTOR

Elbow

2шт.

6

00407832

HYD CONNECTOR

Elbow

1шт.

7

00409953

RETURN PIPE

Manifold

1шт.

8

00400106

HYD CONNECTOR

Plug

1шт.

9

00400229

HYD CONNECTOR

Nipple

3шт.

10

86303383

HYDRAULIC HOSE

1шт.

11

87226946

TEE

TEE

1шт.

12

86983880

TEE

TEE

1шт.

13

442993A1

TUBE

TUBE

1шт.

14

442994A1

TUBE

TUBE

1шт.

15

87423025

HOSE

HOSE

1шт.

16

412121A1

HOSE

HOSE

1шт.

17

87255572

HOSE,19.05mm ID x 1950mm L, SAE 100R16

HOSE

1шт.

18

399615A1

HOSE

1шт.

19

86308610

HOSE ASSY.

1шт.

20

87231900

HOSE ASSY.

HOSE

1шт.

21

86314817

HOSE,12.7mm ID x 1070mm L, SAE 100R16

HOSE

1шт.

22

87423023

HOSE

HOSE

1шт.

23

87423028

HOSE

HOSE

1шт.

24

82743200

HOSE ASSY.

1шт.

25

412149A1

HOSE,6.35mm ID x 810mm L

HOSE

2шт.

26

86313007

HOSE ASSY.

HOSE

1шт.

27

00407003

TEE

1шт.

28

HYDRAULIC CHECK VALVE 3/4"

1шт.

refer to figure B05.16

1шт.
