Запчасти Case IH 7700 (C07[03]) - SENDERS and SWITCHES {M11/QSM11} Engine & Engine Attachments

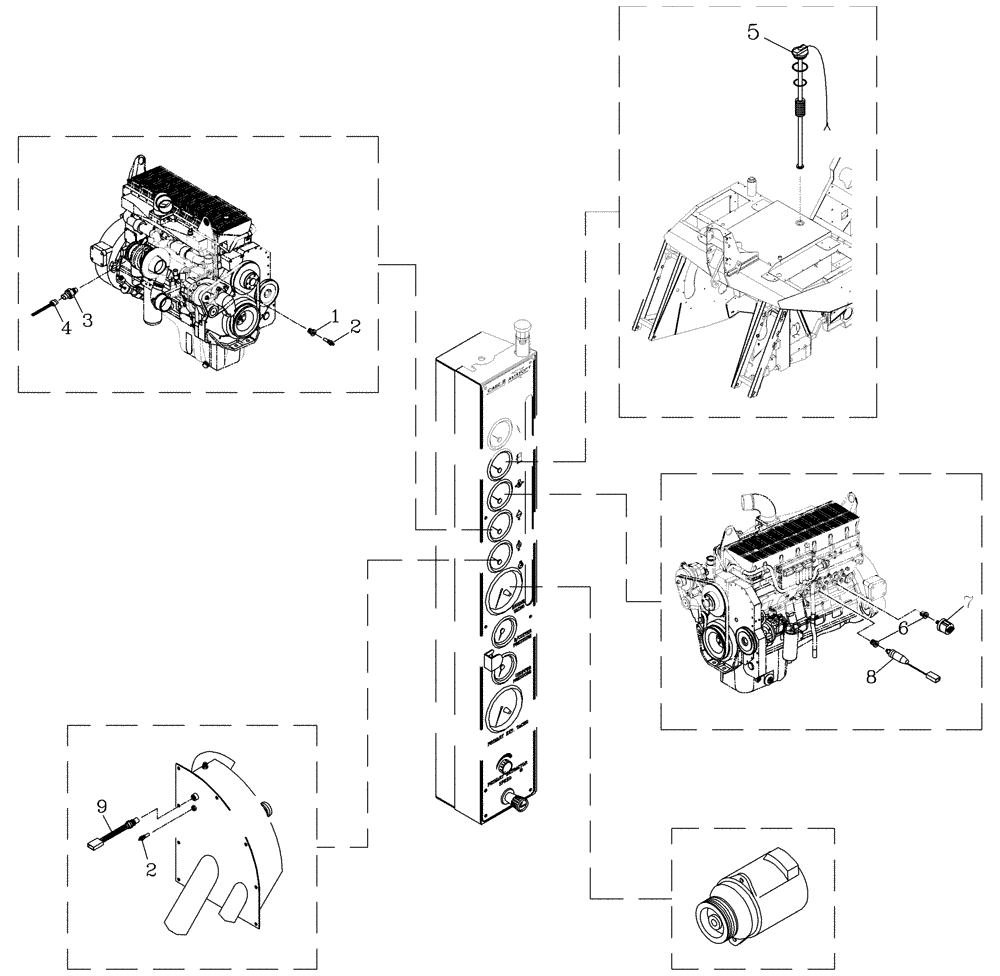

![Схема запчастей Case IH 7700 - (C07[03]) - SENDERS and SWITCHES {M11/QSM11} Engine & Engine Attachments](https://www.partsell.ru/storage/images/caseih/447353.png)
7
5
8
6
1
2
4
9
3
2
1
00400217
HYD CONNECTOR
Bush
1шт.
2
00134483
SENDER UNIT
SENDER Water,Oil
2шт.
3
00180686
SWITCH
Water
1шт.
4
00180687
ADAPTER
Harness
1шт.
5
87412622
SENDER UNIT
SENDER SENDER [Fuel]
1шт.
6
00400216
HYD CONNECTOR
Bush
2шт.
7
00134484
SENDER UNIT
SENDER Oil
1шт.
8
00131373
SWITCH
Oil
1шт.
9
00198136
SWITCH
Oil
1шт.
