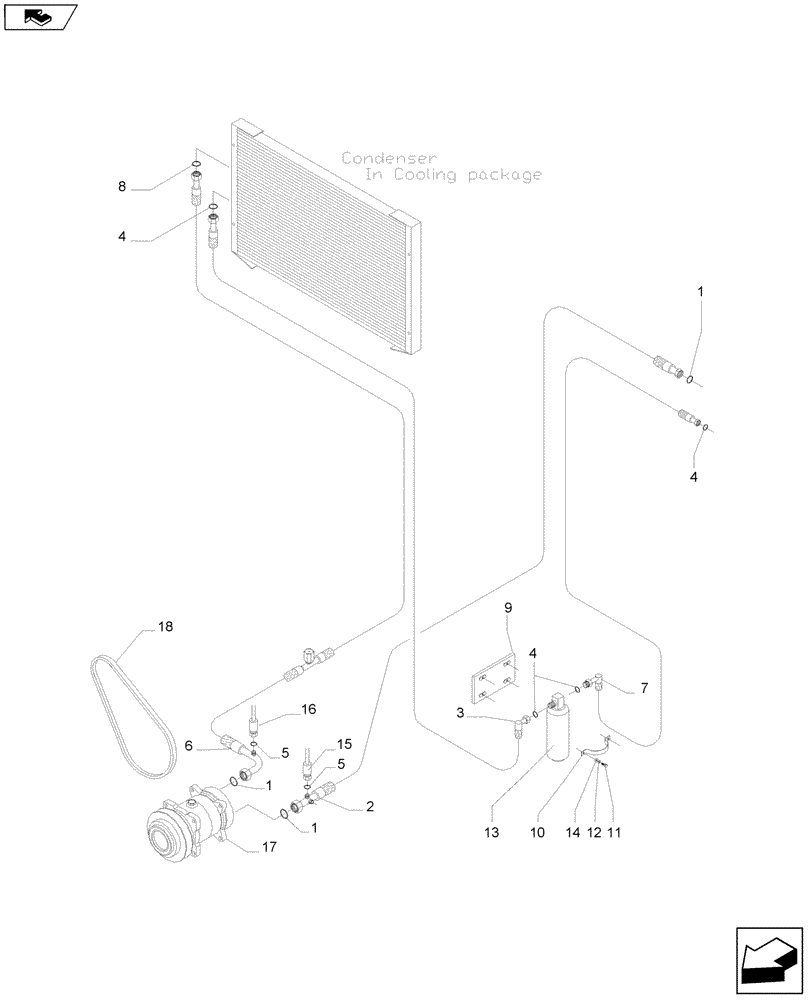

Запчасти Case IH A8800 (50.200.BY[02]) - AIR CONDITIONER CIRCUIT (SCANIA DC9) (50) - CAB CLIMATE CONTROL

1

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

3шт.

2

84237583

HOSE

1шт.

3

87696836

HOSE,7.94mm ID x 4445mm L

1шт.

4

9827060

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

4шт.

5

82007847

O-RING,1.8mm Thk x 6.7mm ID

2шт.

6

84237584

HOSE

1шт.

7

84237582

HOSE,7.94mm ID x 1910mm L

1шт.

8

9827058

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

9

87380198

STEEL PLATE

1шт.

10

87382996

COLLAR CLAMP

1шт.

11

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

12

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

2шт.

13

86992915

RECEIVER-DRYER

1шт.

14

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

15

284272A3

SWITCH, A/C LOW PRES

1шт.

16

87000227

SWITCH, A/C HIGH PRE

1шт.

17

86993462

AIRCOND. COMPRESSOR

Engine DC9 - 12V

1шт.

86993462R

REMAN-COMPRESSOR

A8000 (TYRE MACHINE), A8800 (TRACK MACHINE) all (BRAZIL) - ASN 880001 (4/09-)

1шт.

86993462C

CORE-COMPRESSOR

Return Number

1шт.

48017123R

REMAN-A/C COMP KIT

Reman Kit -- A/C Compressor, Receiver-Dryer, Valve

1шт.

48017123C

REMAN-A/C COMP KIT

Return Number

1шт.

18

87608501

BELT, TRANSMISSION,12.70 mm W

1шт.
