1
84589947
SHAFT
1шт.
2
47460041
HOLDER
2шт.
3
47460040
HOLDER
4шт.
4
140021
WASHER,22mm ID x 37mm OD x 3mm Thk
12шт.
5
86639168
BOLT,Hex, M20 x 250mm, Cl 10.9
4шт.
6
9843590
BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd
4шт.
7
47628023
SHAFT
2шт.
8
12577521
NUT,M12 x 1.75
4шт.
9
47610826
SUPPORT
RH, Incl 36
1шт.
9
47610827
SUPPORT
LH, Incl 36
1шт.
10
47609423
BUSHING
8шт.
11
47610831
TRAY
Incl 10
2шт.
12
84300377
BELLCRANK
TO 2015
2шт.
13
825-1410
NUT,M10, Cl 8
2шт.
14
614-10025
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8
2шт.
15
47609393
SUPPORT
2шт.
16
982023
CLEVIS
Incl 20
2шт.
17
47610834
TRAY
Incl 10, TO 2015
2шт.
18
138722
SHIM
18шт.
19
47596806
PIN
2шт.
20
47530874
CHAIN
2шт.
21
87230605
PIN,25.4mm OD x 92mm L
2шт.
22
86588450
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
4шт.
23
86977726
BOLT,Hex, M6 x 12mm, Cl 8.8
4шт.
24
86625255
WASHER,13.3mm ID x 24.5mm OD x 3mm Thk
16шт.
25
300389
BOLT,M12 x 1.75 x 35mm, Cl 8.8
8шт.
26
412123
LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk
8шт.
27
82020635
NUT,Prevailing Torque, M20 x 2.5 x 20mm, Cl8
4шт.
28
832-10406
NUT,M6 x 1, Cl 8
4шт.
29
892-11014
LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk
8шт.
30
614-12035
BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd
8шт.
31
87255101
BUSHING,25.55mm ID x 31.75mm OD x 31.75mm L
4шт.
32
87254790
PIN,25.4mm OD x 285mm L
4шт.
33
130007
COTTER PIN,M4 x 25
4шт.
34
87250196
PIN,20mm OD x 70mm L
2шт.
35
47478144
OIL SCRAPER RING +0.
8шт.
36
47609424
BUSHING
2шт.
37
409568
COVER PLATE
2шт.
38
47768008
PLATE
1шт.
38
47768002
PLATE
LH
1шт.
39
47602494
SPACER
RH
2шт.
40
9824326
WASHER,5.3mm ID x 10mm OD x 1mm Thk
2шт.
41
84246766
HEX SOC SCREW,M4 x 12mm, SST
2шт.
42
86588450
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
8шт.
43
86517328
LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk
4шт.
44
43118
BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8
4шт.

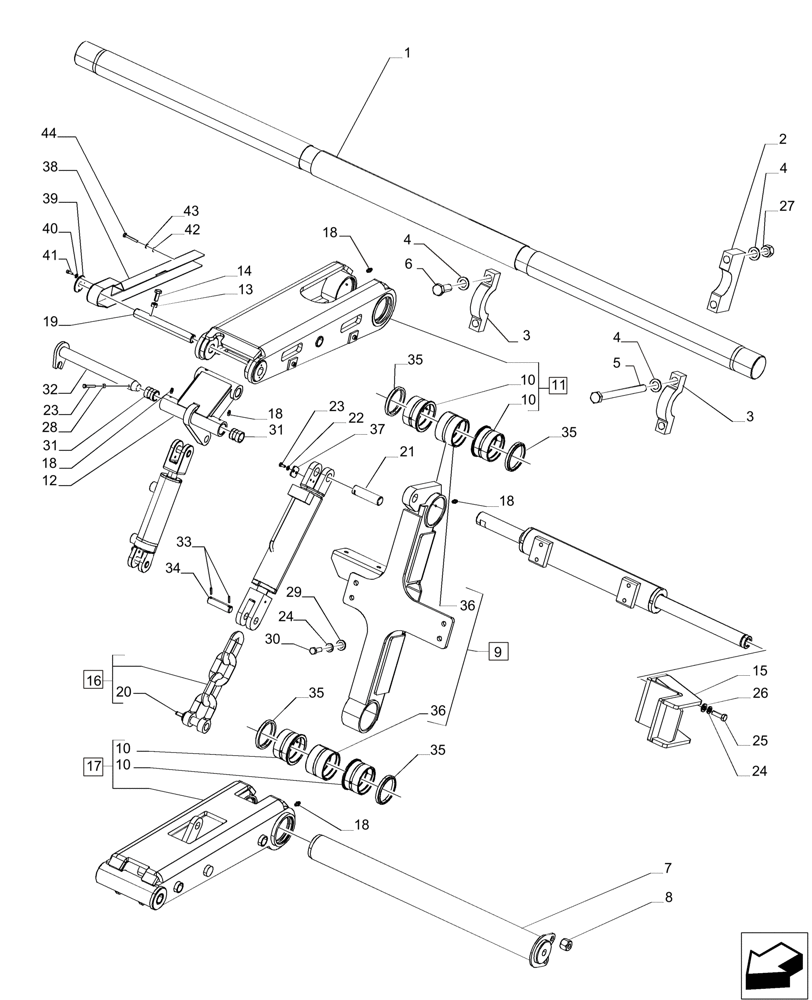

![Схема запчастей Case IH A8800 - (60.350.AD[02]) - LIFT ARM, CROP DIVIDER - MY2015 (60) - PRODUCT FEEDING](https://www.partsell.ru/storage/images/caseih/5294195.png)
