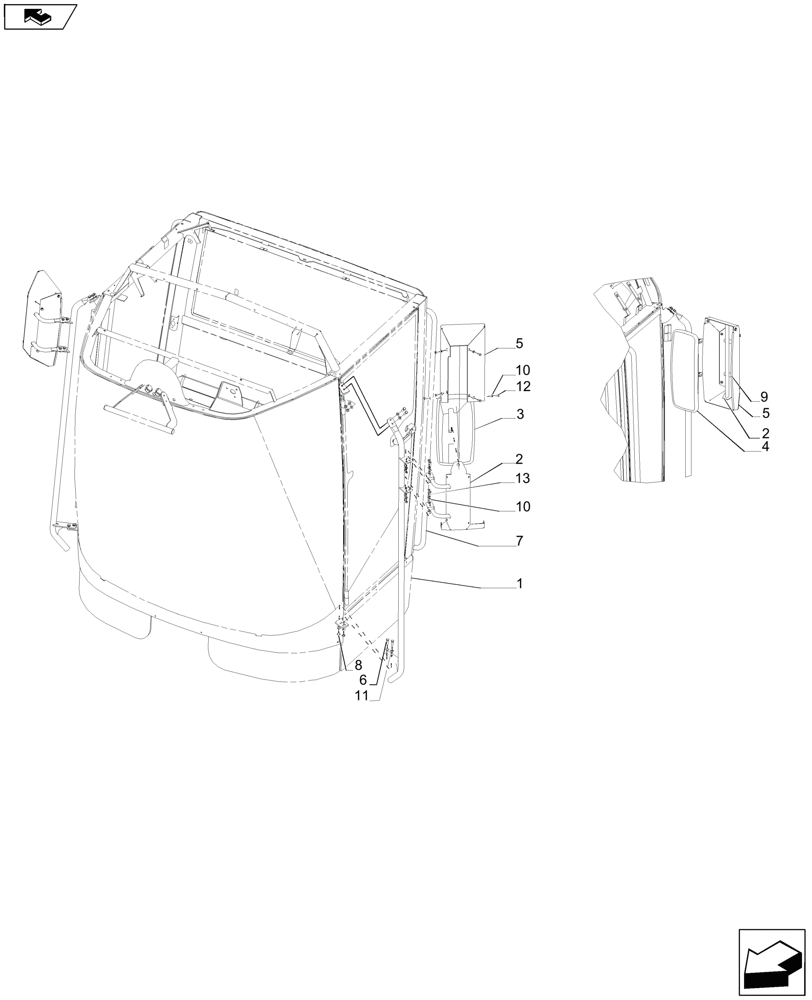

Запчасти Case IH A8800 (90.118.BM) - REAR VIEW MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87705825

TUBE,1412.6, 108.6 mm L

2шт.

2

84544873

SUPPORT

2шт.

3

87705829

LH MIRROR

1шт.

4

87705834

RH MIRROR

1шт.

5

84544882

COVER

2шт.

6

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

7

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

8шт.

8

86629542

NUT,M8 x 1.25, Cl 8.8

8шт.

9

401266

STRIP-GASKET

1.66mшт.

10

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

28шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

12

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

12шт.

13

120100

BOLT,M6 x 20mm, Cl 8.8

8шт.
