(C04-01) - SENDERS AND SWITCHES

Запчасти Case IH AUSTOFT (C04-01) - SENDERS AND SWITCHES Engine & Engine Attachments

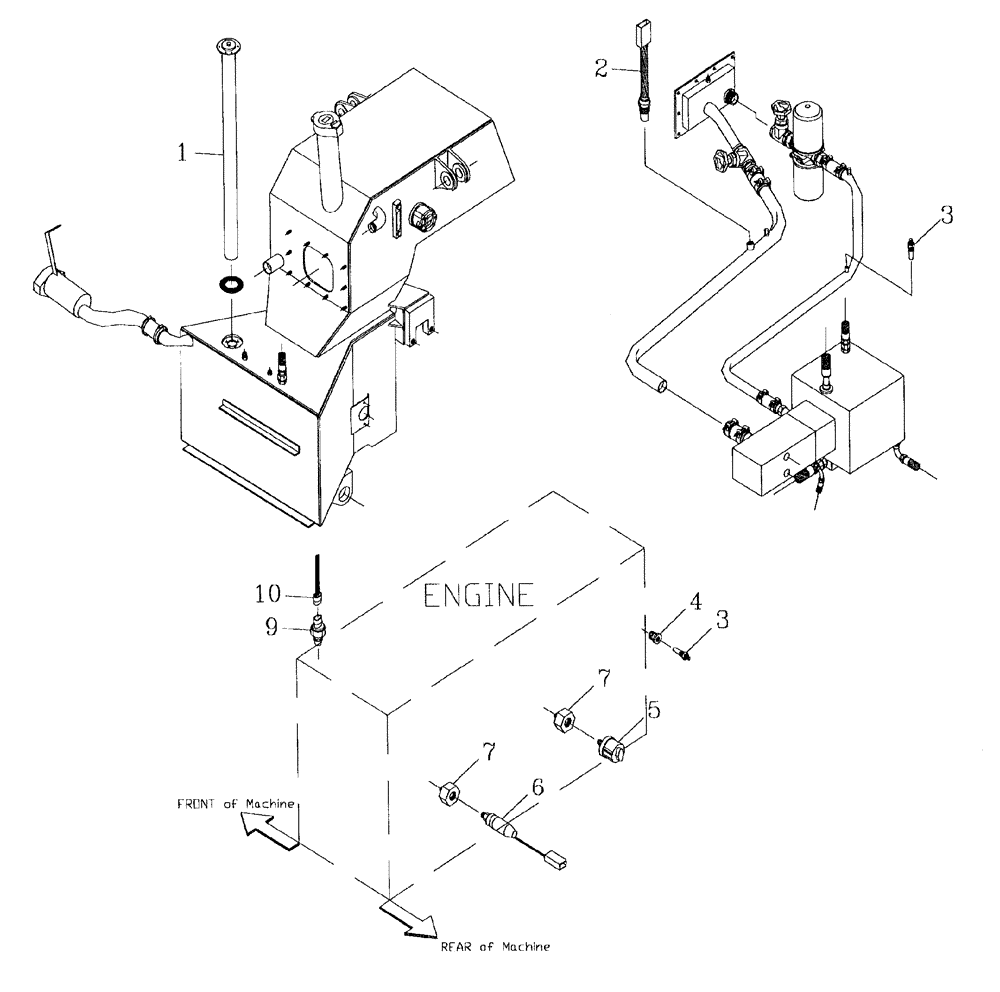

Схема запчастей Case IH AUSTOFT - (C04-01) - SENDERS AND SWITCHES Engine & Engine Attachments
2
7
1
9
10
5
3
7
4
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

00180750

SENDER UNIT

SENDER [Fuel]

1шт.

2

00198136

SWITCH

[hydraulic oil temperature]

1шт.

3

00134483

SENDER UNIT

SENDER [water oil temperature]

2шт.

4

00408193

HYD CONNECTOR

bush

1шт.

5

00131917

SENDER UNIT

SENDER [engine oil pressure]

1шт.

6

00131373

SWITCH

[engine oil pressure]

1шт.

7

87256167

ADAPTER

ADAPTOR

2шт.

9

00180686

SWITCH

[water temperature]

1шт.

10

00180687

ADAPTER

HARNESS

1шт.
