(2-26) - UPPER JACKSHAFT U-JOINT ASSEMBLY, 700708650 U-JOINT ASSEMBLY COMPLETE

Запчасти Case IH 8309 (2-26) - UPPER JACKSHAFT U-JOINT ASSEMBLY, 700708650 U-JOINT ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS

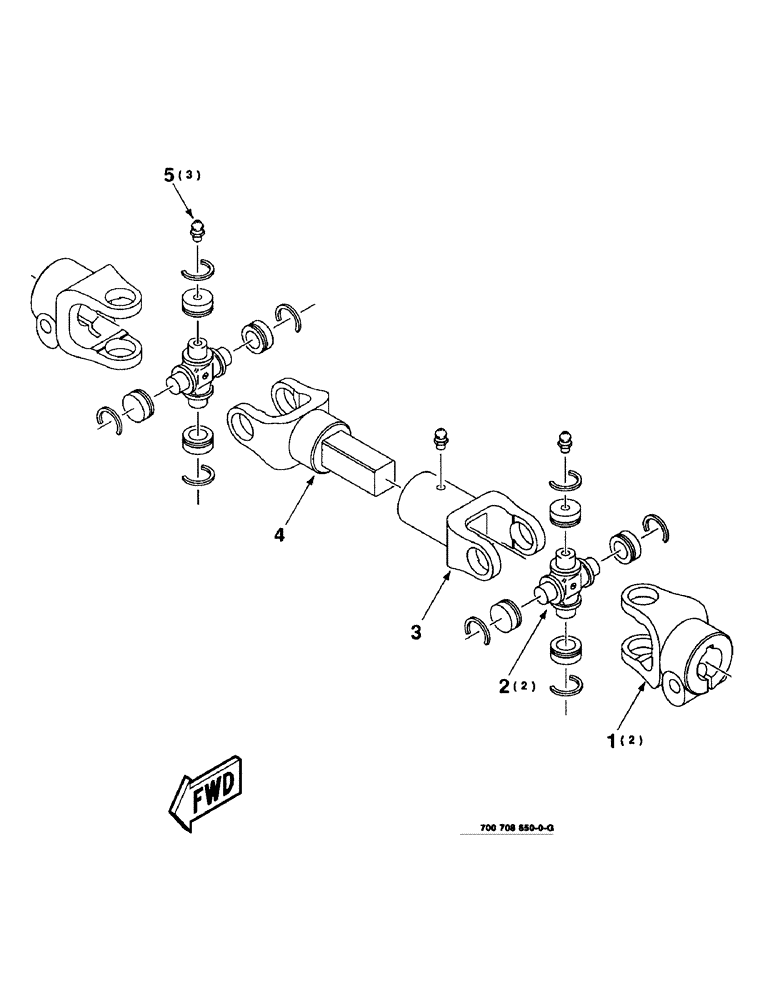

Схема запчастей Case IH 8309 - (2-26) - UPPER JACKSHAFT U-JOINT ASSEMBLY, 700708650 U-JOINT ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS
2
1
4
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

757716

CLAMP

YOKE - clamp

2шт.

2

700711843

FLEXIBLE JOINT

KIT - cross and bearing (Includes item 5)

2шт.

3

700708949

FORK

YOKE - slip

1шт.

4

700708948

FORK

YOKE AND SHAFT

1шт.

5

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1/4-28 X 15/32 ZERK

3шт.

Выбрано товаров: 5
