(8-12) - HYDRAULIC CYLINDER ASSEMBLY, 700718463 HYDRAULIC CYLINDER COMPLETE, 3 INCH BORE BY 16 INCH STROKE

Запчасти Case IH DC515 (8-12) - HYDRAULIC CYLINDER ASSEMBLY, 700718463 HYDRAULIC CYLINDER COMPLETE, 3 INCH BORE BY 16 INCH STROKE (08) - HYDRAULICS

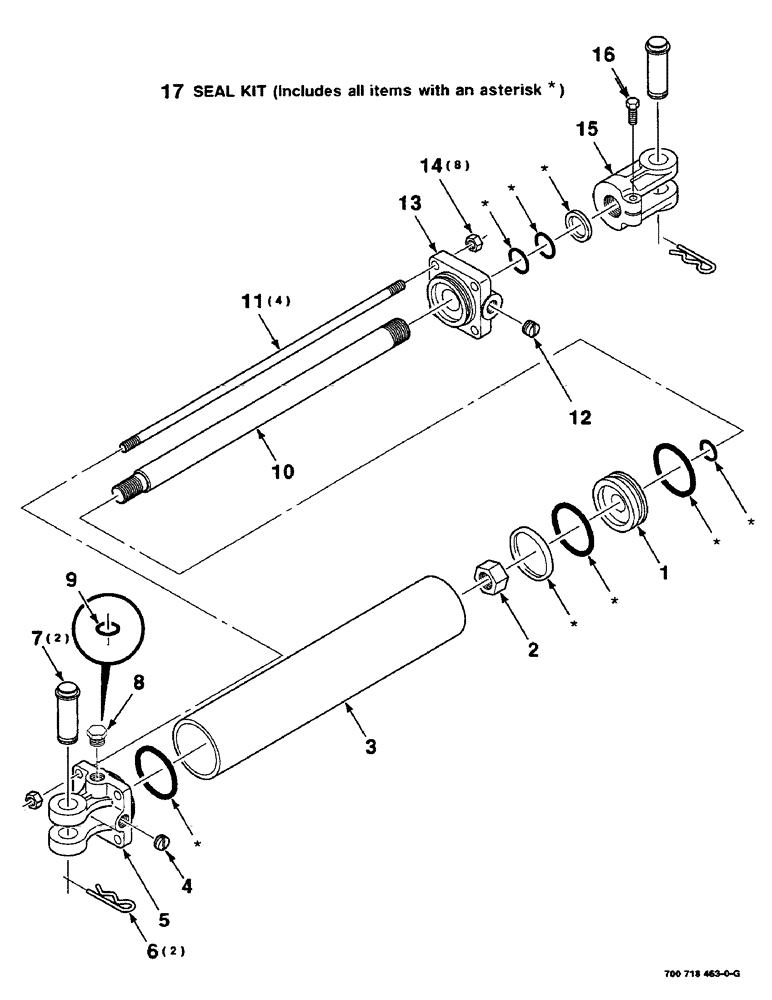

Схема запчастей Case IH DC515 - (8-12) - HYDRAULIC CYLINDER ASSEMBLY, 700718463 HYDRAULIC CYLINDER COMPLETE, 3 INCH BORE BY 16 INCH STROKE (08) - HYDRAULICS
4
5
14
11
1
3
13
12
7
10
2
6
9
16
8
15
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700718463

CYLINDER,Double Acting, 31.75mm Rod, 406.4mm Stroke

HYDRAULIC CYLINDER COMPLETE (3" Bore By 16" Stroke)

3шт.

1

700718493

PISTON

1шт.

2

7735087

LOCK NUT

- piston

1шт.

3

700718492

TUBE

BARREL

1шт.

4

700711231

ORIFICE

PLATE - orifice

1шт.

5

700718495

BASE

- clevis

1шт.

6

S120261

PIN

.149 X 2-3/4 HAIRPIN COTTER

2шт.

7

700718498

PIN

- clevis

2шт.

8

214389

PLUG,3/4" - 16 ORB

(Includes item 9) Hex Hd, 3/4"-16 ORB

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

700718491

ROD

1шт.

11

700718488

ROD

TIE ROD

4шт.

12

700717673

PLUG

- nylon

1шт.

13

700718490

HEAD

1шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

15

700715579

ROD

CLEVIS - rod

1шт.

16

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

17

700718496

SEAL KIT

SEAL KIT

1шт.
