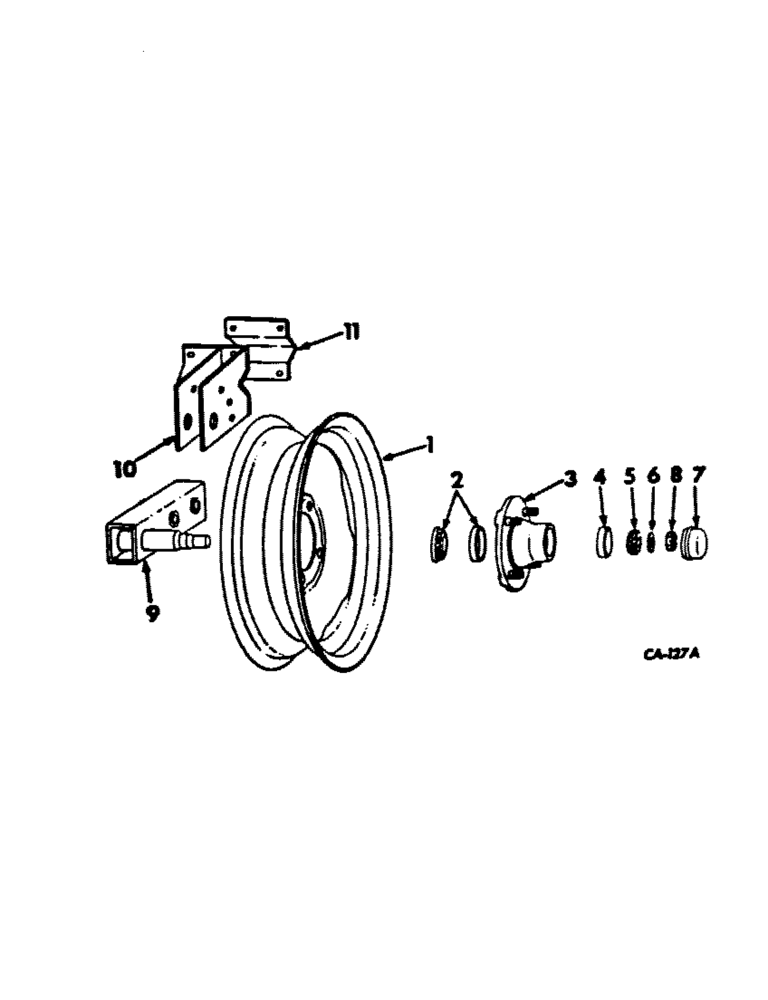

Запчасти Case IH 50 (C-08) - WHEEL AND WHEEL BRACKET

1

455169R92

WHEEL

ASSY, disk 15 in., for use w/6.40-15 4 ply type 1 tire

1шт.

387897R91

VALVE STEM

VALVE, tr-415 tubeless type

2шт.

2

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL, wheel hub inner roller

2шт.

3

465492R2

HUB

wheel

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2-20 x 15/16 C-Z conical hd, wheel hub bolt

8шт.

4

651814R1

BEARING CUP

BEARING, wheel outer cup

2шт.

5

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, wheel hub outer cone

2шт.

5

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

6

575813R1

WASHER

25/32 x 1-1/4 x 11 ga

2шт.

7

651194R1

CAP

wheel hub

2шт.

8

69442D

NUT

3/4-16 slt hex. jam

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

9

60939C1

BRACKET

ASSY, wheel, replaces 491135R1 and 491136R1 by also ordering spacer, 101219C1

1шт.

101219C1

SPACER

21/32 x 3-7/16 bracket

2шт.

21218R1

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 5

SCREW, 3/4-10 x 5-1/4 znd hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

10

101223C1

BRACKET

ASSY, wheel LH, replaces 57025C1 by also ordering two spacers, 101218C1

1шт.

10

101224C1

BRACKET

ASSY, wheel RH, replaces 57022C1 by also ordering two spacers, 101218C1

1шт.

101218C1

SPACER

21/32 x 5/16 wheel bracket

2шт.

469805R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, 5/8-11 x 2 znd hex-hd cap

4шт.

20199R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 znd hex-hd cap

4шт.

20033R1

LOCK NUT

NUT, 5/8-11 cdp nylon insert

8шт.

11

57026C1

SUPPORT

bracket LH

1шт.

11

57024C1

SUPPORT

bracket RH

1шт.

21218R1

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 5

SCREW, 3/4-10 x 5-1/4 znd hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.
