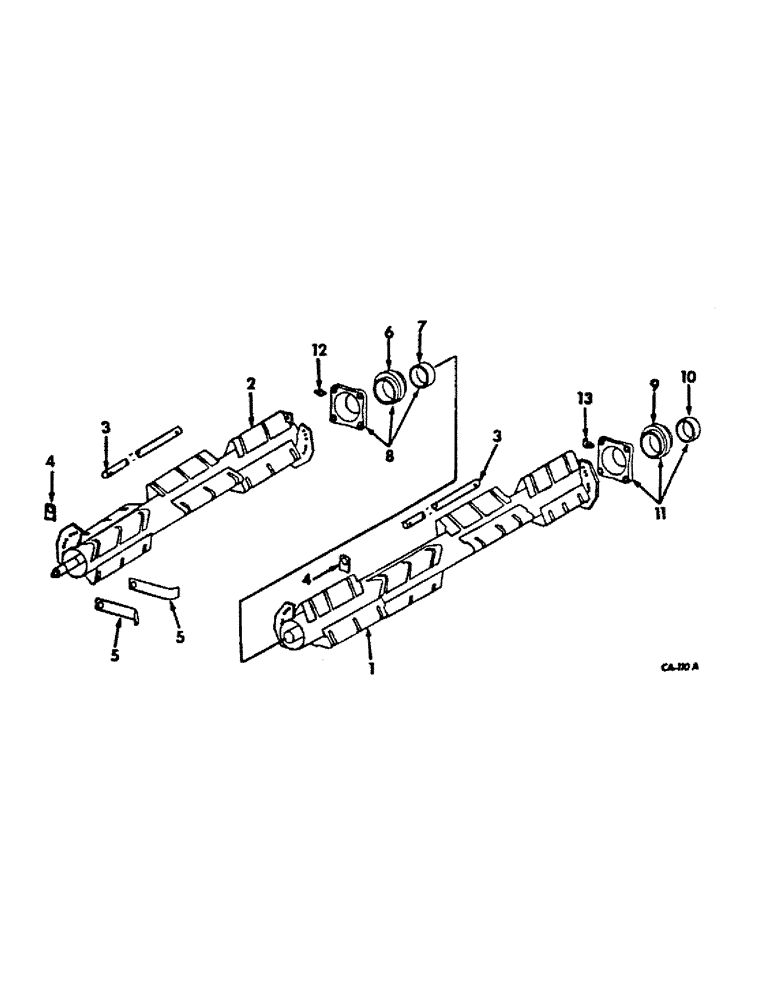

Запчасти Case IH 50 (C-06) - ROTORS AND ROTOR KNIVES

1

493810R91

ROTOR

ASSY, w/heat treated knives, long

1шт.

Q3480

WASHER

1-1/32 x 1-1/2 x 11 ga

6шт.

2

493811R91

ROTOR

ASSY, w/heat treated knives, short

1шт.

Q3480

WASHER

1-1/32 x 1-1/2 x 11 ga

6шт.

3

491094R2

ROD

knife support, 9 used w/short rotor assy, 12 used w/long rotor assy

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

2 per rod 5/16" x 1 1/2", Coiled

1шт.

4

491095R1

BAR

tube end, 17 used w/short rotor assy, 23 used w/long rotor assy

1шт.

5

58454C92

SET

KNIFE PACKAGE, rotor, heat treated, single bevel, consists of three LH knives & three RH knives, repalces 192565R91, 9 used w/short rotor assy, 12 used w/long rotor assy

1шт.

6

491098R91

BALL BEARING,1.5005" ID x 80 mm OD x 1.6875"

LESS COLLAR, ball

2шт.

7

455112R11

COLLAR

W/SET SCREW, locking

2шт.

8

491097R91

BEARING ASSY

BEARING W/COLLAR & CARTRIDGE, inner

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 C-Z hex-hd cap

8шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z hex. lock

8шт.

9

467172R91

BALL BEARING,38.1mm ID x 80mm OD x 21mm W

ball

2шт.

10

455112R11

COLLAR

W/SET SCREW, locking

2шт.

11

470938R91

BEARING ASSY,1.5" ID x 2.3125"

BEARING W/COLLAR & CARTRIDGE, outer

2шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z hex. lock

8шт.

12

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

13

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 ptf 45 deg lub

2шт.
