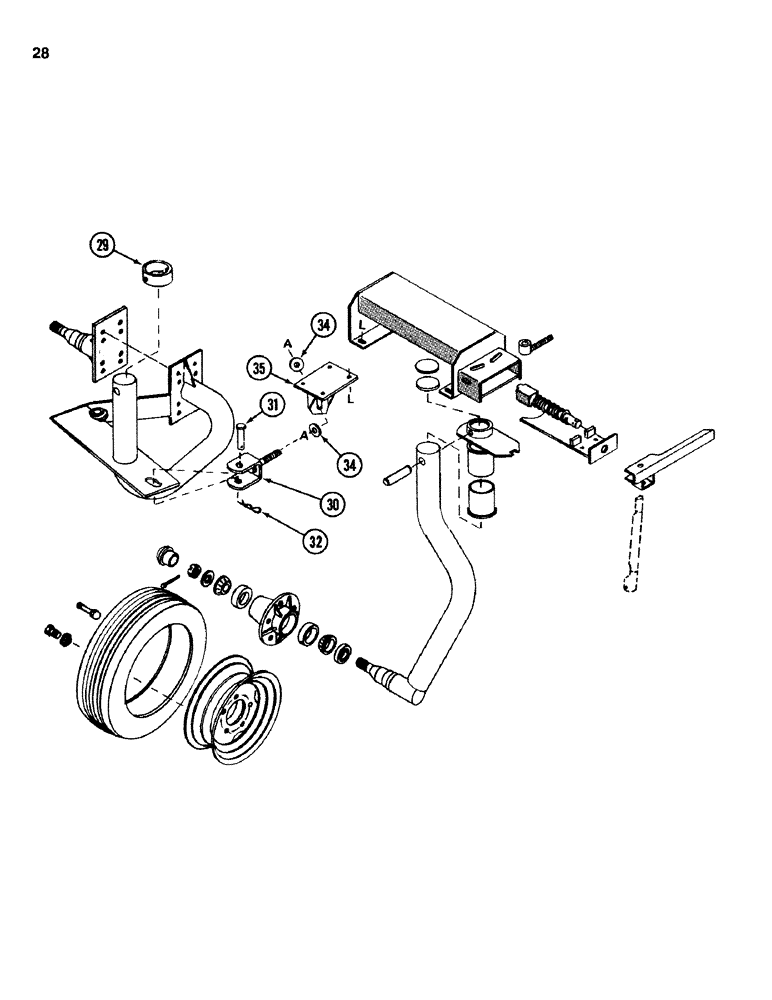

Запчасти Case IH 750 (28) - WHEELS, CASTERS AND WHEEL LOCKS

29

1276502C1

BUSHING

- retainer

2шт.

b

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex, 3/8 NC x 3 inch

2шт.

c

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

2шт.

30

1276503C1

BOLT

CLEVIS - transport lock

2шт.

a

280954

NUT,3/4"-10, G5

4шт.

31

22909R1

HEADED PIN,3/4" x 3"

PIN - clevis

2шт.

32

591107R1

COTTER PIN

- hair

2шт.

34

21211R1

WASHER

- flat

4шт.

35

90970C1

BRACKET

- mounting, clevis

2шт.

l

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- flange head, 1/2 NC x 1 inch

8шт.
