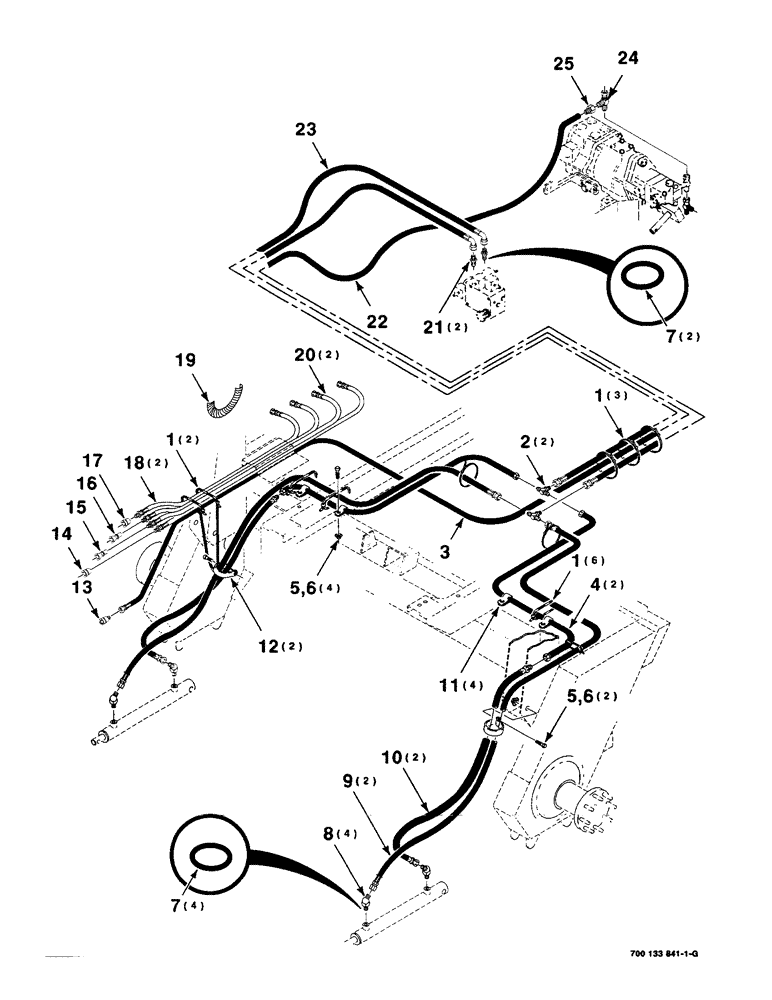

Запчасти Case IH 8825 (08-12) - HEADER HYDRAULIC LIFT ASSEMBLY (08) - HYDRAULICS

1

7021728

STRAP

TIE

11шт.

2

218-593

TEE,9/16"-18, 37 Degree

- hydraulic

2шт.

3

700715408

HOSE

- hydraulic

1шт.

4

700705580

TUBE

LINE - hydraulic

2шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

6шт.

7

738468

O-RING

6шт.

8

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree (Includes item 7)

4шт.

9

700706300

FLEXIBLE HOSE

HOSE - hydraulic

2шт.

10

700707520

FLEXIBLE HOSE

HOSE - hydraulic

2шт.

11

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

Line 3/8", Insul, 5/16" Bolt

4шт.

12

CAS755777

CLAMP

LINE CLAMP

2шт.

13

700707515

QUICK MALE COUPLING

1/4 COUPLER

1шт.

14

H436396

COUPLING

1/2 FEMALE COUPLER

1шт.

15

1-7141

FITTING

1/2 NIPPLE

1шт.

16

700709821

HYD CONNECTOR

1/2 MALE NIPPLE

1шт.

17

700709820

QUICK MALE COUPLING

1/2 FEMALE COUPLER

1шт.

18

700709801

RIGID TUBE

HOSE - hydraulic

2шт.

19

700105144

GROMMET

1шт.

20

700709799

HYDRAULIC HOSE,16.00 mm ID x 1325.00 mm, SAE 100R1

16.00 mm ID x 1325.00 mm, SAE 100R1

2шт.

21

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

FITTING (Incl. item 7)

2шт.

22

195504C2

HYDRAULIC HOSE

HOSE - hydraulic

1шт.

23

700705575

FLEXIBLE HOSE

HOSE - hydraulic

1шт.

24

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- hydraulic fitting

1шт.

25

700711771

REDUCER

- internal

1шт.
