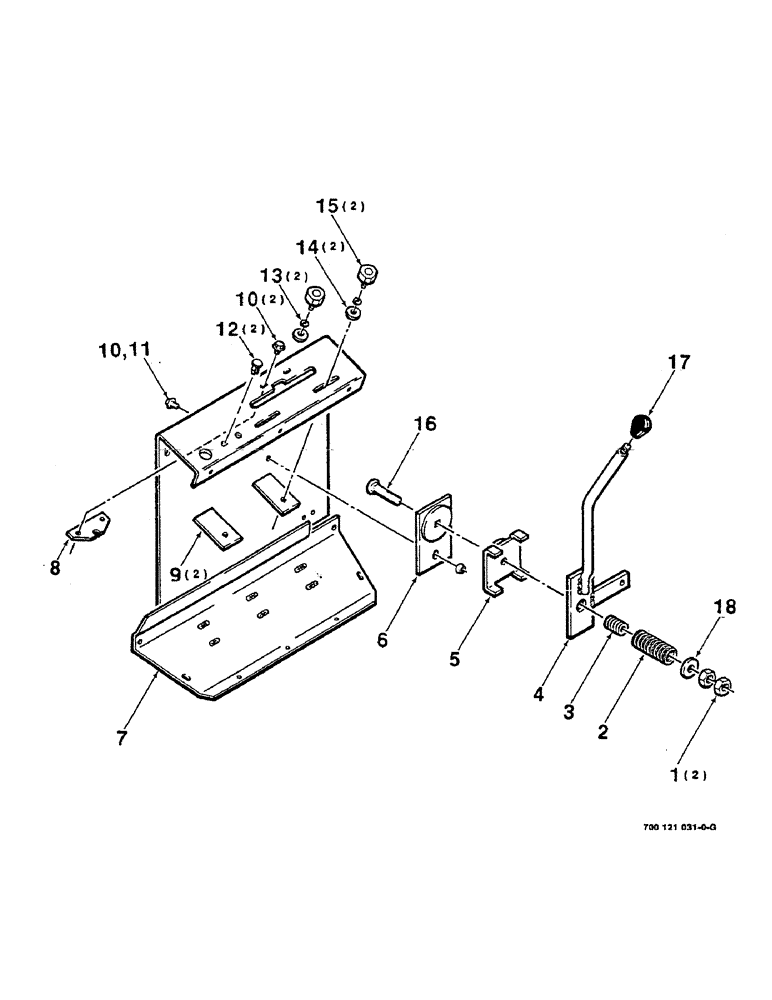

Запчасти Case IH 8825 (08-42) - HEADER HYDRAULIC CONTROL ASSEMBLY (08) - HYDRAULICS

1

425-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

2

700709770

SPRING

- compression

1шт.

3

758029

SPRING

1шт.

4

700121019

LEVER

1шт.

5

700121116

PLATE

ASSEMBLY

1шт.

6

700121117

PLATE

ASSEMBLY

1шт.

7

700121015

PANEL

- control

1шт.

8

700121024

PLATFORM

PLATE - neutral, stop

1шт.

9

700121026

STOP

2шт.

10

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

11

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

12

1711746

PLUG

2шт.

13

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

496-11028

WASHER,9/32" x 5/8" x .065, HDN

KNOB - clamp type

2шт.

15

700707295

KNOB

- clamp type

2шт.

16

433-840

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

1/2-13 X 2-1/2 RHSNB

1шт.

17

173808C1

KNOB

1шт.

18

495-21056

WASHER,1/2"

1/2 WIDE PLAIN WASHER

1шт.
