(08-40) - HYDRAULIC CYLINDER ASSEMBLY, FLOTATION, 700712926 HYDRAULIC CYLINDER COMPLETE

Запчасти Case IH 8825HP (08-40) - HYDRAULIC CYLINDER ASSEMBLY, FLOTATION, 700712926 HYDRAULIC CYLINDER COMPLETE (08) - HYDRAULICS

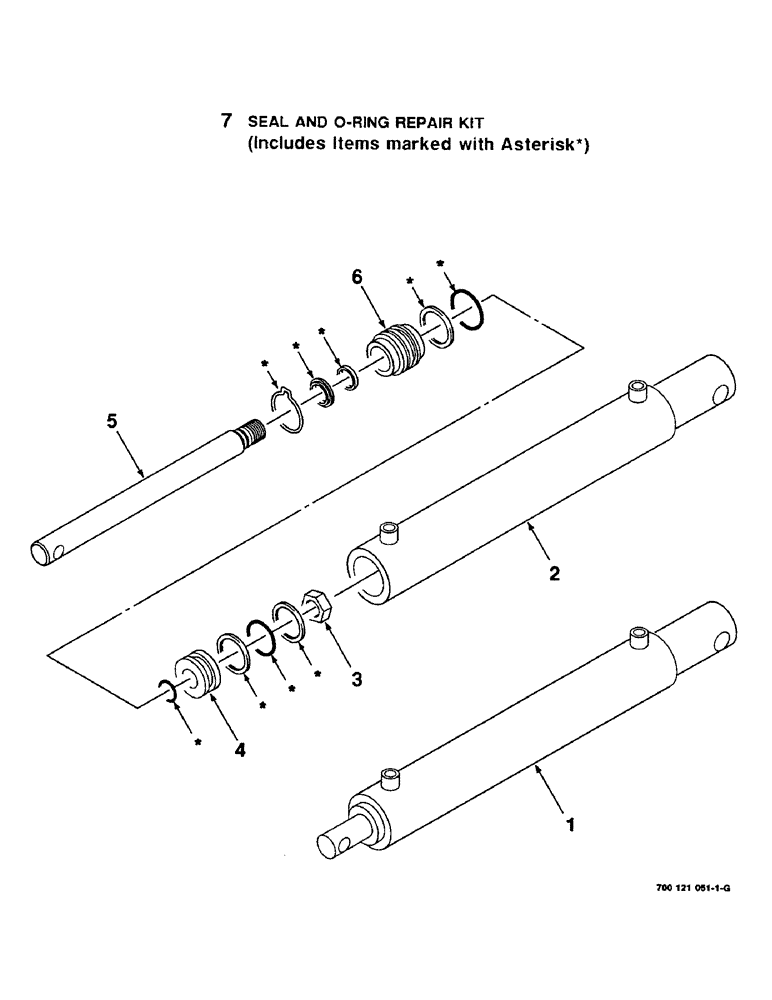

Схема запчастей Case IH 8825HP - (08-40) - HYDRAULIC CYLINDER ASSEMBLY, FLOTATION, 700712926 HYDRAULIC CYLINDER COMPLETE (08) - HYDRAULICS
2
6
5
3
4
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700712926

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 406.4mm Stroke

HYDRAULIC CYLINDER COMPLETE (2.25 In Id x 16 In stroke)

1шт.

2

700712929

BODY

BARREL

1шт.

3

774315

NUT

7/8-14 LOCKNUT

1шт.

4

700710829

PISTON

1шт.

5

700712945

ROD

1шт.

6

700712942

GUIDE

1шт.

7

700712930

SEAL

AND O-RING REPAIR KIT, Includes items in art marked with Asterisk

1шт.
