(08-22) - HYDR CYLINDER ASSY, LOWER, HEADER LIFT, 700712021 HYDR CYLINDER COMPLETE, 2-3/4" BORE X 8" STROKE

Запчасти Case IH 8850 (08-22) - HYDR CYLINDER ASSY, LOWER, HEADER LIFT, 700712021 HYDR CYLINDER COMPLETE, 2-3/4" BORE X 8" STROKE (08) - HYDRAULICS

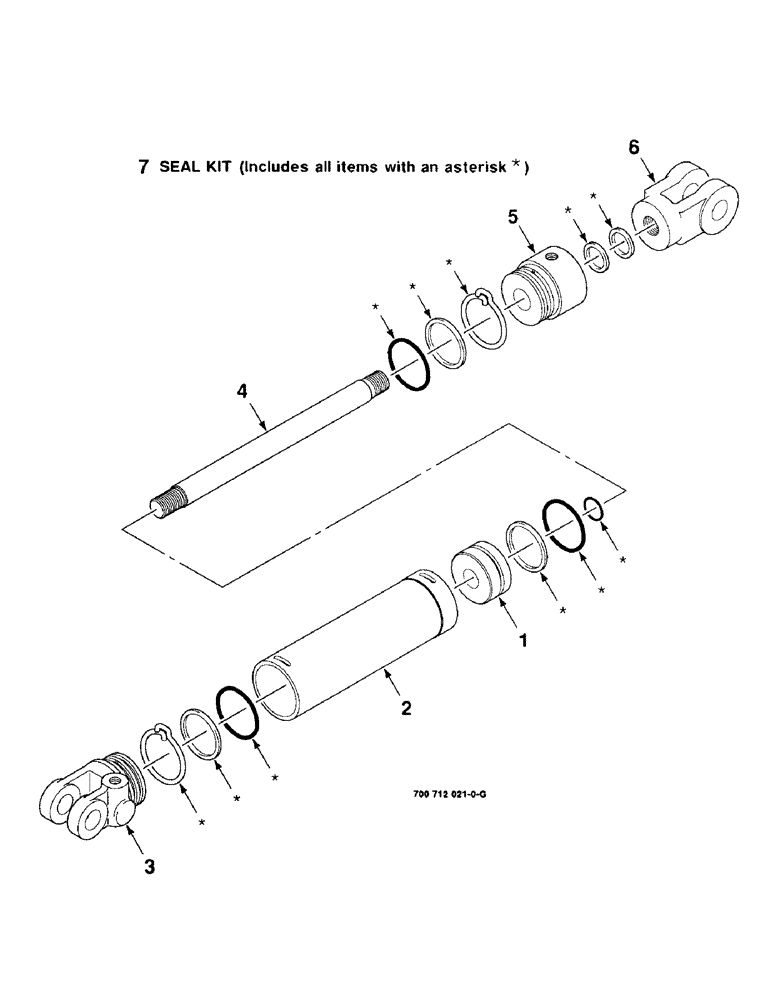

Схема запчастей Case IH 8850 - (08-22) - HYDR CYLINDER ASSY, LOWER, HEADER LIFT, 700712021 HYDR CYLINDER COMPLETE, 2-3/4" BORE X 8" STROKE (08) - HYDRAULICS
2
4
6
7
1
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700712021

CYLINDER

HYDRAULIC CYLINDER COMPLETE

1шт.

1

700710255

PISTON

- cylinder

1шт.

2

700712107

SLEEVE CYLINDER

BARREL

1шт.

3

700706175

HEAD

- cylinder

1шт.

4

700706178

PISTON ROD

ROD - piston

1шт.

5

700712108

LIFT CYLINDER

BEARING - cylinder rod

1шт.

6

50-2079T1

END

CLEVIS - rod end

1шт.

7

700710256

SEAL KIT

1шт.

Выбрано товаров: 8
