(08-26) - HYDR CYLINDER ASSEMBLY, LOWER, HEADER LIFT, 700712019 HYDR CYLINDER COMPLETE, 2-1/2" X 8" STROKE

Запчасти Case IH 8850 (08-26) - HYDR CYLINDER ASSEMBLY, LOWER, HEADER LIFT, 700712019 HYDR CYLINDER COMPLETE, 2-1/2" X 8" STROKE (08) - HYDRAULICS

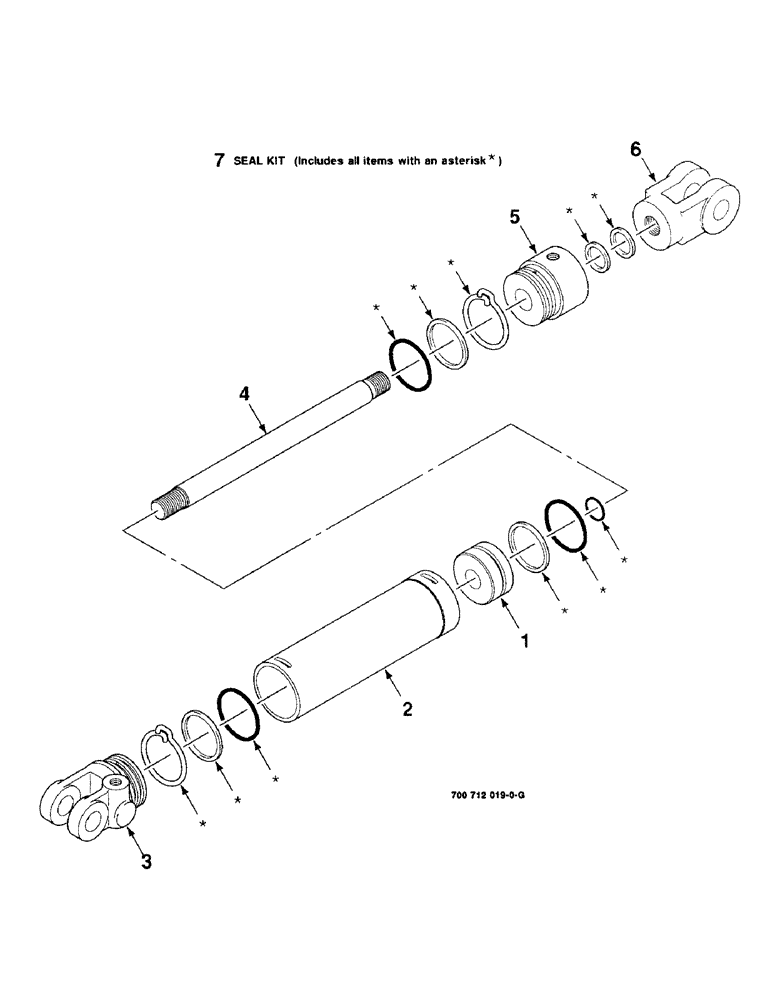

Схема запчастей Case IH 8850 - (08-26) - HYDR CYLINDER ASSEMBLY, LOWER, HEADER LIFT, 700712019 HYDR CYLINDER COMPLETE, 2-1/2" X 8" STROKE (08) - HYDRAULICS
3
2
6
7
4
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700712019

CYLINDER

HYDRAULIC CYLINDER COMPLETE

1шт.

1

102905A1

PISTON

- cylinder

1шт.

2

102906A1

TUBE

BARREL

1шт.

3

102904A1

HEAD

- cylinder

1шт.

4

102907A1

ROD

- piston

1шт.

5

102909A1

BEARING

- cylinder rod

1шт.

6

102908A1

END

CLEVIS - rod end

1шт.

7

H673838

SEAL

SEAL KIT

1шт.

Выбрано товаров: 8
