(08-36) - HYDRAULIC TWO SPEED CONTROL VALVE ASSEMBLY, DELTA, 700712670 TWO SPEED CONTROL VALVE COMPLETE

Запчасти Case IH 8850 (08-36) - HYDRAULIC TWO SPEED CONTROL VALVE ASSEMBLY, DELTA, 700712670 TWO SPEED CONTROL VALVE COMPLETE (08) - HYDRAULICS

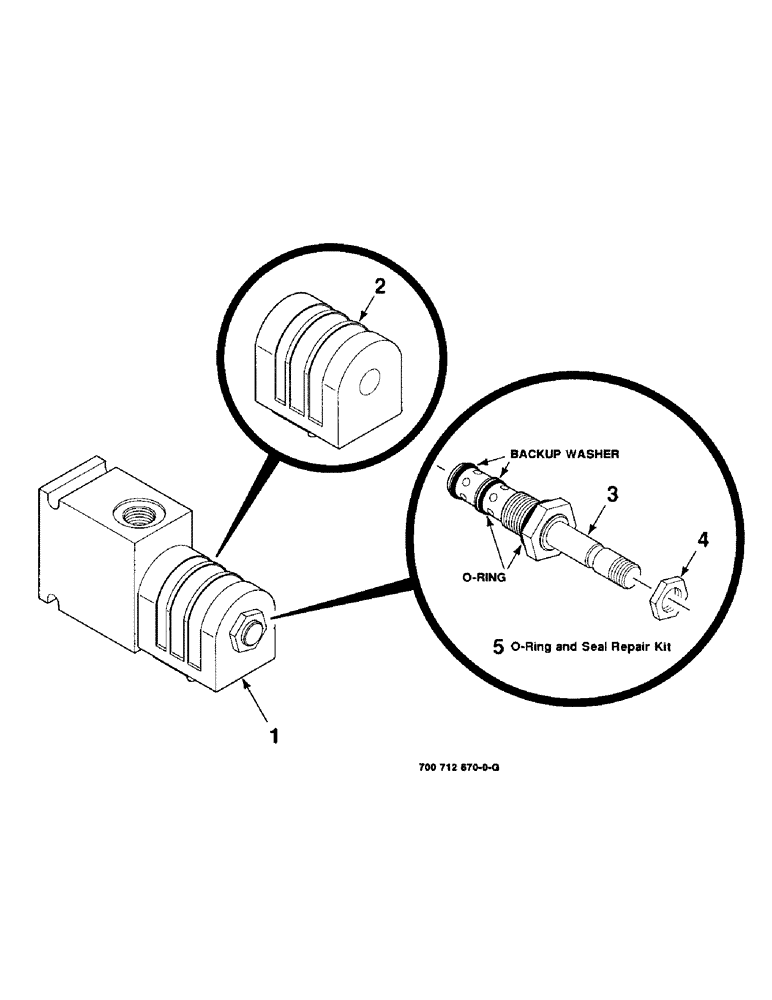

Схема запчастей Case IH 8850 - (08-36) - HYDRAULIC TWO SPEED CONTROL VALVE ASSEMBLY, DELTA, 700712670 TWO SPEED CONTROL VALVE COMPLETE (08) - HYDRAULICS
4
2
1
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700712670

VALVE

HYDRAULIC CONTROL VALVE COMPLETE

1шт.

2

700712820

COIL

1шт.

3

700712819

CARTRIDGE

1шт.

4

700712821

NUT

1шт.

5

700712678

KIT

O-RING AND SEAL REPAIR KIT

1шт.

Выбрано товаров: 5
