(08-38) - HYDRAULIC CYLINDER ASSEMBLY, TWO SPEED SHIFT, 7075625 HYDR CYLINDER COMPLETE, 2" BORE X 4" STROKE

Запчасти Case IH 8850 (08-38) - HYDRAULIC CYLINDER ASSEMBLY, TWO SPEED SHIFT, 7075625 HYDR CYLINDER COMPLETE, 2" BORE X 4" STROKE (08) - HYDRAULICS

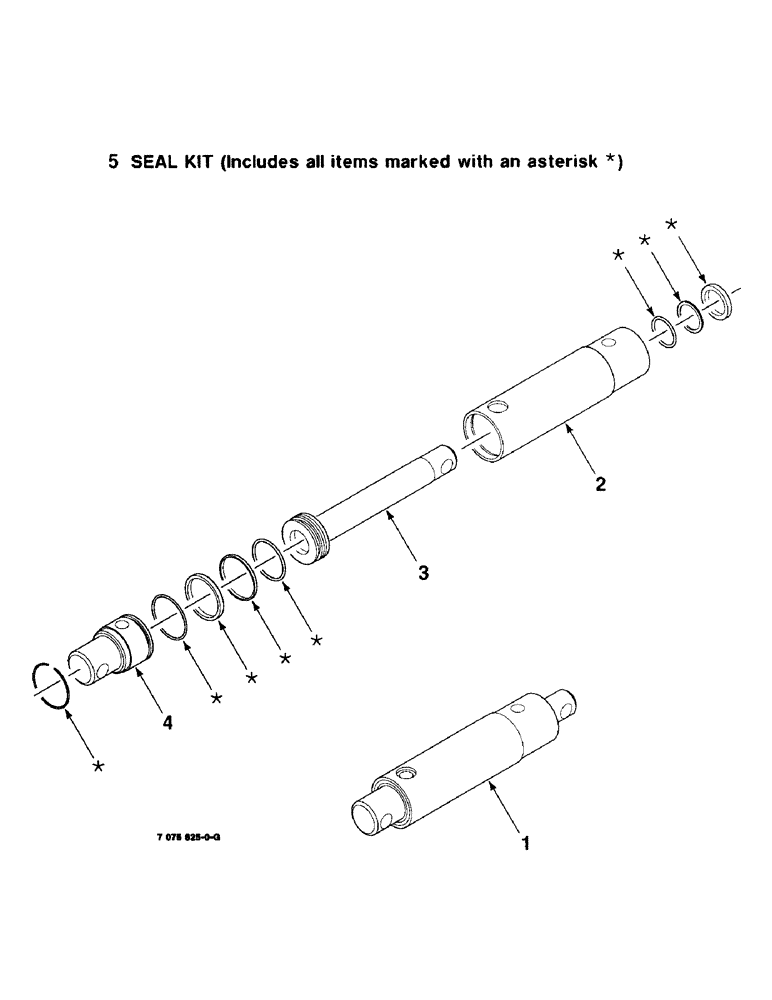

Схема запчастей Case IH 8850 - (08-38) - HYDRAULIC CYLINDER ASSEMBLY, TWO SPEED SHIFT, 7075625 HYDR CYLINDER COMPLETE, 2" BORE X 4" STROKE (08) - HYDRAULICS
1
2
5
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7075625

CYLINDER

HYDRAULIC CYLINDER COMPLETE

1шт.

2

7732258

TUBE ASSY.

BARREL

1шт.

3

7732266

ROD

PISTON ROD ASSEMBLY

1шт.

4

7732241

HEAD

- cylinder

1шт.

5

7732274

SEAL KIT

SEAL KIT

1шт.

Выбрано товаров: 5
