(55.101.AC[01]) - WIRE HARNESS & CONNECTOR, DRAPER, FD4 (CONT,)

Запчасти Case IH WD1504 (55.101.AC[01]) - WIRE HARNESS & CONNECTOR, DRAPER, FD4 (CONT,) (55) - ELECTRICAL SYSTEMS

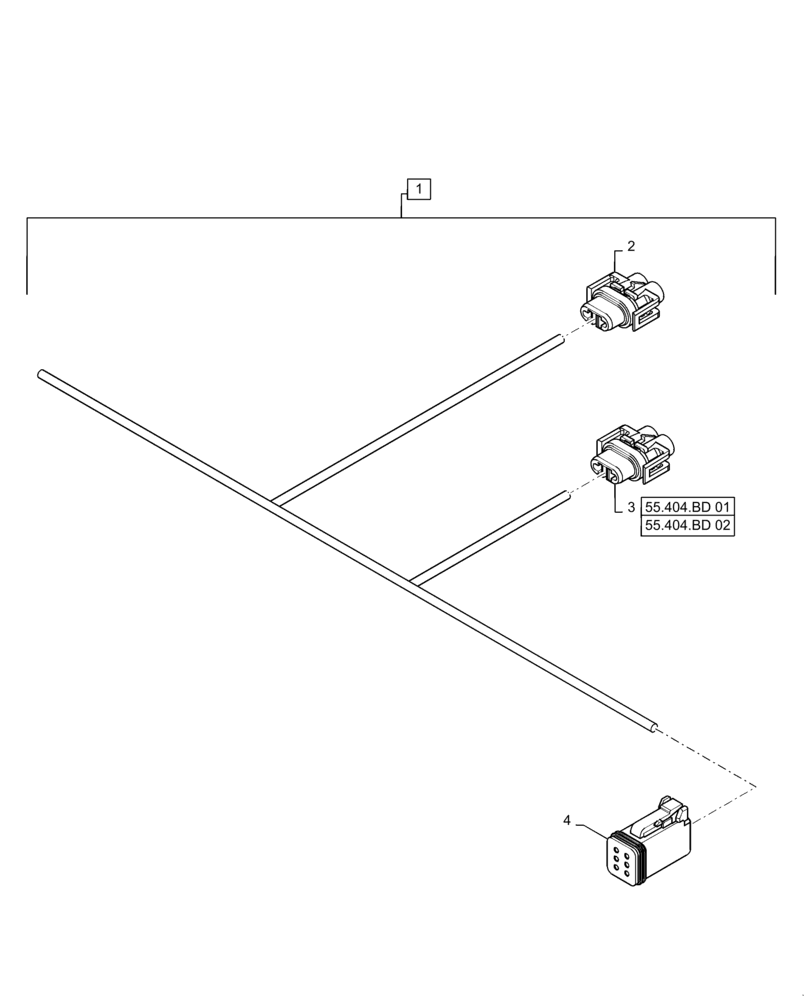

Схема запчастей Case IH WD1504 - (55.101.AC[01]) - WIRE HARNESS & CONNECTOR, DRAPER, FD4 (CONT,) (55) - ELECTRICAL SYSTEMS
4
55.404.bd 02
1
2
3
55.404.bd 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47474920

WIRE HARNESS

FD4, Incl 2 - 4

1шт.

2

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

E-023 Lamp, Stubble, Right, X-221

1шт.

2

87680656

CONTACT

E-023 Lamp, Stubble, Right, X-221

2шт.

2

87680701

SEAL

E-023 Lamp, Stubble, Right, X-221

2шт.

3

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

E-025 Lamp, Work, Right Rear, X-222

1шт.

3

87680656

CONTACT

E-025 Lamp, Work, Right Rear, X-222

2шт.

3

87680701

SEAL

E-025 Lamp, Work, Right Rear, X-222

2шт.

4

87694112

ELEC CONNECTOR,Female, 6 Pole

FM To TL Pass-Thru, X149

1шт.

4

87694150

LOCKING TAB,Wedge Lock

FM To TL Pass-Thru, X149

1шт.

4

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

FM To TL Pass-Thru, X149

3шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

FM To TL Pass-Thru, X149

3шт.
