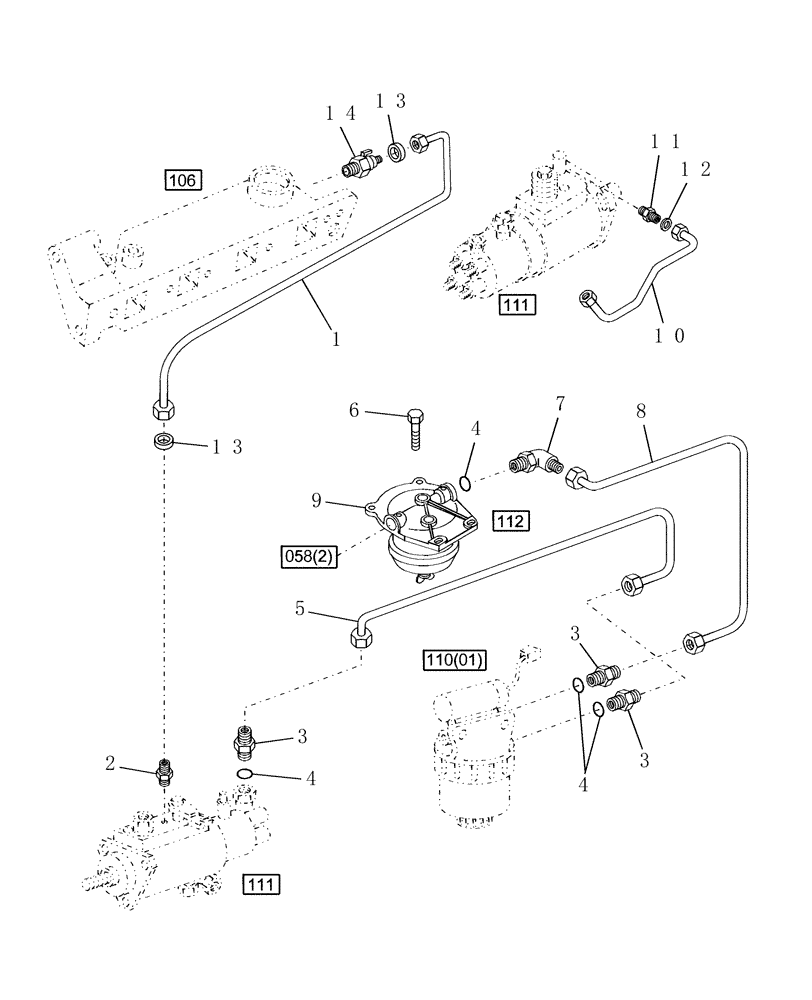

Запчасти Case IH WDX901 (109) - ENGINE, FUEL SYSTEM LINES (10) - ENGINE

1

87801626

TUBE,4.75 mm OD

Intake Manifold to Injection Pump

1шт.

2

87800970

FITTING

1шт.

3

83947824

FITTING,9/16"-24 x 1/2"-20 O-Ring

3шт.

5

87801468

TUBE,9 mm DIA x 149.5, 88 mm L

1шт.

6

81868740

BOLT

Flg Hd, 3/8"-16 x 1-1/4"

1шт.

6

83958605

BOLT

3/8"x 1 1/2"

1шт.

7

83951858

ELBOW,9/16" - 24 x 1/2" - 20 ORB

90°, 5/16", Flareless, 1/2"-20

1шт.

8

87801467

TUBE,8.05 mm OD x 206.5, 105 mm L

Separator to Fuel Filter/Lift Pump

1шт.

9

87802172

FILTER

Water Separator, Refer to Fig. 112

1шт.

10

87800909

TUBE,4.8 mm OD x 155, 49 mm L

1шт.

11

87801322

FITTING

1шт.

12

11270060

SEALING WASHER,M10.2 x 13.4 x 1, Copper

1шт.

13

87801633

SLEEVE,4.45mm ID x 8.05mm OD x 3mm Thk

Seal, Heater, Included With Ref. 1

2шт.

14

87800843

THERMOSTART

1шт.

4

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

4шт.
