(064[A]) - WEAR PLATES, 12 FT. TO 14 FT., AUGER HEADER

Запчасти Case IH 1075 (064[A]) - WEAR PLATES, 12 FT. TO 14 FT., AUGER HEADER (58) - ATTACHMENTS/HEADERS

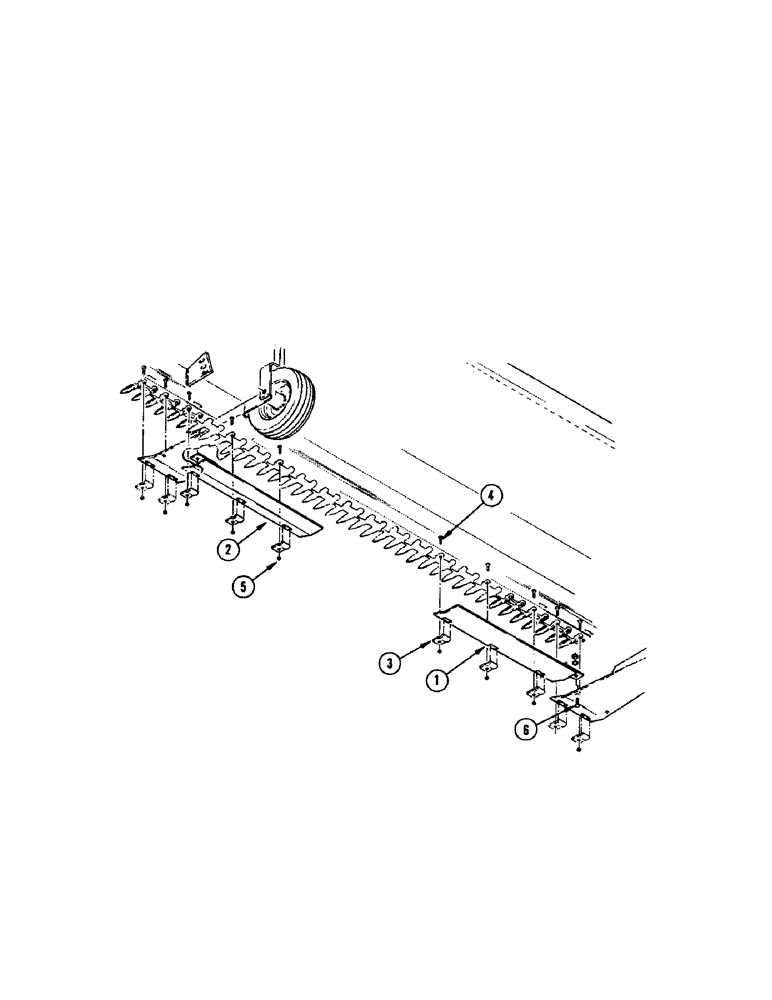

Схема запчастей Case IH 1075 - (064[A]) - WEAR PLATES, 12 FT. TO 14 FT., AUGER HEADER (58) - ATTACHMENTS/HEADERS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F37253

PLATE - R.H. wear

1шт.

2

F37252

PLATE - L.H. wear

1шт.

3

F37227

CLIP

6шт.

4

111-411

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 3/4", G5

BOLT -7/16 x 1-3/4" rhd. sq. nk. gr. 5

4шт.

5

129-104

NUT,7/16"-14, G5

6шт.

6

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

Выбрано товаров: 6
