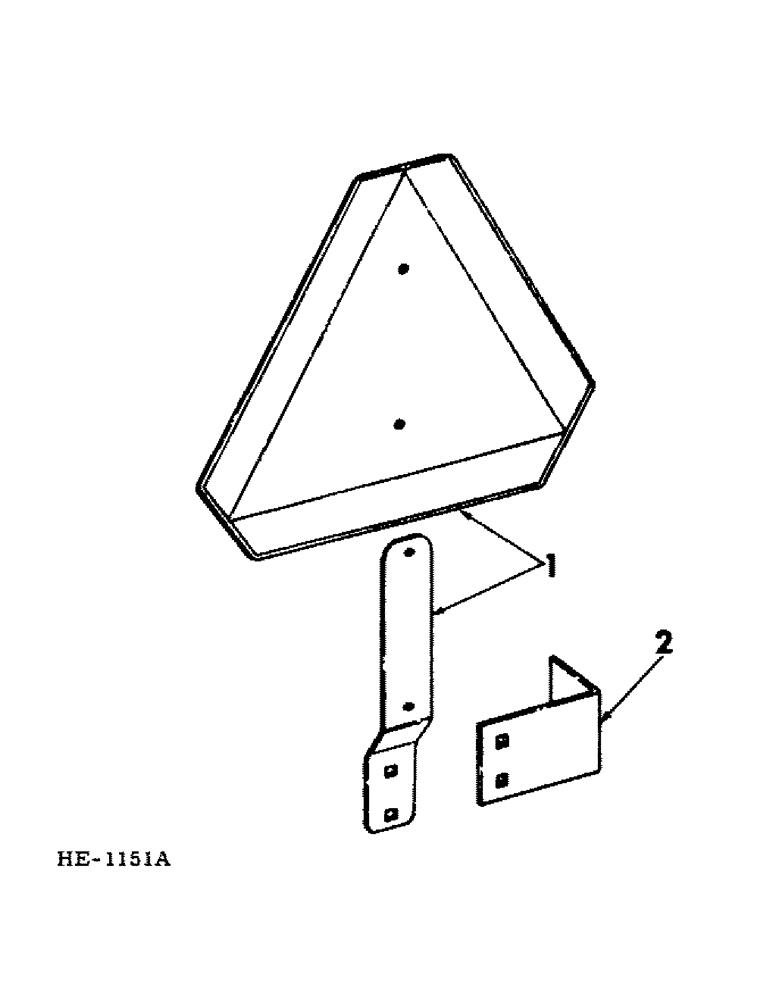

Запчасти Case IH 230 (02-3) - MISCELLANEOUS, S.M.V EMBLEM Accessories & Attachments / Miscellaneous

1

407220R1

PRODUCT GRAPHIC

PACKAGE, S.M.V. emblem, steel

1шт.

1

407218R1

PACKAGE

S.M.V. emblem, aluminum composed of: (1) shield (NSS), (1) support (NSS)

1шт.

2

826201C1

ANGLE, S.M.V. emblem mounting

1шт.

Not part of S.M.V. package.

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
