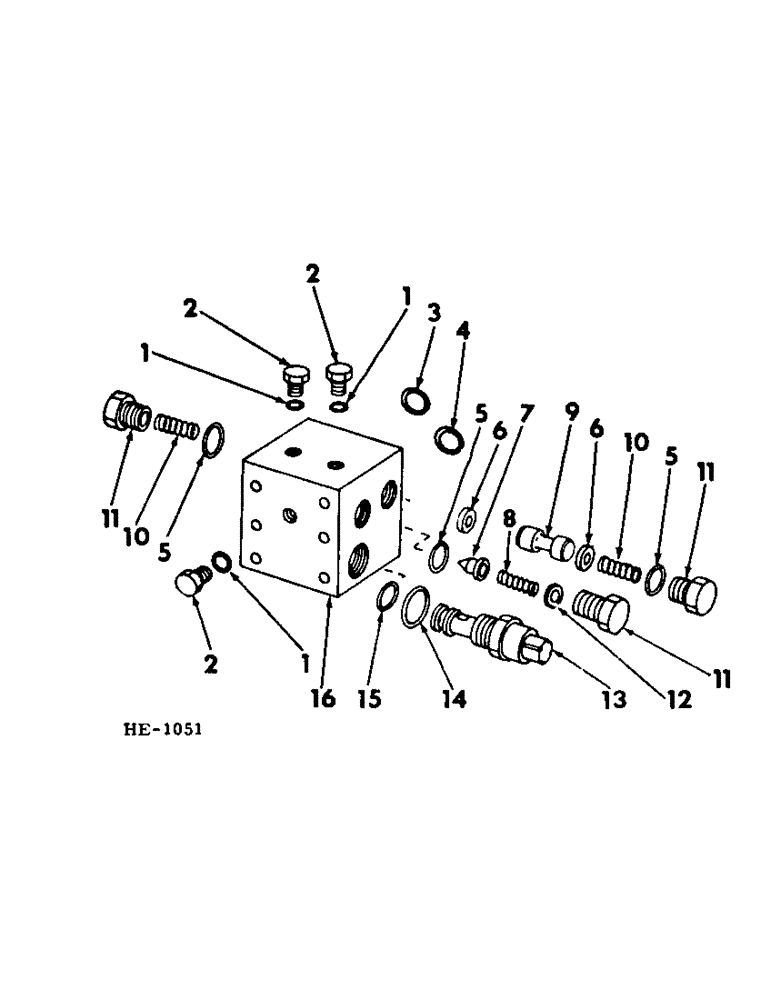

Запчасти Case IH 275 (F-50) - HYDRAULIC SYSTEM, HYDROSTATIC MOTOR MANIFOLD VALVE (07) - HYDRAULIC SYSTEM

394171R91

VALVE

hydrostatic motor manifold (composed of all parts listed below, unless otherwise noted)

1шт.

186271

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3 3/4", G5

6шт.

Not part of manifold valve.

1шт.

394880R1

WASHER

11/32 x 19/32 x .083

6шт.

1

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Valve housing boss plug

3шт.

2

9410356

PLUG

7/16" - NF valve housing boss

3шт.

3

610547C1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

7/16 x 1 x 16" manifold valve housing small (a component part of 67807C91 or 67810C91, MOTOR)

1шт.

Not part of manifold valve.

1шт.

4

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32" manifold housing large (a component part of 67807C91 or 67810C91, MOTOR)

1шт.

Not part of manifold valve.

1шт.

5

364886R1

WASHER, housing port back-up (for 67810C91 or 67807C91, MOTOR)

2шт.

6

394177R1

WASHER

manifold shuttle valve (a component part of 67810C91 or 67807C91, MOTOR)

2шт.

Not part of manifold valve.

1шт.

7

394175R1

PISTON

manifold relief valve (for service for 394175R1, PISTON, order 1 - 531174R1, SPRING & 1 - 531175R1, PISTON)

1шт.

7

531175R1

PISTON

manifold relief valve (for use on 375 Windrower built March, 1970 & since)

1шт.

8

394174R1

SPRING

manifold relief valve (for service for 394174R1, SPRING, order 1 - 531174R1, SPRING & 1 - 531175R1, PISTON)

1шт.

8

531174R1

SPRING

manifold relief valve (for use on 375 Windrower built March, 1970 & since)

1шт.

9

SPOOL, shuttle valve (NSS) (for service order 1 - 529426R1, HOUSING)

1шт.

10

394176R1

SPRING

manifold shuttle valve

2шт.

11

394173R1

PLUG

manifold shuttle valve

3шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32" shuttle valve plug

3шт.

12

394279R91

KIT

PACKAGE, relief valve shim

1шт.

13

405113R91

VALVE, high pressure relief (NSS) (a component part of 67810C91 or 67807C91, MOTOR)

2шт.

393887R1

BACK-UP RING

RING, valve back-up

4шт.

14

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-3/64 x 1-7/32 x 7/64" relief valve large (a component part of 67810C91 or 67807C91, MOTOR)

2шт.

Not part of manifold valve.

1шт.

15

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1 x 3/32" relief valve small (a component part of 67810C91 or 67807C91, MOTOR)

2шт.

Not part of manifold valve.

1шт.

16

394172R91

HOUSING AND SPOOL, manifold valve (includes 393886R1, WASHERS) (on orders for 394172R91, HOUSING & SPOOL, supply 1 - 529426R1, HOUSING)

1шт.

189297

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

BOLT, 5/16 x 3-3/4"

6шт.

394880R1

WASHER

11/32 x 19/32 x .033

6шт.

16

529426R1

HOUSING

manifold valve

1шт.

189297

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

BOLT, 5/16 x 3-3/4"

6шт.

Not part of manifold valve.

1шт.

394880R1

WASHER

11/32 x 19/32 x .083

6шт.

Not part of manifold valve.

1шт.

393886R1

WASHER

WASHER, port back-up

2шт.

393884R91

KIT

PACKAGE, manifold valve housing seal, composed of, (2) WASHER 393886R1, (2) O-RING 383219R1, (1) O-RING 610547C1

1шт.

393885R91

GASKET KIT

PACKAGE, relief valve seal, (4) RING 393887R1, (2) O-RING 20947R1, (2) O-RING 297459R1

1шт.
