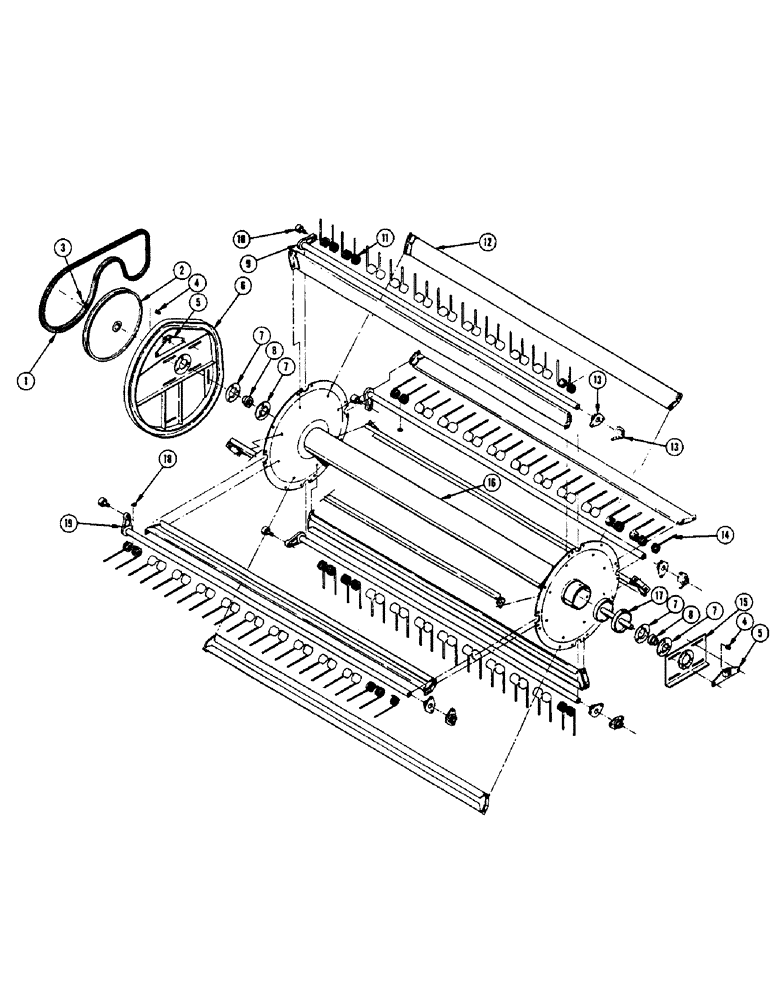

Запчасти Case IH 650 (20) - PICK-UP REEL

1

FHO55228

BELT - reel drive

1шт.

2

FH297671

SHEAVE - reel drive

1шт.

3

FHO61424

KEY

- gib

1шт.

4

FH312876

TRUNNION

2шт.

5

FH312868

BRACKET - adjustment

2шт.

6

FH288381

TRACK - cam

1шт.

7

O650CB

X

FLANGE - reel bearing

4шт.

8

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - (Reel tube)

2шт.

O697CB

X

COLLAR

1шт.

9

FH297978

TUBE - tine

2шт.

10

FH710426

BEARING - cam follower

4шт.

11

FH750075

TINE

- double

44шт.

12

FH297630

BAT - reel

8шт.

13

FH308171

BEARING - tine tube

8шт.

14

FH750083

TINE - single

2шт.

15

FH288399

PLATE - reel mounting

1шт.

16

FH297853

TUBE - reel

1шт.

17

FH297770

SHAFT - reel tube

1шт.

18

FH261024

CLIP

- tine

44шт.

19

FH297952

TUBE - tine

2шт.

B17110

KIT - decals

1шт.

321-8

DECAL

#15 EAGLE DECALS

1шт.

321-11

TRADE MARK DECALS

1шт.

321-48

BE CAREFUL DECALS

1шт.

321-348

DECAL

NEUTRAL DECALS

1шт.

321-262

DONALDSON - (Air cleaner) DECALS

1шт.

321-266

DECAL

CASE ADDRESS DECALS

1шт.

321-831

ATTACH GROUND TO POSITVE TERMINAL DECALS

1шт.

321-835

STEERING - etc. DECALS

1шт.

321-840

TEMPERATURE SAFETY SWITCH DECALS

1шт.

321-841

REMOVE ENGINE COVER PLATE DECALS

1шт.

321-842

WISCONSIN INSIGNIA DECALS

1шт.

321-861

PATENTS DECALS

1шт.

321-862

WARNING DECALS

1шт.

321-868

NOTICE "DEFLATE TIRE" - etc.DECALS

3шт.

321-869

CASE DECALS

1шт.

321-870

CASE DECALS

1шт.
