(20.07.02[1]) - MOTOR AND HOSES, DOUBLE KNIFE DRIVE, PIN YAZB01204 AND AFTER

Запчасти Case IH DH362 (20.07.02[1]) - MOTOR AND HOSES, DOUBLE KNIFE DRIVE, PIN YAZB01204 AND AFTER (07) - HYDRAULICS

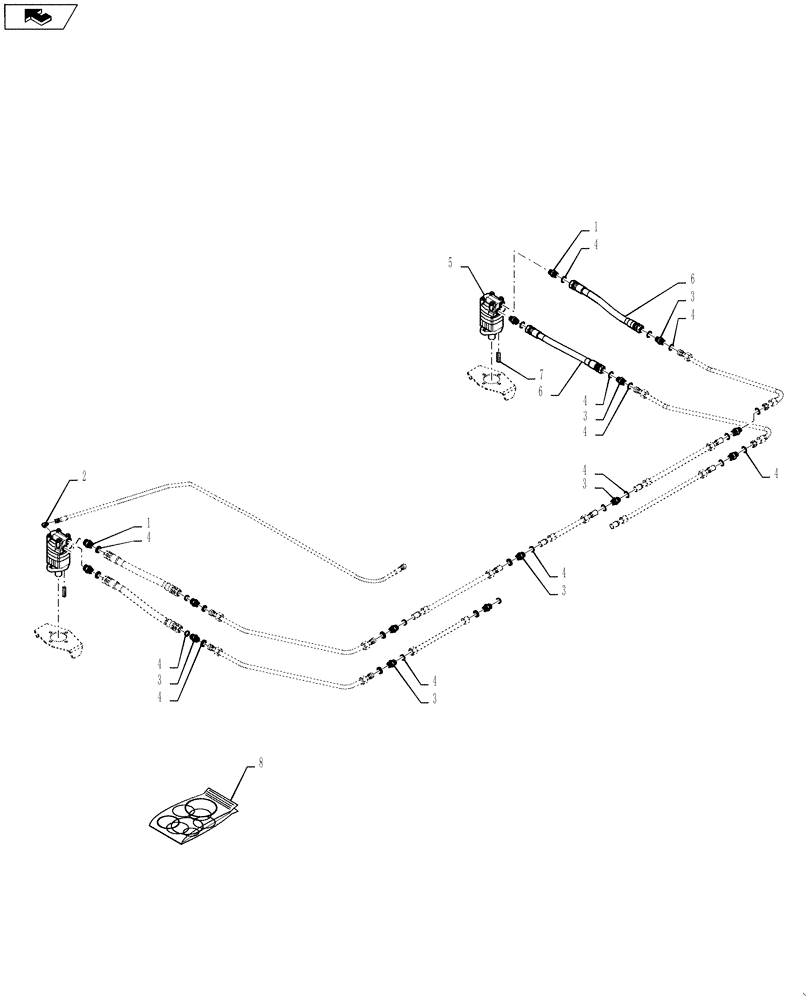

Схема запчастей Case IH DH362 - (20.07.02[1]) - MOTOR AND HOSES, DOUBLE KNIFE DRIVE, PIN YAZB01204 AND AFTER (07) - HYDRAULICS
8
4
3
home
6
4
4
4
6
5
4
3
3
4
4
3
4
4
4
1
2
7
4
3
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

144124

HYD CONNECTOR,1-1/16" - 12 JIC x 7/8" - 14 ORB

4шт.

2

216773

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

1шт.

3

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

11шт.

4

84370318

CLIP

Seal, #12, 37 Deg Flare

26шт.

5

84297724

HYDRAULIC MOTOR

2шт.

5

84297724R

REMAN-HYD MOTOR

DH182, DH362, DH212, DH252, DH302 all PIN YAZB01204 AND AFTER (1/09-)

2шт.

5

84297724C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

6

84391398

HYDRAULIC HOSE,19.05mm ID x 457.2mm L

18" Long

2шт.

7

87482

KEY

2шт.

8

87495627

SEAL KIT

For Hyd. Motor 84297724

2шт.
