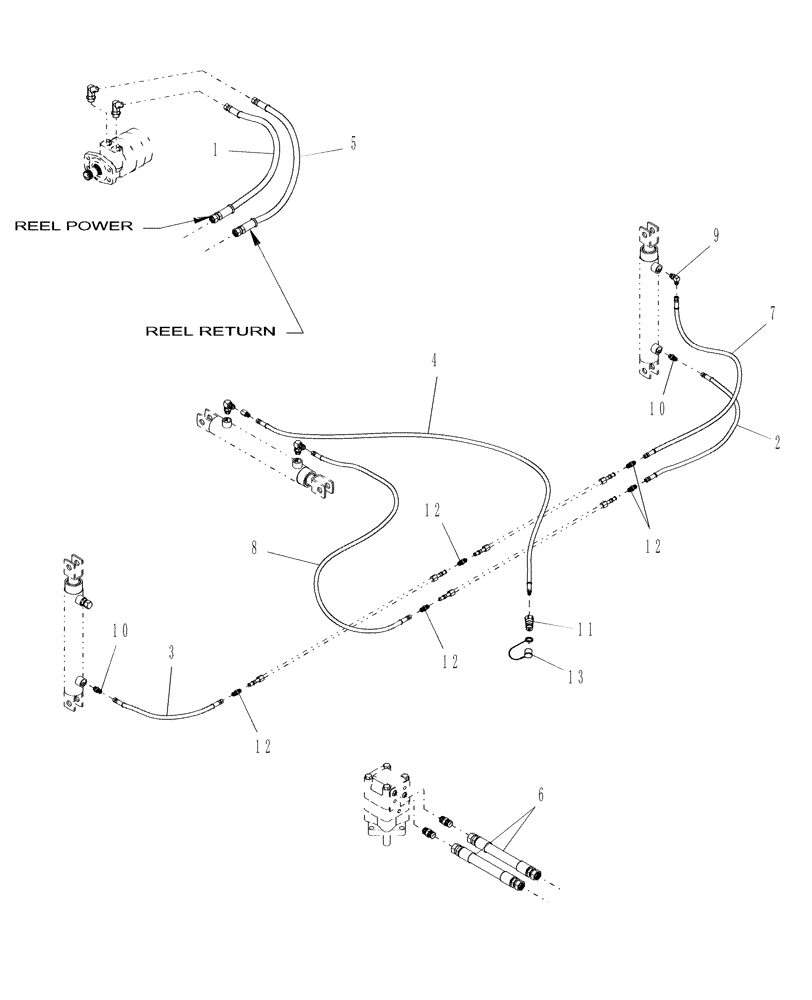

Запчасти Case IH DH362 (20.07.03[2]) - HYDRAULICS, REEL LIFT, SPLIT REEL (07) - HYDRAULICS

1

87052683

HOSE ASSY.

1шт.

2

86599675

HYDRAULIC HOSE

1шт.

3

86566524

HYDRAULIC HOSE,0.75" ID x 30.00"

1шт.

4

87052682

HOSE ASSY.

1шт.

5

87052005

HYDRAULIC HOSE

1/2" x 110"

1шт.

6

86705078

HYDRAULIC HOSE,0.75" ID x 17.00"

3/4" x 17"

2шт.

7

87015358

HYDRAULIC HOSE,6.35 mm ID x 1016.00 mm

1шт.

6

84391398

HYDRAULIC HOSE,19.05mm ID x 457.2mm L

3/4" x 18", Start Serial: YAZB01204

1шт.

8

86900178

HYDRAULIC HOSE,0.38" ID x 50.00"

1шт.

9

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: O-Ring

3шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

10

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

11

86564905

COUPLING

1шт.

12

86563528

HYD CONNECTOR

5шт.

13

86564910

DUST CAP

1шт.

14

86595672

ORIFICE

1шт.
