(20.13.03[3]) - REEL, TINE BARS, 18 FT

Запчасти Case IH HDX182 (20.13.03[3]) - REEL, TINE BARS, 18 FT (58) - ATTACHMENTS/HEADERS

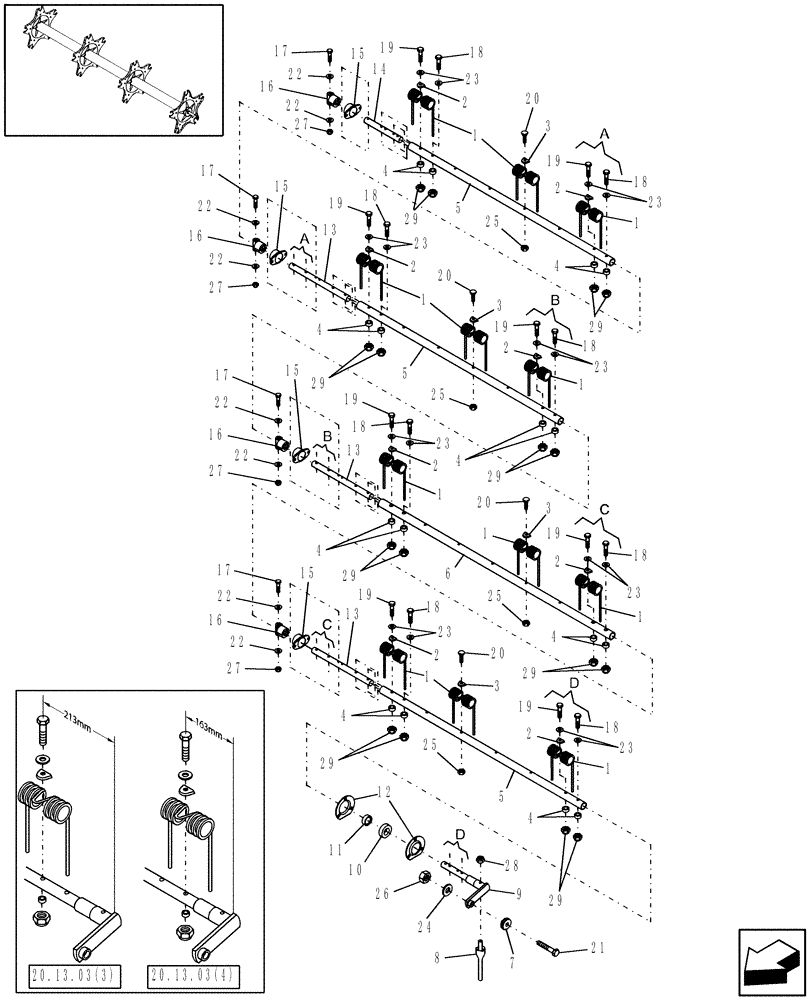

Схема запчастей Case IH HDX182 - (20.13.03[3]) - REEL, TINE BARS, 18 FT (58) - ATTACHMENTS/HEADERS
29
15
22
29
10
18
2
2
23
1
22
18
29
1
13
23
21
7
27
16
17
15
23
19
27
6
8
3
22
4
25
20
22
18
16
18
23
20.13.03(3)
5
29
4
29
4
25
1
29
15
18
18
22
29
19
1
27
29
4
19
16
2
12
19
4
15
23
1
3
18
5
23
23
20
2
11
13
19
4
16
3
9
27
2
4
22
19
20.13.03(4)
28
24
23
1
19
13
2
2
17
14
17
1
22
26
3
17
4
20
19
2
1
1
25
18
22
5
20
25
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86523292

REEL TINE

25шт.

2

86643729

CLIP

8шт.

3

772028

CLIP

17шт.

4

133095

SPACER,10.32mm ID x 15.85mm OD x 7.9mm L

16шт.

5

86633083

PIPE

Tine, 48-3/4" Long

3шт.

6

86633087

PIPE

Tine, 53-9/16" Long

1шт.

7

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

1шт.

8

86643210

TINE

1шт.

9

86633098

SHAFT

1шт.

9

87041758

SHAFT ASSY.

Will Supercede 86633098 In This Application. Has Ouboard Holes Only

1шт.

10

84484181

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

Ball

1шт.

10

84484181GV

BEARING ASSY

Value, Ball Bearing

1шт.

11

557995R11

COLLAR

1шт.

12

86636169

FLANGED BEARING

2шт.

13

86633095

SHAFT

Center

3шт.

14

86633092

SHAFT

Right

1шт.

15

86524321

HOUSING

4шт.

16

87045794

BUSHING,25.4mm ID x 44.2mm OD x 54.9mm L

4шт.

17

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

4шт.

18

426-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

8шт.

19

86575418

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

8шт.

20

433-532

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2", Gr 5

17шт.

21

121831

BOLT

Cap, HH, G2, 5/8"-16 UNF x 2-1/4"

1шт.

22

495-11028

WASHER,1/4", SAE

8шт.

23

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

16шт.

24

492-11062

BEARING WASHER,5/8"

1шт.

25

425-105

NUT,5/16"-18, G5

17шт.

26

425-1110

NUT,5/8"-18, G5

1шт.

27

280129

NUT,1/4"-20

4шт.

28

232-4145

LOCK NUT,5/16"-18, GC

1шт.

29

232-4146

NUT,3/8"-16, GC

16шт.
