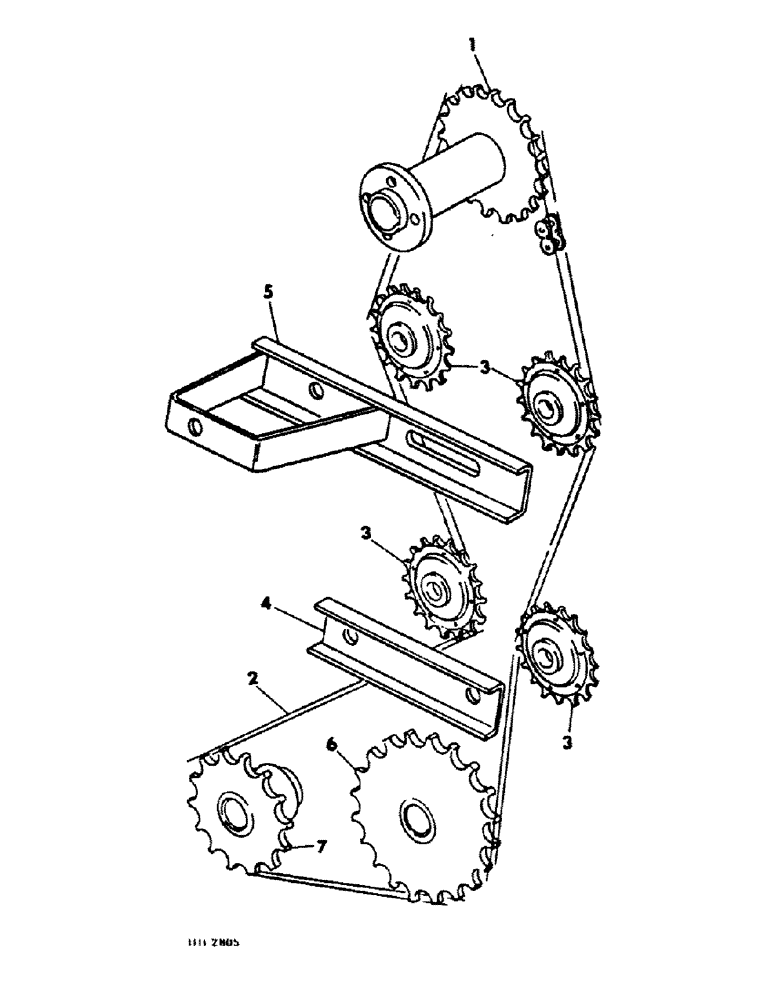

Запчасти Case IH DUAL (C-10) - DUAL AUGER, AUGER LH DRIVE

1

831876C1

SPROCKET ASSY.

SPROCKET ASSY, auger drive LH, for connecting parts refer to header drive

1шт.

Q3936

KEY,Gib, 5/16" Sq x 2 1/2"

5/16 x 2-1/2 gib hd

1шт.

2

CHAIN ASSY, auger drive use 161 links of 5/8 inch pitch roller chain from 10 ft roll 1791-D and add one connecting link 1310-D

1шт.

1310D

LINK

#50 single pitch connecting

1шт.

3

565442R91

SPROCKET

17T auger drive chain tightener

4шт.

4

831945C1

CHANNEL

chain guide front

1шт.

486180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

BOLT, 1/2-13/x 2-1/4 crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178374R1

WASHER

.531 x 1.250 x .054

2шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

.531 sq x 1.250 x .105

2шт.

20601R1

WASHER

.531 x 1.250 x .105 flat

2шт.

5

832147C1

SUPPORT

ASSY, knife drive rear

1шт.

598815R1

CARRIAGE BOLT

BOLT, 1/2-13 x 2-1/2 crg

1шт.

4861801R1

BOLT, 1/2-13 x 2-1/4 crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178374R1

WASHER

.531 x 1.250 x .054

2шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

.531 sq x 1.250 x .105

2шт.

6

609762R21

SPROCKET ASSY.

SPROCKET ASSY, 30T rear auger driven, for connecting parts refer to auger and shafts

1шт.

249

KEY,Gib, 1/4" Sq x 1 3/4"

1/4 x 1-3/4 gib hd

2шт.

7

609747R21

SPROCKET ASSY.

SPROCKET ASSY, front auger driven 20T, for connecting parts refer to auger and shafts

1шт.

249

KEY,Gib, 1/4" Sq x 1 3/4"

1/4 x 1-3/4 gib hd

2шт.

609836R1

WASHER

1.031 x 1.750 x .054 as reqd

1шт.
