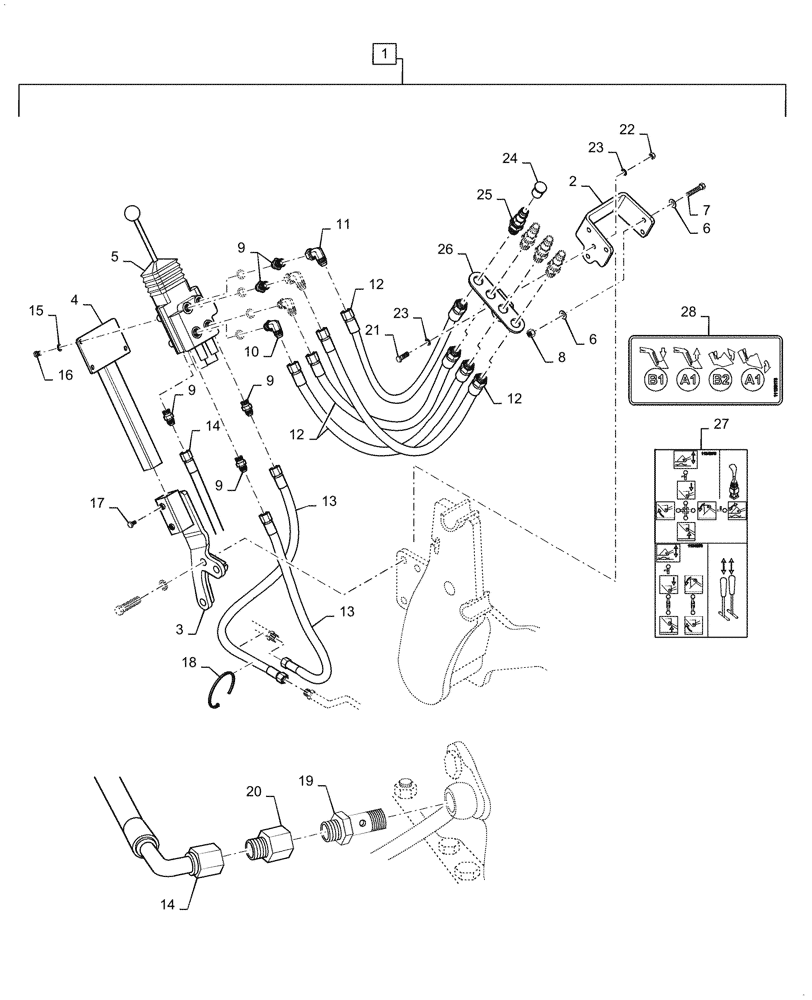

Запчасти Case IH L555 (35.600.AQ[06]) - VAR - 713714006 - HYDRAULIC VALVE KIT, HYDR LINES (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

Hydraulic Valve Kit, Incl 2 - 28, Order Through Wholegoods 713714006

1шт.

2

LDR60006615

BRACKET

Hydraulic Hose Mounting

1шт.

3

LDR10411582

BRACKET

Control Valve Support

1шт.

4

LDR10391840

BRACKET

Control Valve Mounting

1шт.

5

LDR10550401

VALVE

Control

1шт.

6

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

4шт.

7

LDR5002079

SCREW

M10 x 50mm L

2шт.

8

LDR5011554

NUT,M10

2шт.

9

LDR5028078

ADAPTER

3/4" UNF x 3/4" JIC

5шт.

10

LDR5028181

ADAPTER

3/4" UNF x 3/4" JIC

2шт.

11

LDR5027421

ADAPTER

3/4" JIC

2шт.

12

LDR9031621

FLEXIBLE HOSE

12" OD x 1200mm L

4шт.

13

LDR9031632

FLEXIBLE HOSE

1/2" OD x 1000mm L

2шт.

14

LDR9031622

FLEXIBLE HOSE

2000mm L

1шт.

15

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

3шт.

16

LDR5001902

SCREW

5/16" x 1/2" L

3шт.

17

LDR5002058

SCREW

M8 x 16mm L

3шт.

18

LDR5033606

CABLE TIE

6шт.

19

LDR11120479

BANJO BOLT

1-1/16" JIC x M22 x 1.5

1шт.

20

LDR20717257

ADAPTER

7/8" JIC x 1-1/16" JIC

1шт.

21

LDR5002053

SCREW,M8 x 30mm L

2шт.

22

LDR5011053

NUT

M8

2шт.

23

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

4шт.

24

LDR5040090

DUST CAP

Hydraulic Connector

4шт.

25

LDR5044983

QUICK MALE COUPLING

4шт.

26

LDR10414057

BRACKET

Support, Quick Coupling

1шт.

27

LDR11134370

DECAL

Joystick Operation

1шт.

28

LDR11135173

DECAL

Bucket Operation

1шт.
