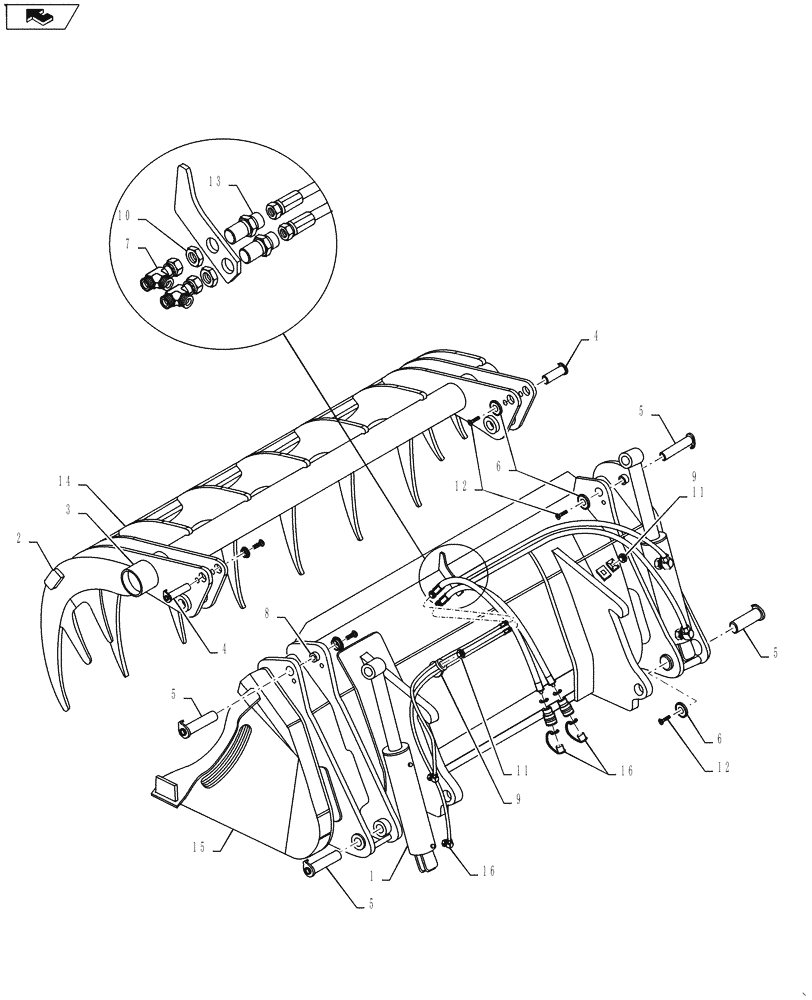

Запчасти Case IH L795 (82.300.AN[18]) - VAR - 730796006 - 102" POWER GRAB T7 - SILAGE BUCKET WITH GRAPPLE (82) - FRONT LOADER & BUCKET

1

LDR12707510

LIFT CYLINDER,Double Acting, 50mm Rod, 285mm Stroke

2шт.

2

LDR11261472

COVER

Plastic Tube

2шт.

3

LDR11261471

COVER

Plastic

2шт.

4

LDR9020073

PIVOT PIN

2шт.

5

LDR9020063

PIVOT PIN

4шт.

6

LDR5215131

CAP,Locking Cover

Cover

6шт.

7

LDR5028031

COUPLING

2шт.

8

LDR5018514

BUSHING,35mm L

4шт.

9

LDR5016968

CLAMP BRACKET

Hose

2шт.

10

LDR5011757

NUT

2шт.

11

LDR5011553

NUT,M8

M8

2шт.

12

LDR5004917

SCREW,MC6S

6шт.

13

LDR1120159

ADAPTER

2шт.

14

LDR11261459

HEAD

Grab

1шт.

15

LDR11262051

BUCKET

1шт.

16

LDR9031432

HOSE KIT

1шт.
