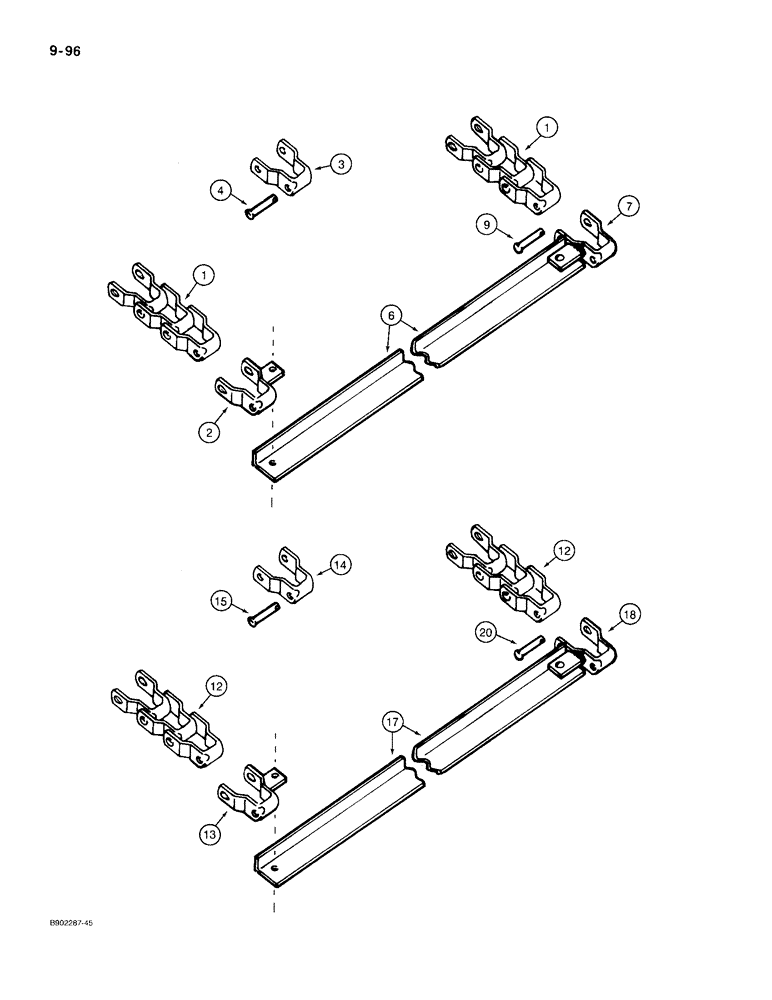

Запчасти Case IH 550 (9-096) - APRON CHAIN, PINTLE TYPE, MODEL 550 ONLY (09) - CHASSIS/ATTACHMENTS

820381C91

CHAIN (AG)

CHAIN ASSEMBLY - apron, complete including angles, pintle type, 667X, optional with 820397C91 chain assembly, see below

1шт.

For chain assembly, use (108) plain links and assemble in sequence of (1) space of (2) connecting links, (1) plain link and (1) attaching link then (21) spaces of (5) plain links and (1) attaching link followed by (2) plain links.

1шт.

820382C91

SET

CHAIN ASSEMBLY - includes plain and attaching links

1шт.

1

NSS

NOT SOLD SEPARAT

CHAIN - plain links, 10 foot long, CSD 667X

2шт.

2

820383C1

LINK

- 667X pintle type, attaching

44шт.

3

820667C1

LINK

- 667X pintle type, connecting

220шт.

4

821370C1

PIN

- chain coupler, 7/16 inch diameter

2шт.

5

187352

COTTER PIN,1/8" x 3/4", Stainless

Pin, Split (Cotter), , not shown 1/8" x 3/4", Stainless

2шт.

820392C92

ANGLE

ASSEMBLY - 667X pintle type apron with attaching links

22шт.

6

NSS

NOT SOLD SEPARAT

ANGLE - apron

1шт.

7

820383C1

LINK

- 667X pintle type, attaching

2шт.

8

106915

RIVET,Tr Hd, 5/16" x 7/8"

- truss head, 5/16 x 7/8", Not shown

2шт.

9

821370C1

PIN

- chain coupler, 7/16 inch diameter

4шт.

10

187352

COTTER PIN,1/8" x 3/4", Stainless

Pin, Split (Cotter), , not shown 1/8" x 3/4", Stainless

4шт.

11

106915

RIVET,Tr Hd, 5/16" x 7/8"

- truss head, 5/16 x 7/8", Not shown

44шт.

820397C91

CHAIN (AG)

CHAIN ASSEMBLY - apron, complete including angles, pintle type, 667J, optional with 820381C91 chain assembly, see above

1шт.

For chain assembly, use (108) plain links and assemble in sequence of (1) space of (2) connecting links, (1) plain link and (1) attaching link then (21) spaces of (5) plain links and (1) attaching link followed by (2) plain links.

1шт.

820315C91

CHAIN (AG)

CHAIN ASSEMBLY - includes plain and attaching links

1шт.

12

NSS

NOT SOLD SEPARAT

CHAIN - plain links, 10 foot long, CSD 667X

2шт.

13

820366C1

LINK

- 667J pintle type, attaching

44шт.

14

820376C1

LINK

- 667J pintle type, connecting

220шт.

15

821371C1

PIN

- chain coupler, 3/8 inch diameter

2шт.

16

187352

COTTER PIN,1/8" x 3/4", Stainless

Pin, Split (Cotter), , not shown 1/8" x 3/4", Stainless

2шт.

820434C92

ANGLE

ASSEMBLY - 667J pintle type apron with attaching links

22шт.

17

NSS

NOT SOLD SEPARAT

ANGLE - apron

1шт.

18

820366C1

LINK

- 667J pintle type, attaching

2шт.

19

106915

RIVET,Tr Hd, 5/16" x 7/8"

- truss head, 5/16 x 7/8", Not shown

2шт.

20

821371C1

PIN

- chain coupler, 3/8 inch diameter

4шт.

21

187352

COTTER PIN,1/8" x 3/4", Stainless

Pin, Split (Cotter), , not shown 1/8" x 3/4", Stainless

4шт.

22

106915

RIVET,Tr Hd, 5/16" x 7/8"

- truss head, 5/16 x 7/8", Not shown

44шт.
