(03-01) - FUEL LINES AND FUEL FILTER

Запчасти Case IH 435 (03-01) - FUEL LINES AND FUEL FILTER (03) - FUEL SYSTEM

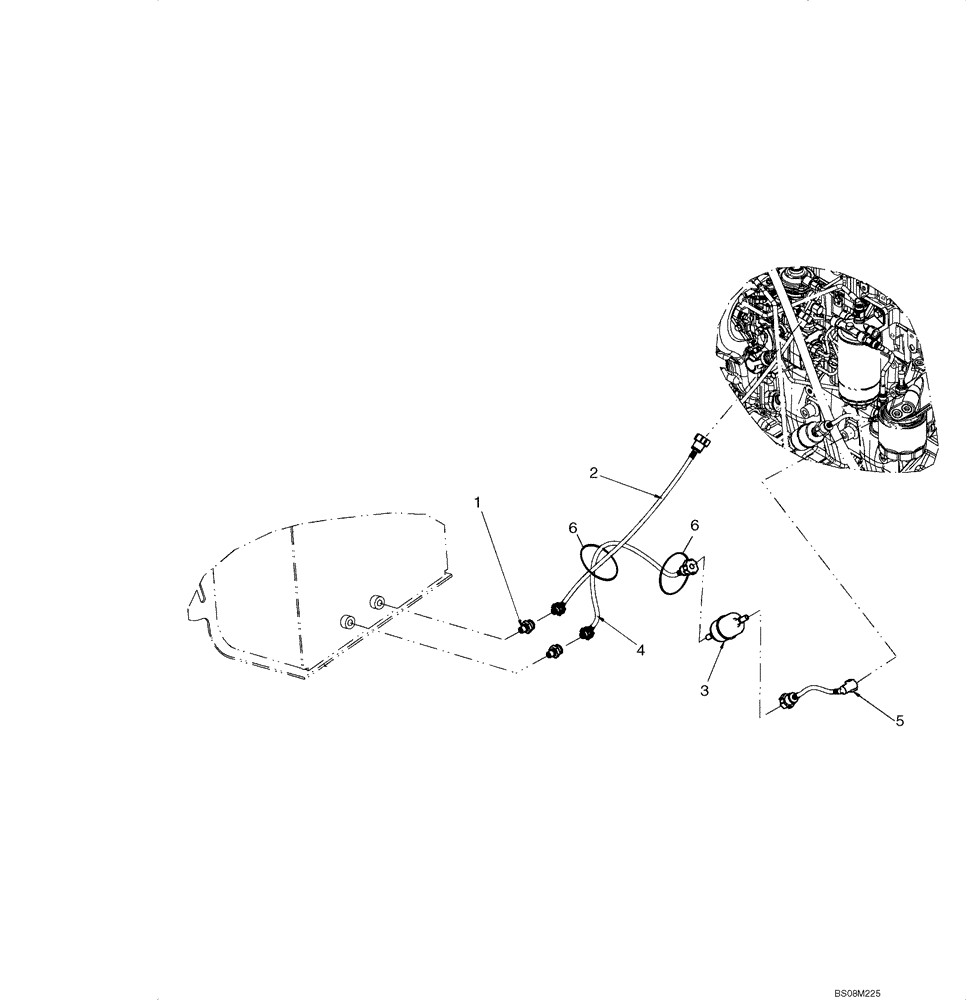

Схема запчастей Case IH 435 - (03-01) - FUEL LINES AND FUEL FILTER (03) - FUEL SYSTEM
4
2
6
1
3
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87431323

ADAPTER

2шт.

2

87524605

LINE

Fuel Line, 625mm (24 5/8 in.); No Longer Used, Order 87717487

1шт.

2

87717487

HOSE

Fuel Line, 738mm (29 1/16 in.)

1шт.

3

87548612

FUEL FILTER

1шт.

4

87612758

HOSE

Fuel Line, 430mm (16 15/16 in.)

1шт.

5

87612760

HOSE

Fuel Line, 154mm (6 1/16 in.)

1шт.

6

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.
