(39.100.AB[01]) - CHASSIS (SR175) BEFORE FEB 6, 2012

Запчасти Case IH SR175 (39.100.AB[01]) - CHASSIS (SR175) BEFORE FEB 6, 2012 (39) - FRAMES AND BALLASTING

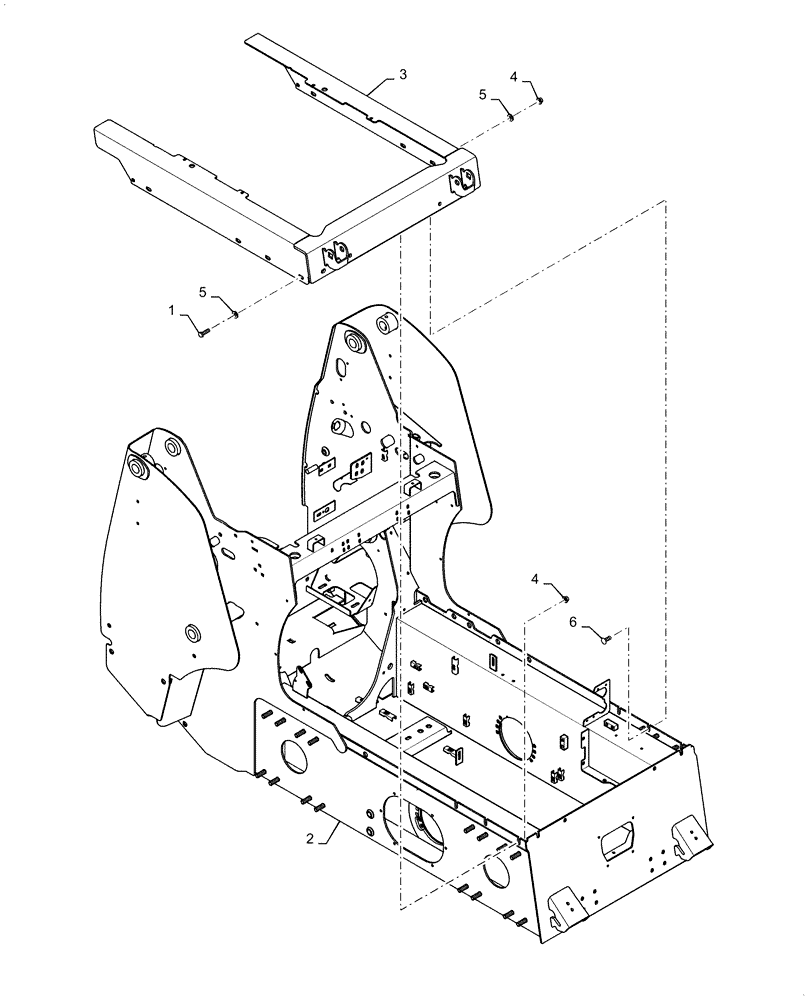

Схема запчастей Case IH SR175 - (39.100.AB[01]) - CHASSIS (SR175) BEFORE FEB 6, 2012 (39) - FRAMES AND BALLASTING
2
1
6
4
3
4
5
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

11шт.

2

84200511

Chassis

FRAME

1шт.

3

84309634

Chassis, Upper

DRAWBAR FRAME

1шт.

4

86512497

FLANGE NUT,M12 x 1.75, Cl 10

12шт.

5

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

12шт.

6

87035385

CARRIAGE BOLT,Sht Sq Nk, M12 x 35mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 6
