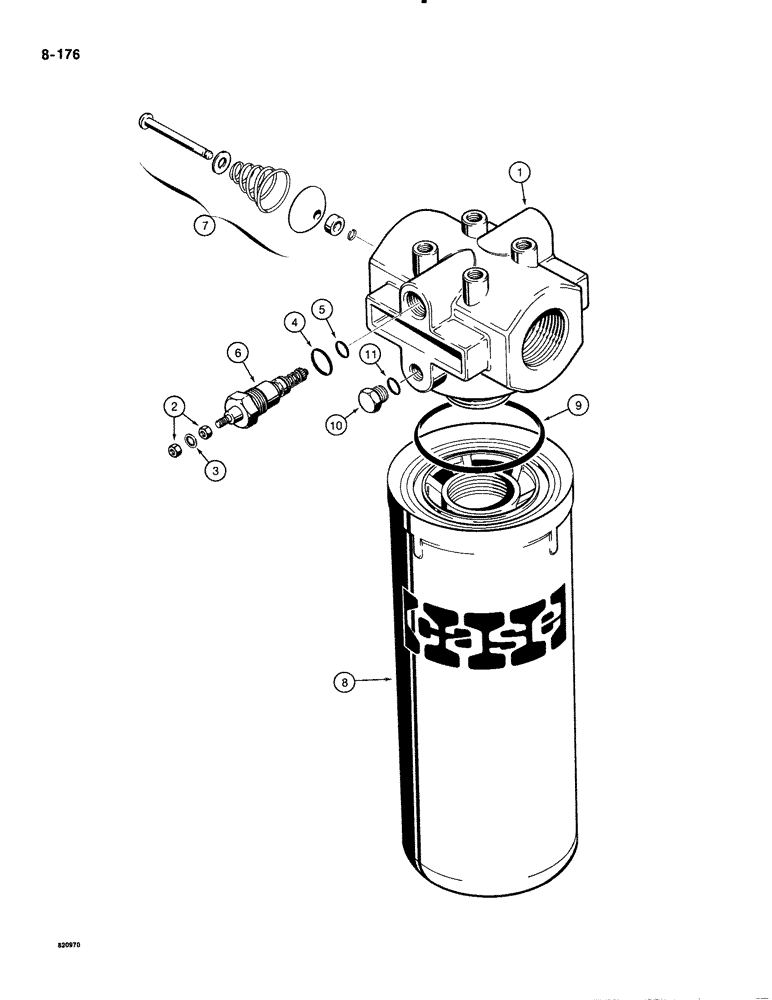

Запчасти Case IH 1835B (8-176) - HYDRAULIC OIL FILTERS (08) - HYDRAULICS

D126666

FILTER, ENGINE OIL

FILTER ASSEMBLY hydraulic oil, uses head with pipe threads, if used

2шт.

D131330

FILTER, ENGINE OIL

FILTER ASSEMBLY hydraulic oil, uses head with straight threads, if use, Includes: Ref. 1-11

2шт.

See Figs. 6-130 and 6-134 for filter hydraulic circuits.

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD filter, pipe threads, used with D126666 filter assembly

1шт.

See Figs. 6-130 and 6-134 for filter hydraulic circuits.

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD filter, straight threads, used with D131330 filter assembly

1шт.

See Figs. 6-130 and 6-134 for filter hydraulic circuits.

1шт.

N7929

INDICATOR

RESTRICTION INDICATOR ASSEMBLY filter, electric, Includes: Ref.2-6

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

4

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

5

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Middle, small

1шт.

6

NSS

NOT SOLD SEPARAT

RESTRICTION INDICATOR electric

1шт.

7

NSS

NOT SOLD SEPARAT

BYPASS VALVE filter

1шт.

D126922

FILTER, ELEMENT

ELEMENT ASSEMBLY filter, Includes: Ref.8-9

1шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT filter

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

filter element to head

1шт.

10

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 11 Hex Hd, 9/16"-18 ORB

1шт.

11

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, plug

1шт.
