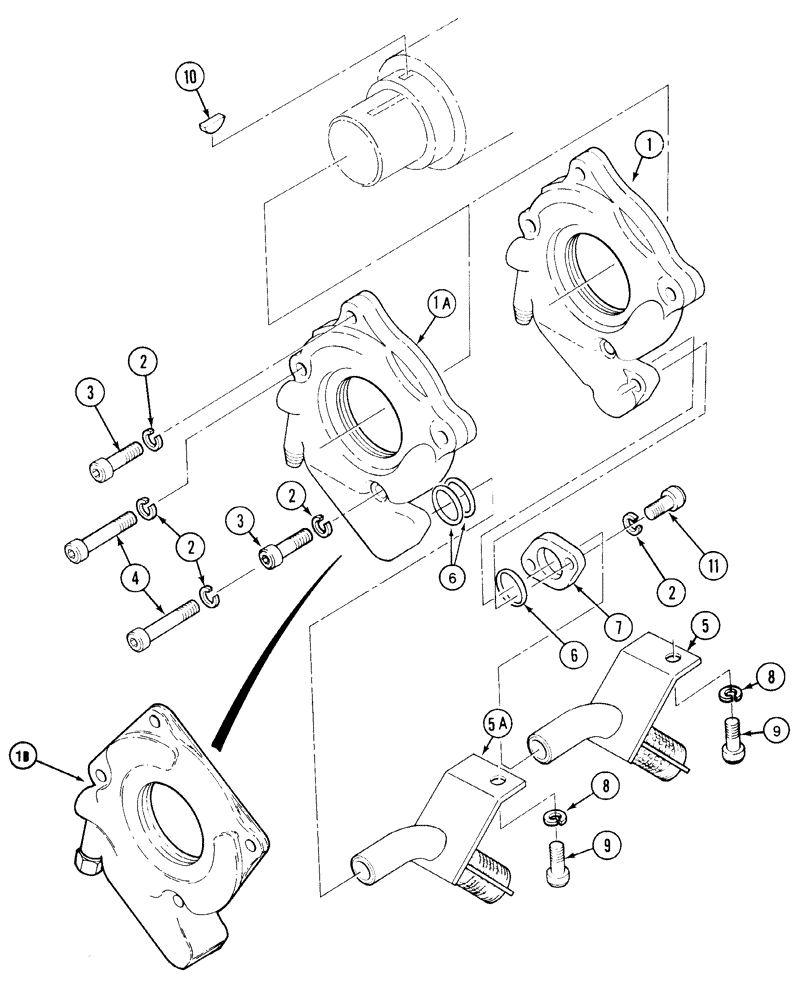

Запчасти Case IH 1835C (2-64) - OIL PUMP, TM-20 GASOLINE ENGINE (02) - ENGINE

1

1959747C1

PUMP

oil, no longer available, order P/N 1959978C2 pump, 2, P/N 1959749C2 O-rings and 1, P/N 1959979C1 tube

1шт.

1a

1959978C1

PUMP, ENGINE OIL

PUMP oil, Replaces: P/N 1959747C1 pump, no longer available, order P/N 1959978C2 pump, 2, P/N 1959749C2 O-rings and 1, P/N 1959979C1 tube

1шт.

1b

1959978C2

PUMP, ENGINE OIL

PUMP oil, Replaces: P/N 1959978C1 pump

1шт.

2

892-16008

LOCK WASHER,M8, Hvy

lock, 8 mm

6шт.

3

864-8030

HEX SOC SCREW,M8 x 30mm, Cl 8.8

2шт.

4

864-8045

HEX SOC SCREW,M8 x 45mm, Cl 8.8

BOLT, hex socket, 8-1.25 x 45 mm, 8.8

2шт.

5

1959748C1

TUBE

oil pump inlet, used with Ref. 1 only

1шт.

5a

1959979C1

TUBE,22.23 mm OD

oil pump inlet, used with Ref. 1A and 1B only

1шт.

6

1959749C2

O-RING

oil pump inlet tube

2шт.

7

1959750C1

ADAPTER

oil pump inlet tube

1шт.

8

892-16010

LOCK WASHER,M10, Hvy

lock, 10 mm

1шт.

9

864-10020

HEX SOC SCREW,M10 x 20mm, Cl 8.8

BOLT - hex socket, 10 - 1.5 x 20 mm, Cl 8.8

1шт.

10

1959751C1

KEY

Woodruff, oil pump drive

1шт.

11

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

SCREW, Hex Soc Hd, M8 x 25, 8.8

2шт.
