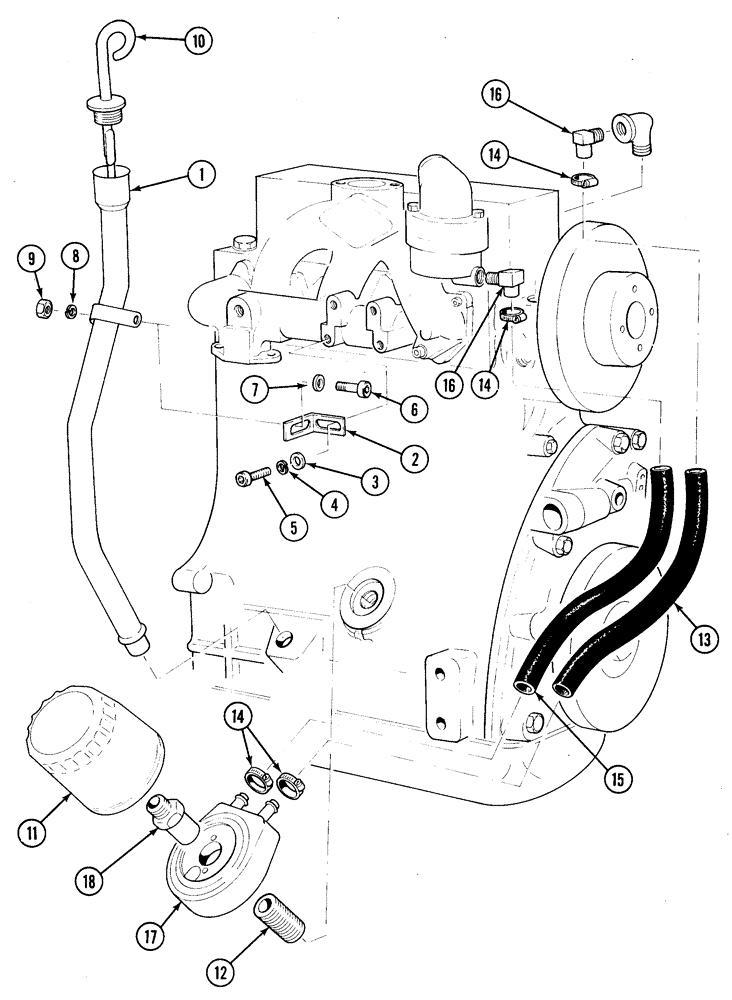

Запчасти Case IH 1835C (2-66) - OIL FILL TUBE, OIL FILTER AND COOLER, TM-20 GASOLINE ENGINE (02) - ENGINE

1

1959752C1

TUBE,25.4 mm OD, 524 mm Length

oil fill, includes mounting clamp

1шт.

2

1959888C1

BRACKET

oil fill tube

1шт.

3

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

4

892-16008

LOCK WASHER,M8, Hvy

lock, 8 mm

1шт.

5

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

hex socket, 8-1.25 x 20 mm

1шт.

6

864-10025

HEX SOC SCREW,M10 x 25mm, Cl 8.8

BOLT hex socket, 10-1.5 x 25 mm

1шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

1шт.

8

892-16010

LOCK WASHER,M10, Hvy

lock, 10 mm

1шт.

9

825-1410

NUT,M10, Cl 8

1шт.

10

1959756C1

DIPSTICK

engine oil

1шт.

11

1959757C1

FILTER

engine oil

1шт.

12

1959758C1

ADAPTER

straight, special

1шт.

13

NSS

NOT SOLD SEPARAT

HOSE, 13/1/2 ID x 584 mm/23 inch long, cut from P/N S118466X, if used

1шт.

13

NSS

NOT SOLD SEPARAT

HOSE, 16/5/8 ID x 584 mm/23 inch long, cut from P/N S118576X, if used

1шт.

14

1959764C1

CLAMP

adjusted, special, used with 13 mm/1/2 inch cooler, if used

4шт.

14

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, , Used with 16 mm/5/8" port cooler, If used #12, 0.69/1.25 Type F Worm

4шт.

15

NSS

NOT SOLD SEPARAT

HOSE, 13/1/2 ID x 483 mm/19 inch long, cut from P/N S118466X, if used

1шт.

15

NSS

NOT SOLD SEPARAT

HOSE, 16/5/8 ID X 483 mm/19 inch long, cut from P/N S118576X, if used

1шт.

16

1959762C1

ELBOW

special, 1/2 stem end x 3/8 inch PT, 90°, if used

2шт.

16

217-332

FITTING,90 Degree Elbow, 5/8" Hose Barb x 3/8" Male NPTF

ELBOW, 5/8 stem end x 3/8 inch PT, 90°

2шт.

17

1959759C1

COOLER

engine oil, 13 mm/1/2 inch port, Serial Range: -93060938

1шт.

17

243140A1

COOLER

engine oil, 16 mm/5/8 inch port, Start Serial: 93060938

1шт.

18

1959760C1

CONNECTOR, ELEC

ADAPTER engine oil filter, special

1шт.

S118466X

LARGE HOSE

HOSE bulk, 13/1/2 ID x 7620 mm/300 inch long

1шт.

S118576X

LARGE HOSE,15.88mm ID x 7620mm L

HOSE bulk, 16/5/8 ID x 7620 mm/300 inch long

1шт.
