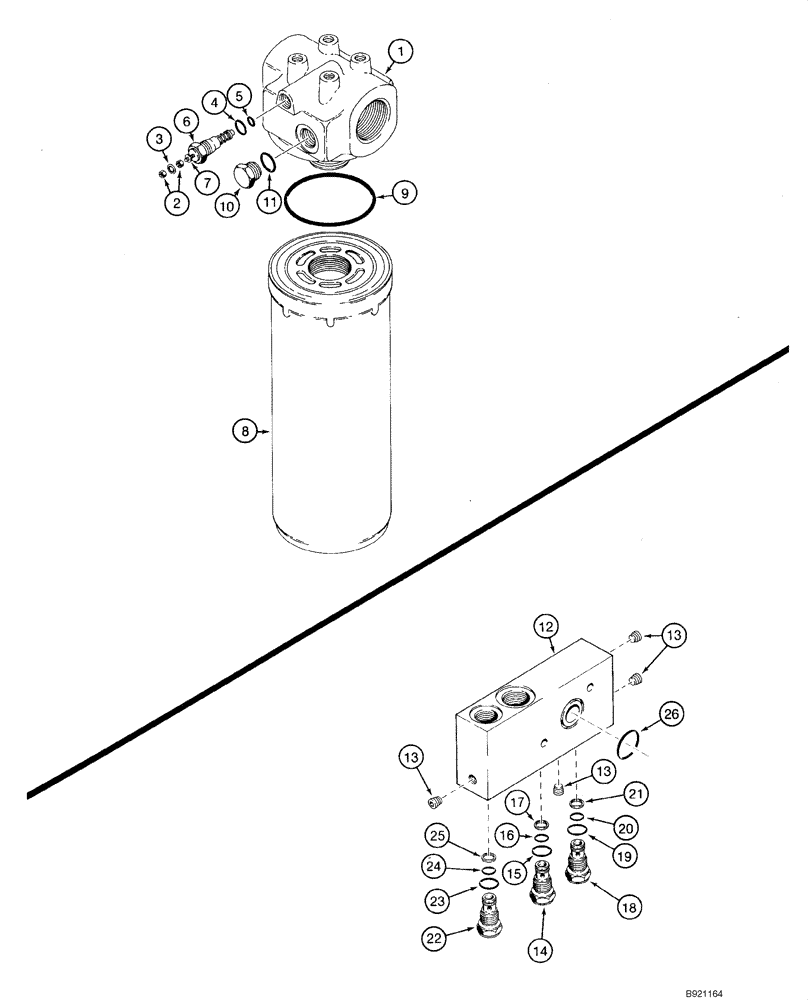

Запчасти Case IH 1840 (08-13) - HYDRAULIC OIL FILTER - CHECK VALVE MANIFOLD (08) - HYDRAULICS

D125507

FILTER

Hydraulic Oil; Incl. 1 - 11; For Mounting, See Figure 08-12

1шт.

1

NSS

NOT SOLD SEPARAT

Head; Filter

1шт.

N13268

PRESSURE SWITCH

Indicator; Restriction; Electric; Incl. 2 - 7

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

6

NSS

NOT SOLD SEPARAT

Indicator; Restriction; Electric

1шт.

7

NSS

NOT SOLD SEPARAT

Washer; Red/White

1шт.

N9025

HYDRAULIC OIL FILTER

Incl. 8 - 9

1шт.

8

NSS

NOT SOLD SEPARAT

Element; Filter

1шт.

9

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

10

76349

PLUG,9/16" - 18 ORB

Incl. 11

1шт.

D137500

MANIFOLD

Check Valve; Incl. 12 - 26; - JAF0098525; Hydrostatic Circuit; Manufactured By Waterman Or Sterling

1шт.

12

NSS

NOT SOLD SEPARAT

Body; Check Valve Manifold

1шт.

13

221-841

PLUG

1/4 in PT; If Used

4шт.

N14519

VALVE

5 psi; Loader Bucket Circuit; Used With Manifold Manufactured By Waterman (blue in color)

1шт.

100501A1

VALVE

5 psi; Loader Bucket Circuit; Used With Manifold Manufactured By Sterling (silver in color)

1шт.

14

NSS

NOT SOLD SEPARAT

Body; Check Valve

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Outer

1шт.

16

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

Inner, Used with manifold manufactured by Waterman

1шт.

16

K692161

O-RING,0.634" ID x 0.76" OD x 0.063"

Small; Inner; Used With Manifold Manufactured By Sterling

1шт.

17

L30443

BACK-UP RING,0.547" ID x 0.049" Width

Inner O-ring; Used With Manifold Manufactured By Waterman

1шт.

17

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

Inner O-ring; Used With Manifold Manufactured By Sterling

1шт.

N14520

VALVE

15 psi; Loader Bucket Circuit; Used With Manifold Manufactured By Waterman

1шт.

100501A1

VALVE

5 psi; Check; Loader Bucket Circuit; Incl. 18 - 21; Used With Manifold Manufactured By Sterling

1шт.

18

NSS

NOT SOLD SEPARAT

Body; Check Valve

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Outer

1шт.

20

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

Inner, Used with manifold manufactured by Waterman

1шт.

20

K692161

O-RING,0.634" ID x 0.76" OD x 0.063"

Small; Inner; Used With Manifold Manufactured By Sterling

1шт.

21

L30443

BACK-UP RING,0.547" ID x 0.049" Width

Inner O-ring; Used With Manifold Manufactured By Waterman

1шт.

21

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

Inner O-ring; Used With Manifold Manufactured By Sterling

1шт.

N14521

VALVE

50 psi; Check; Used With Manifold Manufactured By Waterman

1шт.

100502A1

VALVE

50 psi; Check; Incl. 22 - 25; Used With Manifold Manufactured By Sterling

1шт.

22

NSS

NOT SOLD SEPARAT

Body; Check Valve

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Outer

1шт.

24

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

Inner, Used with manifold manufactured by Waterman

1шт.

24

K692161

O-RING,0.634" ID x 0.76" OD x 0.063"

Small; Inner; Used With Manifold Manufactured By Sterling

1шт.

25

L30443

BACK-UP RING,0.547" ID x 0.049" Width

Inner O-ring; Used With Manifold Manufactured By Waterman

1шт.

25

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

Inner O-ring; Used With Manifold Manufactured By Sterling

1шт.

26

238-5219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
