(02-08) - WATER PUMP SYSTEM, 4-390 ENGINE

Запчасти Case IH 1845C (02-08) - WATER PUMP SYSTEM, 4-390 ENGINE (02) - ENGINE

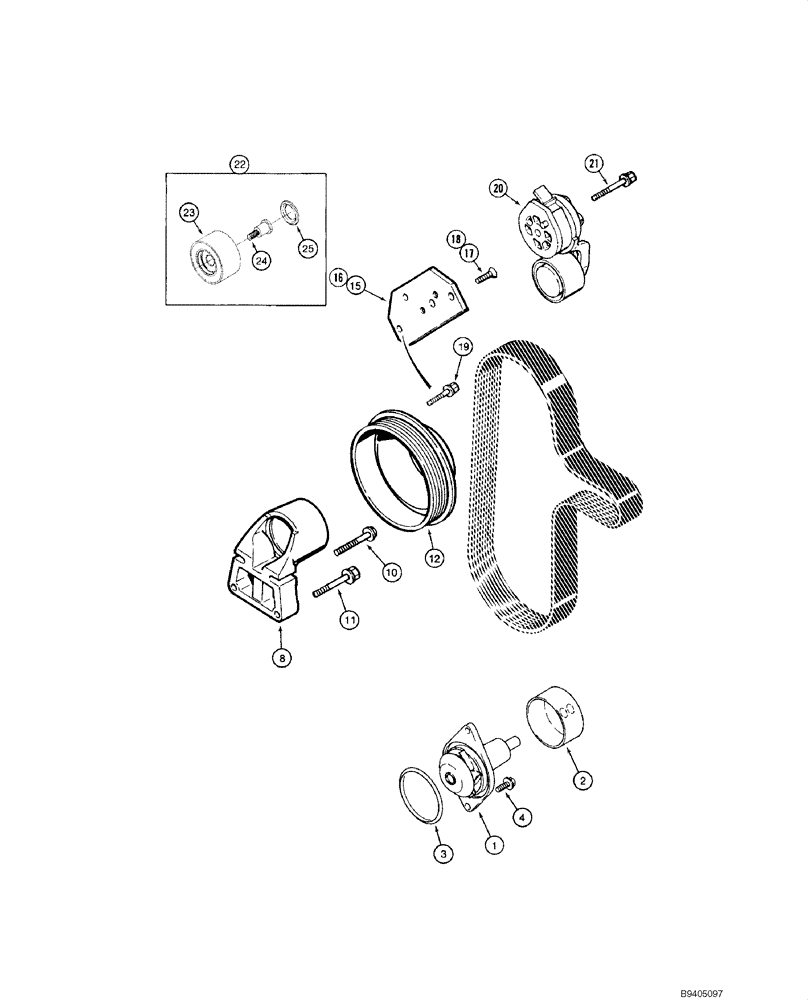

Схема запчастей Case IH 1845C - (02-08) - WATER PUMP SYSTEM, 4-390 ENGINE (02) - ENGINE
25
11
23
1
2
3
19
18
22
8
4
21
12
24
16
20
17
10
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A77703

PUMP, WATER

Replaces A77471; - JAF0041367, Also Order J903820, (4) 627-8030, (4) H426775; JAF0041368 - JAF0066816, Also Order H437716, (4) 614-10030, (4) 496-21041.; Incl. 1 - 3; No Longer Available; Order J286277, See Fig 02-09

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

1845C

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pump Assy

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley

1шт.

3

J906698

RUBBER SEAL,Square, 5.16mm Thk x 88.27mm ID

3-1/2 ID x 3/16; Replaces 238-5341

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

8

J909889

BRACKET

- JAF0041367

1шт.

8

J911205

BRACKET

JAF0041368 -

1шт.

10

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

11

854-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 10.9

2шт.

12

J914463

PULLEY,165.25mm OD

- JAF0041367

1шт.

12

J914462

PULLEY,163mm OD

1шт.

12

87739401

PULLEY,207.26mm OD

European Models, JAF0101487 -; North American 89 DBA Noise Kits; Replaces J914461

1шт.

15

J904550

BRACKET

European Models, - JAF0101486; All North American Models; No Longer Used; For Service Order J925195

1шт.

15

J919985

SUPPORT

European Models JAF0101487 -; No Longer Used; For Service, Order J925207

1шт.

16

J925195

SUPPORT

European Models, - JAF0101486; All North American Models

1шт.

16

J925207

SUPPORT

European Models, JAF0101487 -

1шт.

16

J925196

BRACKET

North American 89 DBA Noise Kits

1шт.

17

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Use with J904550, J919985

2шт.

18

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Use with J925195, J925207

3шт.

19

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

Use with J925195, J925207

1шт.

20

J918944

BELT TENSIONER

Replaces J914086; - JAF0041367, Also Order J903820, (4) 627-8030, (4) H426775; JAF0041368 - JAF0066816, Also Order H437716, (4) 614-10030, (4) 496-21041

1шт.

21

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

1шт.

22

A77817

KIT

Belt Tensioner Pulley; Used to Replace Pulley of J918944; Incl. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

Pulley

1шт.

24

NSS

NOT SOLD SEPARAT

Bolt

1шт.

25

NSS

NOT SOLD SEPARAT

Seal

1шт.
