(90.120.AF) - VAR - 749491 - SEAT, MECHANICAL SUSPENSION, ADJUSTER, WEIGHT

Запчасти Case IH FARMLIFT 742 (90.120.AF) - VAR - 749491 - SEAT, MECHANICAL SUSPENSION, ADJUSTER, WEIGHT (90) - PLATFORM, CAB, BODYWORK AND DECALS

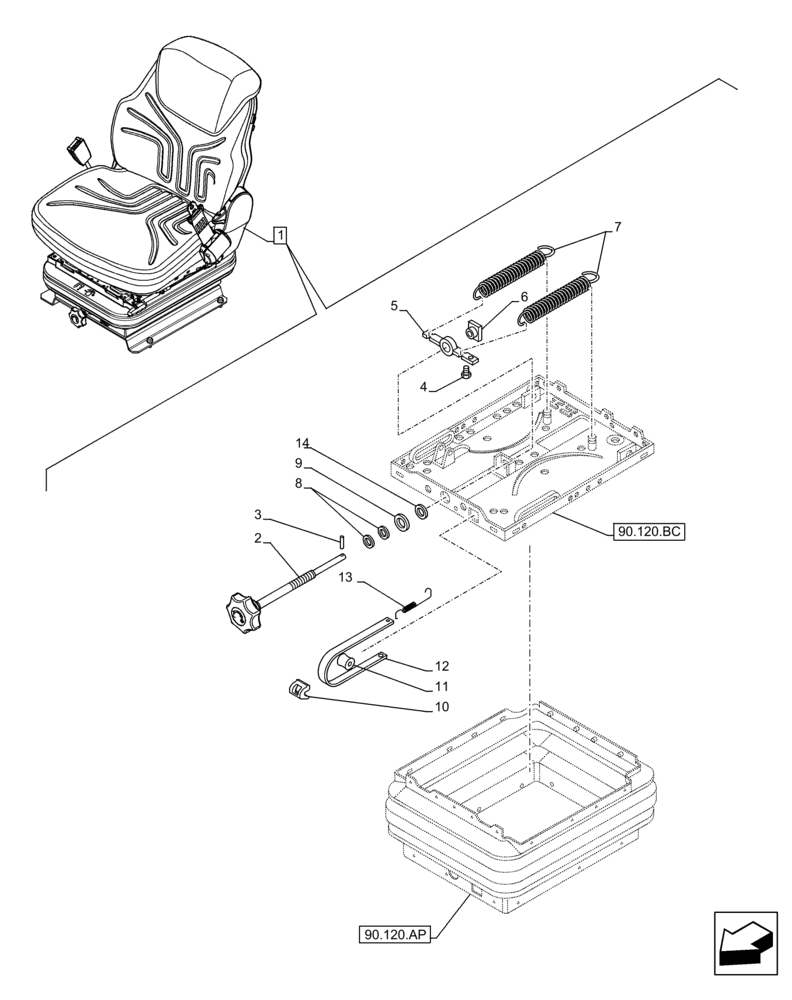

Схема запчастей Case IH FARMLIFT 742 - (90.120.AF) - VAR - 749491 - SEAT, MECHANICAL SUSPENSION, ADJUSTER, WEIGHT (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
12
90.120.bc
11
7
2
3
6
1
5
14
4
9
10
13
90.120.ap
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47444279

DRIVER SEAT

ASSY, Incl 2 - 14

1шт.

See Seat Components also in Figures 55.408.BL (01), 90.120.AC, 90.120.AE, 90.120.AJ, 90.120.AM, 90.120.AP, 90.120.BA, 90.120.BC, 90.120.BH, 90.151.AD (01)

1шт.

2

9966546

ADJUSTMENT SCREW

1шт.

3

82035062

PIN,3mm OD x 16mm L, Slotted

1шт.

4

9958789

PLUG

1шт.

5

9959577

BRACKET

1шт.

6

3225317R1

NUT,Weld, M12

1шт.

7

71491398

SPRING

2шт.

8

9958800

SET OF WASHERS

1шт.

9

446940

RUBBER WASHER

1шт.

10

9958786

GUIDE

1шт.

11

9958785

ROLLER

1шт.

12

457731

INDICATOR

1шт.

13

9958790

SPRING

1шт.

14

85817435

BUSHING

1шт.
