(90.120.BC) - VAR - 749491 - SEAT, MECHANICAL SUSPENSION, SUSPENSION

Запчасти Case IH FARMLIFT 742 (90.120.BC) - VAR - 749491 - SEAT, MECHANICAL SUSPENSION, SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

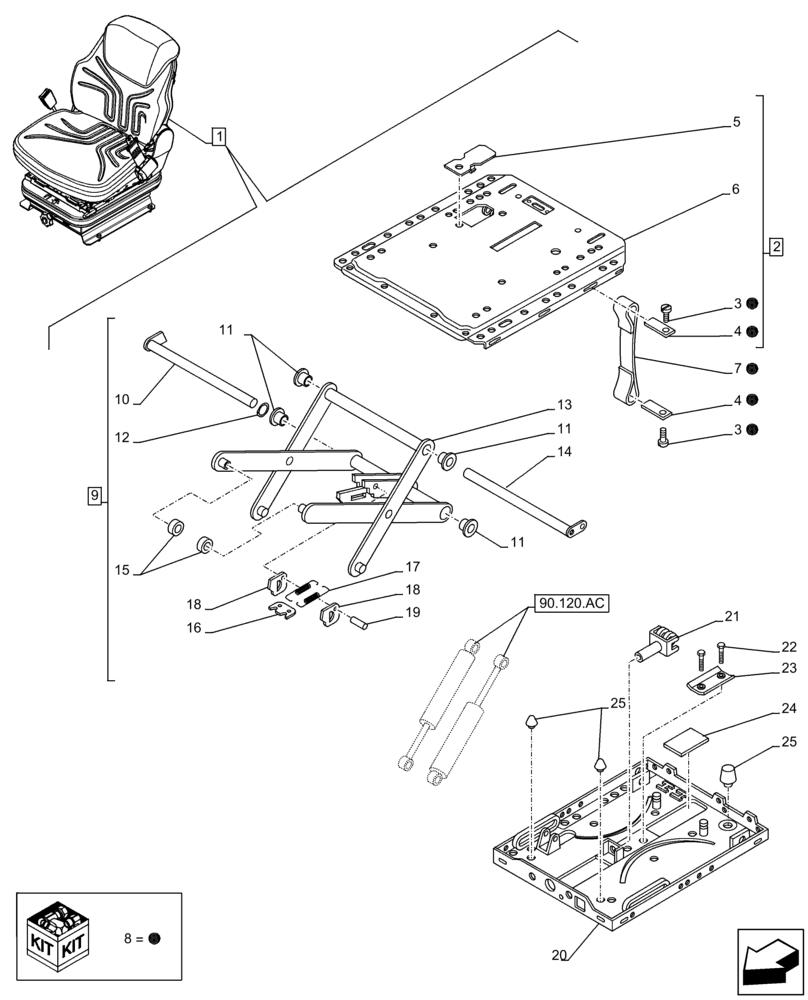

Схема запчастей Case IH FARMLIFT 742 - (90.120.BC) - VAR - 749491 - SEAT, MECHANICAL SUSPENSION, SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
11
25
11
18
17
3
8
1
23
4
18
8
24
22
90.120.ac
16
8
21
19
6
14
8
11
10
12
4
8
9
2
8
13
20
25
15
7
5
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47444279

DRIVER SEAT

ASSY, Incl 2 - 25

1шт.

See Seat Components also in Figures 55.408.BL (01), 90.120.AC, 90.120.AE, 90.120.AF, 90.120.AJ, 90.120.AM, 90.120.AP, 90.120.BA, 90.120.BH, 90.151.AD (01)

1шт.

2

47124776

SUSPENSION

ASSY, Incl 3 - 6

1шт.

3

85817448

RIVET,5mm OD x 10mm L

2шт.

4

85817449

PLATE

2шт.

5

47124772

COVER

1шт.

6

NSS

NOT SOLD SEPARAT

Upper Plate, Incl in 2

1шт.

7

NSS

NOT SOLD SEPARAT

Plate, Incl in 8

1шт.

8

85817447

HANDLE

Kit, Incl 3, 4, 7

1шт.

9

47124783

SUSPENSION

ASSY, Incl 10 - 19

1шт.

10

85817429

PIN

1шт.

11

82035048

BUSHING

4шт.

12

82035127

WASHER,M9

1шт.

13

NSS

NOT SOLD SEPARAT

Swing Frame, Incl in 9

1шт.

14

47124784

BOLT

1шт.

15

9958784

SPACER

4шт.

16

9958782

PLATE

1шт.

17

84171414

TENSION SPRING

2шт.

18

9958792

PLATE

2шт.

19

9958793

BOLT

1шт.

20

NSS

NOT SOLD SEPARAT

Lower Plate, Incl in 1

1шт.

21

82035043

FORK

1шт.

22

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

2шт.

23

9960767

CLIP

1шт.

24

82035032

PLATE

1шт.

25

47124797

BUMPER

1шт.
