(90.124.AN) - VAR - 749490 - SEAT, AIR SUSPENSION, AIR COMPRESSOR, SPRING

Запчасти Case IH FARMLIFT 742 (90.124.AN) - VAR - 749490 - SEAT, AIR SUSPENSION, AIR COMPRESSOR, SPRING (90) - PLATFORM, CAB, BODYWORK AND DECALS

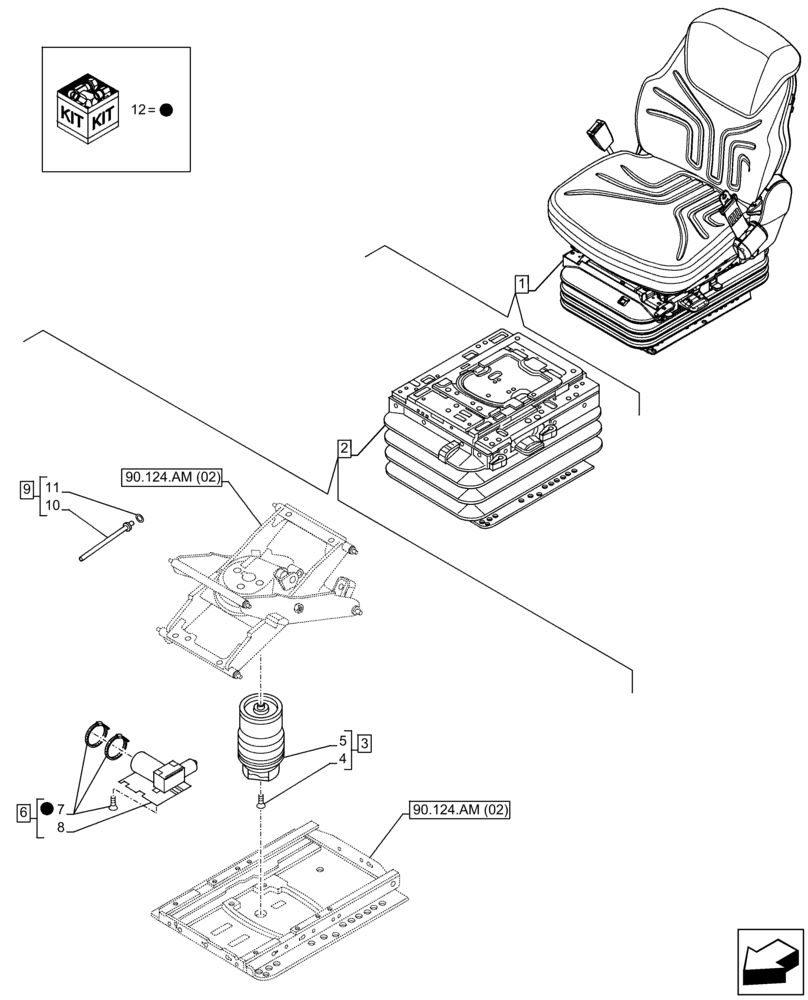

Схема запчастей Case IH FARMLIFT 742 - (90.124.AN) - VAR - 749490 - SEAT, AIR SUSPENSION, AIR COMPRESSOR, SPRING (90) - PLATFORM, CAB, BODYWORK AND DECALS
12
8
2
5
9
10
6
3
90.124.am (02)
1
11
7
12
4
12
90.124.am (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47444280

DRIVER SEAT

ASSY, Incl 2 - 12

1шт.

See Seat Components also in Figures 55.408.BL (02), 55.512.CQ, 90.124.AF, 90.124.AG, 90.124.AH, 90.124.AL, 90.124.AM (01), 90.124.AM (02), 90.124.AP, 90.124.AR, 90.151.AD (02)

1шт.

2

47613384

SUSPENSION

ASSY, Incl 3 - 8

1шт.

3

84190972

SHOCK ABSORBER

ASSY, Incl 4, 5

1шт.

4

84191012

REPAIR KIT

Air Spring Bolts

1шт.

5

NSS

NOT SOLD SEPARAT

Air Spring, Incl in 3

1шт.

6

84190980

AIR COMPRESSOR

ASSY, Incl 7, 8

1шт.

7

84191008

REPAIR KIT

Compressor Bolts

1шт.

8

NSS

NOT SOLD SEPARAT

Compressor, Incl in 6

1шт.

9

84190991

TUBE

ASSY, Incl 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Inner Tube, Incl in 9

1шт.

11

84191016

REPAIR KIT

Inner Tube Clips

1шт.

12

84190975

REPAIR KIT

Wear Parts

1шт.

See Wear Parts Kit Components also in Figures 55.512.CQ, 90.124.AM (02), 90.124.AP, 90.124.AR

1шт.
