(90.120.BH) - VAR - 749372 - SEAT, MECHANICAL SUSPENSION, FRAME

Запчасти Case IH FARMLIFT 935 (90.120.BH) - VAR - 749372 - SEAT, MECHANICAL SUSPENSION, FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

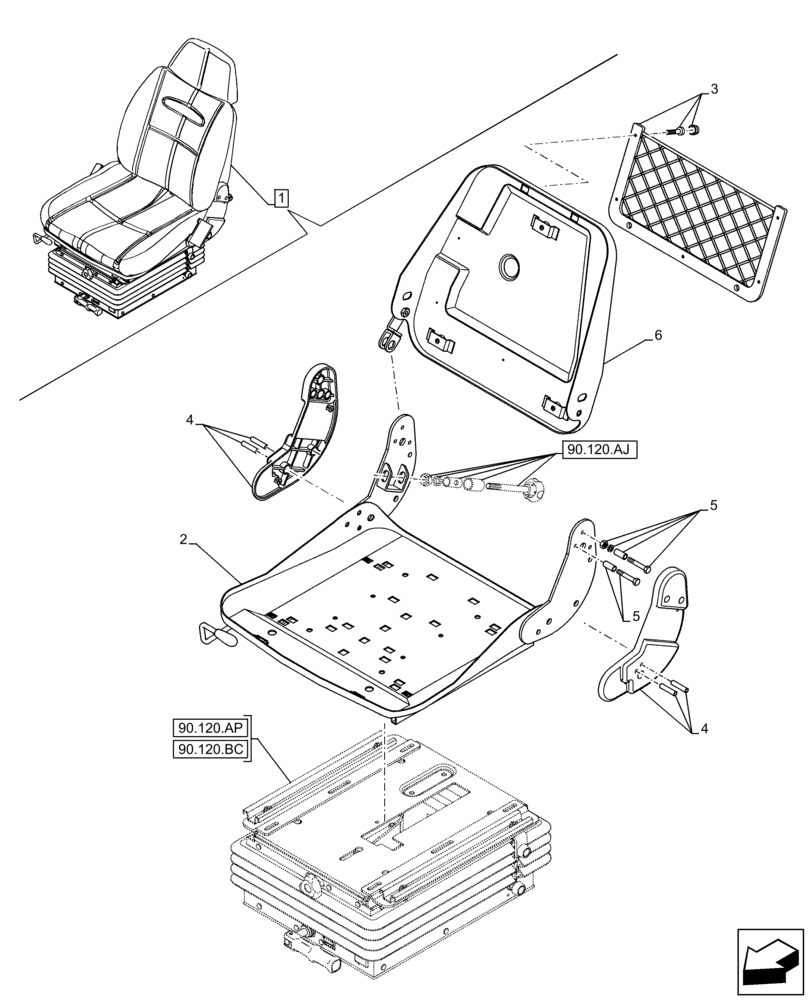

Схема запчастей Case IH FARMLIFT 935 - (90.120.BH) - VAR - 749372 - SEAT, MECHANICAL SUSPENSION, FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
4
3
1
2
90.120.aj
6
5
90.120.bc
5
90.120.ap
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47635531

DRIVER SEAT

ASSY, Incl 2 - 6

1шт.

See Seat Components also in Figures 90.120.AC, 90.120.AE, 90.120.AF, 90.120.AJ, 90.120.AM, 90.120.AP, 90.120.AT, 90.120.BA, 90.120.BC, 90.151.AD (01)

1шт.

2

NSS

NOT SOLD SEPARAT

Cushion Bodywork, Incl in 1

1шт.

3

47520220

NET

1шт.

4

47683201

KIT

Side Cover

1шт.

5

47683094

KIT

Mounting Parts

1шт.

6

NSS

NOT SOLD SEPARAT

Backrest Frame, Incl in 1

1шт.
