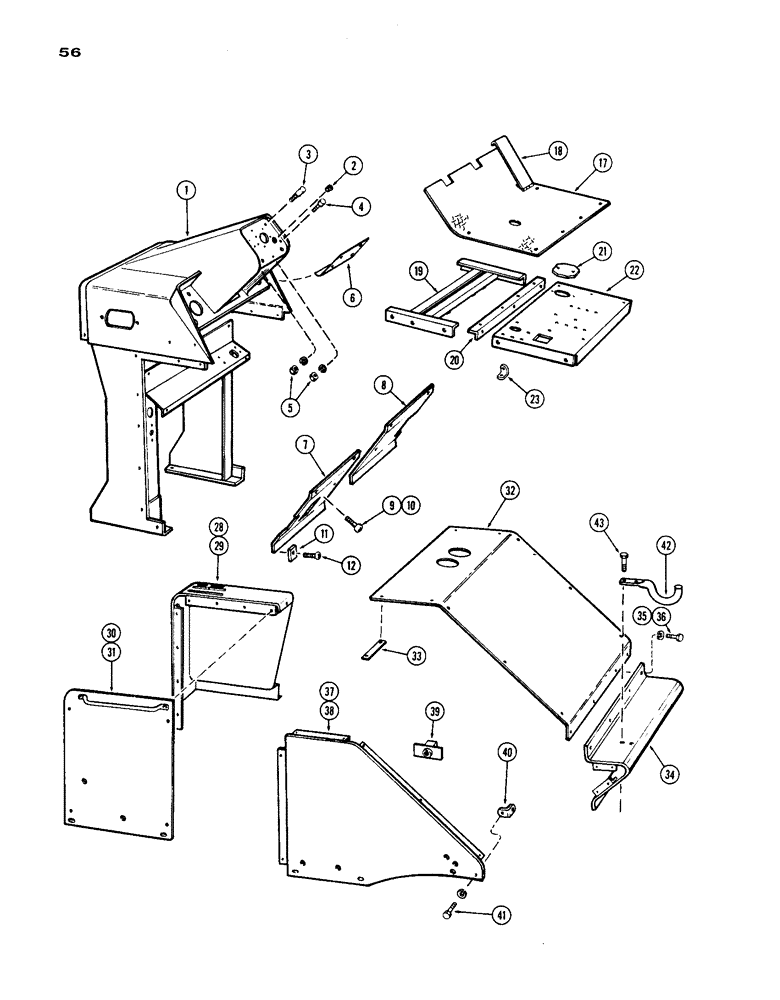

Запчасти Case IH 1200 (056) - COCKPIT, USED PRIOR TO TRACTOR SERIAL NUMBER 9801866 (09) - CHASSIS

1

A55038

COCKPIT - operator's, Includes: Ref. 2 - 5

1шт.

2

A55643

BEARING - throttle & rear steering

2шт.

3

A56508

STOP - idle, hand throttle

1шт.

4

A56509

STOP - hand throttle

1шт.

5

25-104

NUT,1/4"-20, G5

2шт.

A56527

PLUG - cockpit cowl (Not illust.)

1шт.

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex.

5шт.

6

A55039

PLATE - cockpit cover

1шт.

182-86

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- #8 - 32 N.C. pan hd. mach.

7шт.

7

L10258

DEFLECTOR - air, cockpit L.H.

1шт.

8

L10260

DEFLECTOR - air, cockpit R.H.

1шт.

9

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- mach. #10 x 1/2" N.C., rd. hd.

4шт.

10

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - #10 - 24 N.C., pan hd.

3шт.

11

L10259

CLIP - deflector

3шт.

12

187-1312

SCREW - #10 - 24 N.C., pan hd.

3шт.

17

A55566

PLATE - front, platform used prior to tractor s/n 9801866

1шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Platform used prior to tractor S/N 9801866 Hex, 3/8"-16 x 3/4", G5, Full Thd

6шт.

18

A55579

PEDAL ASSY - foot accelerator (See Figure 37), platform used prior to tractor s/n 9801866

1шт.

19

A55573

BRACKET - mtg., clutch & brake pedal, platform used prior to tractor s/n 9801866

1шт.

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Platform used prior to tractor S/N 9801866 Hex, 1/2"-13 x 1 1/4", G5, Full Thd

6шт.

20

A55578

ANGLE - support, rear platform, used prior to tractor s/n 9801866

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Platform used prior to tractor S/N 9801866 Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Platform used prior to tractor S/N 9801866 Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

21

A55572

PLATE - cover, brk. master cyl. inspection, platform used prior to tractor s/n 9801866

1шт.

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Platform used prior to tractor S/N 9801866 Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

22

A55567

PLATFORM - cockpit, rear, used prior to tractor s/n 9801866

1шт.

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Platform used prior to tractor S/N 9801866 Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

23

A16828

SUPPORT

- platform used prior to tractor s/n 9801866

2шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Platform used prior to tractor S/N 9801866 Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

28

A55510

CONSOLE ASSY - cockpit, R.H., used prior to tractor s/n 9801866

1шт.

29

A55511

CONSOLE ASSY - cockpit, L.H., used prior to tractor s/n 9801866

1шт.

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- 1/4" x 5/8" N.C. Phillips hd., console used prior to tractor s/n 9801866

6шт.

30

L10240

COVER - console, R.H., used prior to tractor s/n 9801866

1шт.

31

L10241

COVER - console, L.H., used prior to tractor s/n 9801866

1шт.

L10246

NUT - cage, cover, console used prior to tractor s/n 9801866

1шт.

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- 1/4" x 5/8" N.C., Phillips hd., console used prior to tractor s/n 9801866

12шт.

32

A55528

COVER - fuel tank, console used prior to tractor s/n 9801866

1шт.

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- 1/4" x 5/8" N.C., Phillips hd., console used prior to tractor s/n 9801866

10шт.

33

L10072

BAR - fuel tank cover, console used prior to tractor s/n 9801866

2шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Console used prior to tractor S/N 9801866 Hex, 1/4"-20 x 5/8", G5, Full Thd

4шт.

34

A56475

PLATE - rear platform, console used prior to tractor s/n 9801866

1шт.

35

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Console used prior to tractor S/N 9801866 Hex, 3/8"-16 x 1 1/4", G5, Full Thd

8шт.

36

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- 1/4" x 5/8" N.C., Phillips hd., console used prior to tractor s/n 9801866

1шт.

37

L10243

PLATE ASSY - rear console cover, R.H., used prior to tractor s/n 9801866

1шт.

38

L10244

PLATE ASSY - rear console cover, L.H., used prior to tractor s/n 9801866

1шт.

39

L10246

NUT - cage, cover plate, console used prior to tractor s/n 9801866

5шт.

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- 1/4" x 5/8" N.C., Phillips hd., console used prior to tractor s/n 9801866

4шт.

40

A16832

ANGLE

CLIP - corner, tank cover, console used prior to tractor s/n 9801866

2шт.

41

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Console used prior to tractor S/N 9801866 Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

42

A56501

HANGER - portable cylinder, console used prior to tractor s/n 9801866

2шт.

43

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Console used prior to tractor S/N 9801866 Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.
