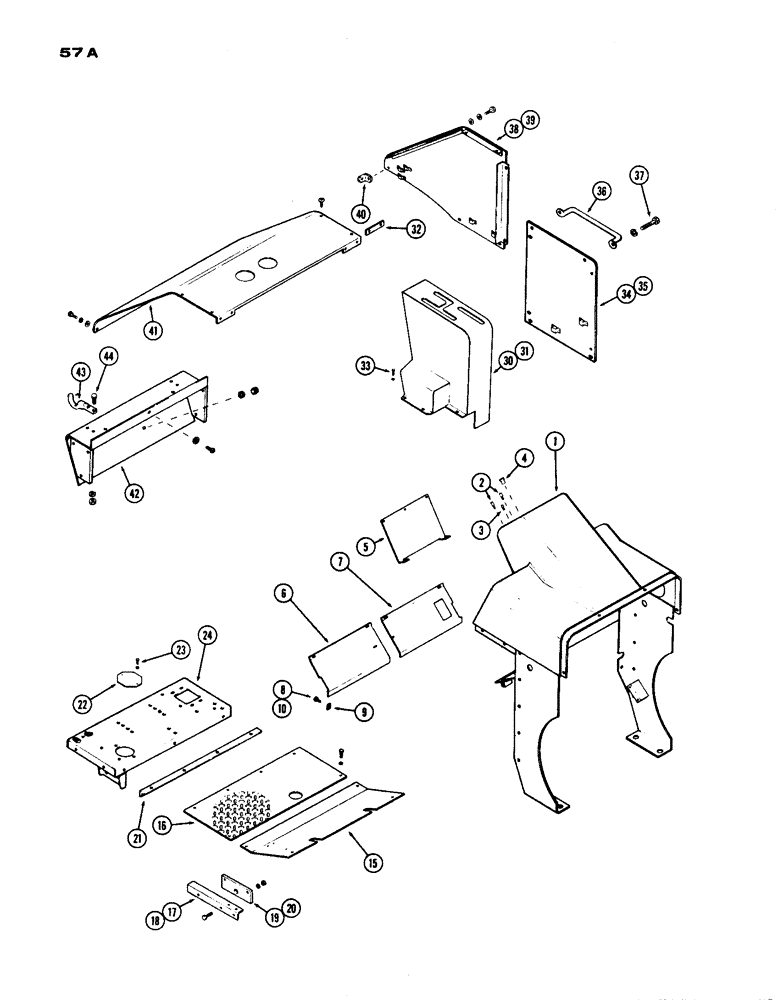

Запчасти Case IH 1200 (057A) - COCKPIT, FIRST USED TRACTOR SERIAL NUMBER 9801866 (09) - CHASSIS

1

L10593

COCKPIT - operator's, Includes: Ref. 2 - 4

1шт.

2

A56509

STOP - hand throttle

2шт.

3

A56508

STOP - idle, hand throttle

1шт.

4

A55643

BEARING - throttle shaft & rear steering

2шт.

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex., 3/8" x 1-1/2" N.C.

3шт.

5

L10604

PLATE - cover, cockpit

1шт.

175-400

SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

- mach., 1/4" x 1/2" N.C., Truss hd.

5шт.

6

L10260

DEFLECTOR - air, cockpit R.H.

1шт.

7

L10258

DEFLECTOR - air, cockpit, L.H.

1шт.

8

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- mach., #10 x 1/2" N.C. rd. hd.

4шт.

9

L10748

CLIP - deflector

3шт.

10

187-1011

SCREW - self-tapping, 1/4" x 3/8" pan head

3шт.

15

L10518

PLATE - front, platform 1st used tractor s/n 9801866

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Platform 1st used tractor S/N 9801866 Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Platform 1st used tractor S/N 9801866 Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

16

L10517

PLATE - middle, platform 1st used tractor s/n 9801866

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Platform 1st used tractor S/N 9801866 Hex, 3/8"-16 x 3/4", G5, Full Thd

6шт.

17

L10514

ANGLE - mtg., L.H. clutch & brake pedal, platform 1st used tractor s/n 9801866

1шт.

18

L10515

ANGLE - mtg., R.H. clutch & brake pedal, platform 1st used tractor s/n 9801866

1шт.

19

L10516

SUPPORT - shaft, clutch & brake pedal, platform 1st used tractor s/n 9801866

2шт.

20

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - set, 5/16" x 1/2" hex. socket hd., platform 1st used tractor s/n 9801866

2шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Platform 1st used tractor S/N 9801866 Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Platform 1st used tractor S/N 9801866 Hex, 1/2"-13 x 1 3/4", G5

4шт.

21

A55578

ANGLE - rear platform support, 1st used tractor s/n 9801866

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Platform 1st used tractor S/N 9801866 Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex., 3.8" x 1" N.C. (Z.P.), platform 1st used tractor S/N 9801866

1шт.

22

A55572

COVER - inspection, master brake cyl., platform 1st used tractor s/n 9801866

1шт.

23

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Platform 1st used tractor s/n 9801866 Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

24

L10697

PLATFORM - rear, 1st used tractor s/n 9801866

1шт.

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

Platform 1st used tractor S/N 9801866 Hex, 1/2"-13 x 3/4", G5, Full Thd

4шт.

30

A55510

CONSOLE ASSY. - cockpit R.H., 1st used tractor s/n 9801866

1шт.

31

L10700

CONSOLE ASSY. - cockpit, L.H., 1st used tractor s/n 9801866

1шт.

32

L10072

BAR - tank cover to console, 1st used tractor s/n 9801866

2шт.

33

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Console 1st used tractor S/N 9801866 Hex, 1/4"-20 x 5/8", G5, Full Thd

10шт.

34

L10240

COVER ASSY. - console R.H., 1st used tractor s/n 9801866

1шт.

35

L10241

COVER ASSY. - console L.H., 1st used tractor s/n 9801866

1шт.

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- mach., 1/4" x 5/8" N.C. rd. hd., console 1st used tractor s/n 9801866

8шт.

36

A56109

HANDLE - tractor mounting, console 1st used tractor s/n 9801866

2шт.

37

175-411

SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- mach., 5/16" x 1" N.C. rd. hd., console 1st used tractor s/n 9801866

4шт.

38

L10243

PLATE ASSY. - rear console & tank cover R.H., 1st used tractor s/n 9801866

1шт.

39

L10244

PLATE ASSY. - rear console & rank cover L.H., 1st used tractor s/n 9801866

1шт.

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- mach., 1/4" x 5/8" N.C. rd. hd., console 1st used tractor s/n 9801866

4шт.

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Console 1st used tractor S/N 9801866 Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

40

A16832

ANGLE

CLIP - corner, console and tank cover, 1st used tractor s/n 9801866

2шт.

41

A55528

COVER - fuel tank, console 1st used tractor s/n 9801866

1шт.

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- mach., 1/4" x 5/8" N.C., rd. hd., console 1st used tractor s/n 9801866

10шт.

42

L10703

COVER - rear lower tank, console 1st used tractor s/n 9801866

1шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex., 3/8" x 1" N.C. (Z.P.), console 1st used tractor S/N 9801866

6шт.

43

A56501

HANGER - portable cylinder, console 1st used tractor s/n 9801866

2шт.

44

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Console 1st used tractor S/N 9801866 Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.
