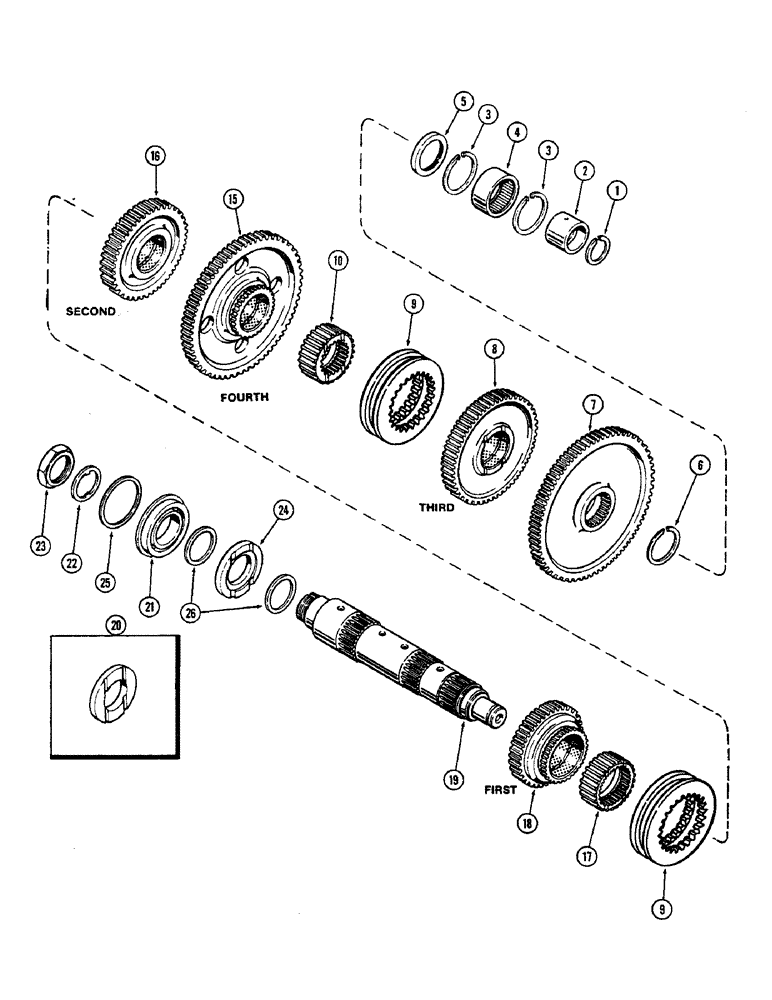

Запчасти Case IH 2470 (230) - INTERMEDIATE SHAFT (06) - POWER TRAIN

1

A7611

SNAP RING,#175, Ext

Ring, Snap, , inner needle bearing race #175, Ext

1шт.

2

A75126

RING RACE

RACE - sliding collar shaft inner needle bearing

1шт.

3

A76298

SNAP RING,#300, 3.222", Int

RING - snap, front needle bearing

2шт.

4

H748087

NEEDLE BEARING,Needle, 63.78mm ID x 76.2mm OD x 38.1mm W

BEARING - needle, sliding collar shaft, front

1шт.

5

A75127

OIL SEAL

- oil, front needle bearing

1шт.

6

A58234

SNAP RING,#237, 2.295", Ext

RING - snap, drop driven gear retainer

1шт.

7

A76703

GEAR

- driven, 77 teeth (Replaces A77231)

1шт.

8

A77091

GEAR WHEEL

GEAR ASSEMBLY - third gear, 56 teeth (with bushing)

1шт.

9

A138190

COLLAR

- sliding, shifting (Replaces A76692)

2шт.

10

A77230

HUB

- splined pinion, 30 teeth (Third and fourth)

2шт.

15

A152210

GEAR

ASSEMBLY - drive, 88 and 30 teeth (Fourth) With bushing (Order A155350)

1шт.

Ref. 15A - A77092 4th driver 73 & 30 Tooth

1шт.

16

A77093

GEAR

ASSEMBLY - drive, 47 teeth (Second) With bushing

1шт.

17

A77229

HUB

- splined pinion, 30 teeth (First and second)

1шт.

18

A150606

GEAR

ASSEMBLY - drive, 36 and 30 teeth (First) With bushing (Order A153677)

1шт.

19

A77232

SHAFT

- intermediate

1шт.

20

A75133

SPACER

- driven shaft, rear (Prior to transmission serial no. 10121045)

1шт.

See figure 232 for end-play kit.

1шт.

21

T29721

BALL BEARING,2.165" ID x 3.937" OD x 0.827"

BEARING - driven shaft, rear

1шт.

22

A63157

THRUST BEARING,1.955" ID x 2.562" OD x 0.12"

WASHER - driven shaft rear bearing

1шт.

23

A75134

NUT

LOCKNUT - driven shaft rear bearing

1шт.

24

A150211

SPACER

- C - shaft, rear (Transmission serial no. 10121045 and after)

1шт.

25

A150445

SPACER

- bearing (Transmission serial no. 10121045 and after) 3-19/32 x 3-27/32 x 1/32" (91.28 x 97.63 x 0.79 MM)

1шт.

26

A150203

SHIM

- 2-11/64 x 2-3/4 x 1/64" (55.16 x 69.85 x 0.39 MM)

1шт.
