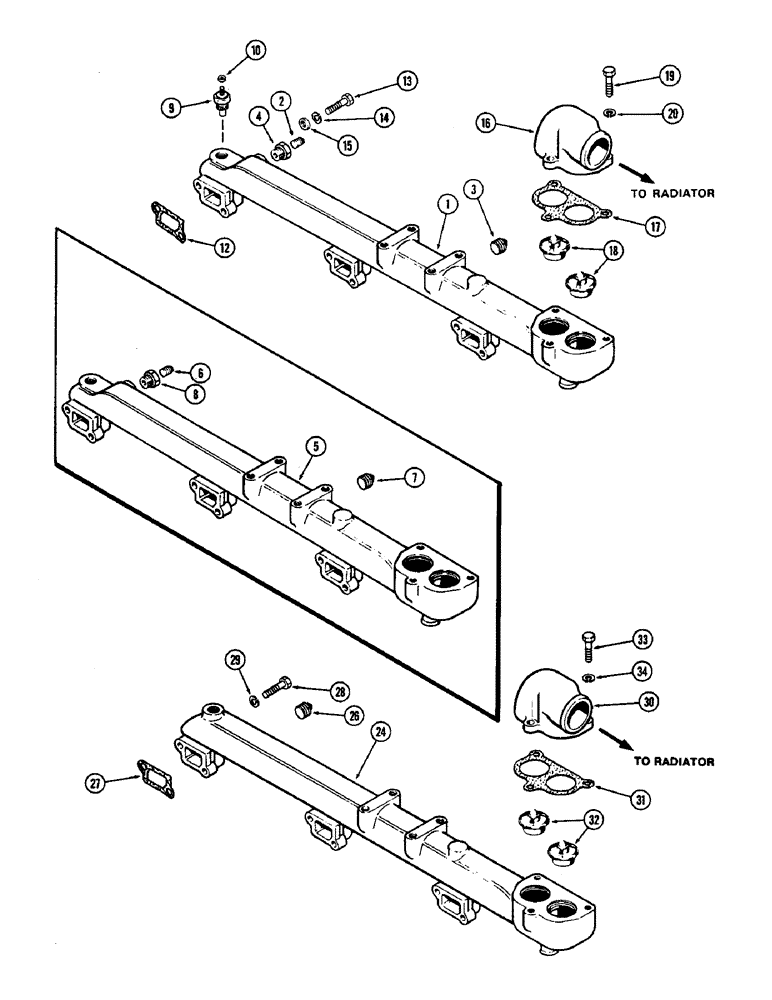

Запчасти Case IH 2470 (008) - WATER MANIFOLD AND THERMOSTAT, 504BDT DIESEL ENGINE (02) - ENGINE

ANSS

MANIFOLD ASSEMBLY - (Engine serial no. 10155549 and after) (Order components), Includes: Ref. 1 - 4

1шт.

1

A152742

MANIFOLD

- water

1шт.

2

221-1843

PLUG

- 3/8" PT hex. socket head

1шт.

3

221-1844

PLUG,Hex Soc, 1/2"-14

- 1/2" PT hex. socket head

1шт.

4

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer, 3/8" to 1/2" hex.

1шт.

NSS

NOT SOLD SEPARAT

MANIFOLD ASSEMBLY - (Prior to engine serial no. 10155549) (Order components), Includes: Ref. 5 - 8

1шт.

5

A152742

MANIFOLD

- water

1шт.

6

221-1843

PLUG

- 3/8" PT, square head

1шт.

7

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - 3/4" PT, hex. socket head

2шт.

8

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

BUSHING - reducer, 3/4" to 3/8" hex.

1шт.

9

A61787

TRANSMITTER

UNIT - temperature sending

1шт.

10

193-1000

NUT,Keps, w/LW,#10-32

- #10 NF hex., Keps

1шт.

12

A58637

MANIFOLD GASKET

- water manifold

3шт.

13

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8 x 2" NC hex., grade 5

6шт.

14

92-6

LOCK WASHER,3/8"

6шт.

15

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16" (Engine serial no. 10012911 and after)

6шт.

16

A60689

HOUSING

- thermostat

1шт.

17

A58639

GASKET

- thermostat housing

1шт.

18

A57641

THERMOSTAT

- 180 degrees F (82 degrees C)

2шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

20

92-6

LOCK WASHER,3/8"

3шт.

24

A58909

MANIFOLD

- water (Order A152742, 221-1843, 221-1844 and 221-1089), cast iron

1шт.

26

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - 3/4" PT hex. socket head, cast iron

3шт.

27

A58637

MANIFOLD GASKET

- water manifold, cast iron

3шт.

28

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" NC hex., cast iron

3шт.

28

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8 x 2" NC hex., grade 5, Cast iron

3шт.

29

92-6

LOCK WASHER,3/8"

cast iron 3/8"

6шт.

30

A60689

HOUSING

- thermostat, cast iron

1шт.

31

A58639

GASKET

- thermostat housing, cast iron

1шт.

32

A57641

THERMOSTAT

- water manifold 180 degrees F (82 degrees C), cast iron

2шт.

33

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Cast iron Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

34

92-6

LOCK WASHER,3/8"

cast iron 3/8"

3шт.
