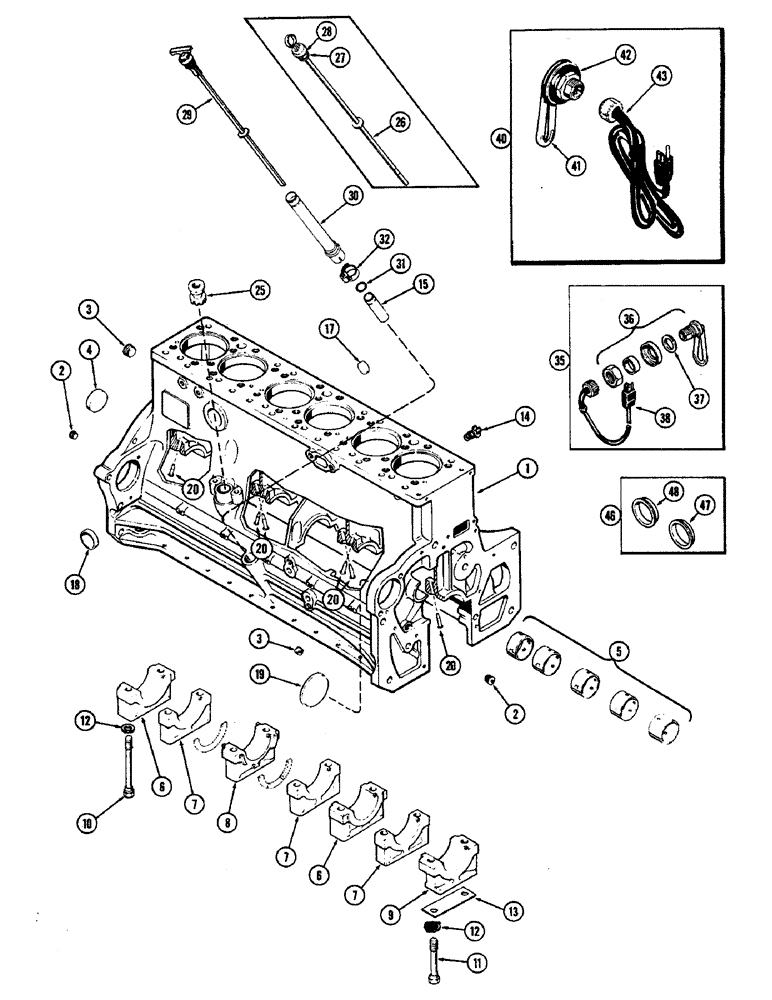

Запчасти Case IH 2470 (040) - CYLINDER BLOCK, 504BDT DIESEL ENGINE (02) - ENGINE

A46038

CRANKCASE

BLOCK ASSEMBLY - short (Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, camshaft and bushings, timing gears and push rod lifters) (Casting no. A66527), Includes: Ref. 1 - 20

1шт.

1

A44077

CRANKCASE

BLOCK ASSEMBLY - stripped (Casting no. A66527), Includes: Ref. 2 - 20

1шт.

2

221-1843

PLUG

PLUG - oil gallery, 3/8" PT hex. socket head

4шт.

3

221-1849

PLUG

PLUG - oil gallery, 1/8" PT hex. socket head

6шт.

4

A24361

PLUG

PLUG - camshaft hole, 2-3/8" (60.33 MM) Cup

1шт.

5

REF

INSTRUCTION

BUSHING - camshaft (See figure 38)

1шт.

6

A154398

BEARING CAP

CAP - main bearing, wide (Replaces A58562)

2шт.

7

A154397

BEARING CAP

CAP - main bearing, narrow (Replaces A58563)

3шт.

8

A154395

CAP

CAP - main bearing, thrust (Replaces A58564)

1шт.

9

A154396

BEARING CAP

CAP - main bearing, front (Replaces A63902)

1шт.

10

A66948

STEP BOLT

BOLT - 5/8 x 5" NC, special, grade 8

10шт.

11

A66949

STEP BOLT

BOLT - 5/8 x 7-1/4" NC, special, grade 8, bearing cap to oil pump

2шт.

12

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - 21/32 x 1 x 1/8" (16.67 x 25.4 x 3.17 MM)

14шт.

13

A58859

SHIM,.005" Thk

SHIM, , Oil pump to front brg. cap (0.127 mm) .005" Thk

1шт.

14

A23656

COCK, DRAIN

VALVE - drain, water

1шт.

15

A34540

TUBE

TUBE - oil filler

1шт.

17

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - 1-3/8" (34.93 MM) Cup

3шт.

18

A58569

PLUG,Cup, 2", Stainless

PLUG - 2" (50.8 MM) Cup

1шт.

19

41-1052

PLUG,Cup, 3 1/4"

PLUG - 3-1/4" (82.55 MM) Cup

1шт.

20

A63903

NOZZLE CAP

NOZZLE - piston oil cooling

6шт.

25

A34266

DRIVE

DRIVE - tachometer

1шт.

26

A75307

DIPSTICK

DIPSTICK ASSEMBLY - push type, 23.45" long (Order A138327), Includes: Ref. 27 and 28

1шт.

27

A45297

SPRING

O-RING - 47/64" x 1" x 1/8" (18.65 x 25.4 x 3.18 MM)

1шт.

28

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

O-RING - 3/4" x 15/16" x 3/32" (19.05 x 23.81 x 2.38 MM)

1шт.

29

A138327

DIPSTICK

DIPSTICK ASSEMBLY - (Screw type), 21.98" long

1шт.

30

A65778

TUBE

TUBE - oil filler extension

1шт.

31

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

O-RING - tube, oil filler, 1-1/8" x 1-3/8 x 1/8" (28.58 x 34.93 x 3.18 MM)

1шт.

32

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4" (30.16 to 44.45 MM)

1шт.

35

A155436

RESISTOR

HEATER ASSEMBLY - cylinder block, Includes: Ref. 36 - 38

1шт.

Subs to three different P/N's, depending on the use. A182017 and A182020 fit in a frost plug hole approximately 1-7/8" diameter. A182059 has a 1" thread.

1шт.

36

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Orde A155436), block

1шт.

37

A45114

GASKET

GASKET - element, block heater

1шт.

38

A44813

CABLE EXTENSION

CORD ASSEMBLY - heater, 12" long (304.8 MM), block

1шт.

40

NSS

NOT SOLD SEPARAT

HEATER ASSEMBLY - block (Order A155436), Includes: Ref. 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order A44812), block

1шт.

42

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

O-RING - 1-3/4" x 2" x 1/8" (44.45 x 50.8 x 3.18 MM), block heater

1шт.

43

A44813

CABLE EXTENSION

CORD - heater, with plugs (Replaces A42297), block

1шт.

46

A44006

SLEEVE

SLEEVE KIT - heater installation, block, Includes: Ref. 47 and 48

1шт.

47

NSS

NOT SOLD SEPARAT

SLEEVE - for 2-1/16" (52.39 MM) Hole, block heater

1шт.

48

NSS

NOT SOLD SEPARAT

SLEEVE - for 2-1/8" (53.97 MM) Hole, block heater

1шт.

AR77825

REMAN-BASIC ENGINE

ENGINE (EXCHANGE) basic reman, after S/N 2556252, engine, N.A. Only

1шт.

AC77825

CORE-ENGINE

Return Number, N.A. Only

1шт.
